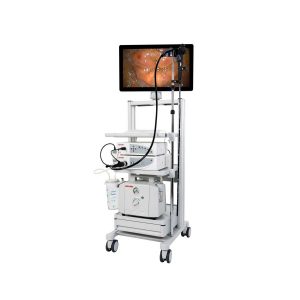

Endomed Video Gastrointestinal Endoscopy Stack

Description

Endomed Video Gastrointestinal Endoscopy Stack

**HD Digital Video Processor EVP 21-16

Features:
The Video Processor EVP 21-16 is designed for the use in endoscopic examinations. It is an image processing unit and performs all functions of camera control, image detection, image processing, image optimization, control of the video display as well as operation controls of the user interface.

Various parameters of the video display functions can be adjusted using the On Screen display. Some functions are directly accessible using short-cut buttons placed on the front side of the unit. User profiles and personal data of patients can be stored on the processor and the data is able to be exported with a USB device.

Technical Specification:

• Digital Video Interface – DVI-I
• Analogue Video Interface – S-video (Y/C); FBAS (Composite), RGB
• Interface – USB, LAN, RS232
• Enhancement – Adjustable (3-steps)
• Color Adjustment – Red/Blue Intensity Can Be Adjusted Individually
• On-Screen Information – Date, Time, Patient‟s Data, Doctors Name
• Internal Image Storage – Image Can Be Exported via LAN or USB
• Automatic Brightness Control – Peak And Average Adjustment
• Zoom – Digital Zoom (2-steps)
• Data Management – 60 Patient Profiles,15 User Profiles

**21” High Definition (HD) Medical Grade Monitor ENM 20-211

The ENM-20 monitor series are ideal for Endoscopy. With front IP65 protection, these screens put their strengths to work wherever hygiene is of the utmost importance. The FHD and 4K resolution, brilliant color reproduction and optional touch panel make these monitors perfect solution for Endoscopy. And with the high contrast and good panel brightness, the screens fulfill all technical requirements to ensure perfect picture and data reproduction.

Display:

• Size/Diagonal – 21”
• Active Screen – 386X311mm (Horizontal X Vertical)
• Resolution – 1920X1080 Pixels
• Colours – 16.7 Millions (RGB 8Bit)
• Viewing Angle – 89° / 89° (Horizontal/Vertical) Typical

Inputs:

• DVI – DVI-I,
• VGA – RGBHV,
• Remote-control – RS232,
• CVBS (Optional) – CVBS (PAL/NTSC/SECAM),
• S-Video (Optional) – Y/C (MiniDIN) (PAL/NTSC/SECAM),
• Operator Control Elements – OSD Menu and 5 Buttons

**LED High Intensity Xenon Light Source ELS 21-18

Features:
The ELS 21-18 is a modern high intensity Xenon-Light source with integrated insufflation pump and main applications are for gastroscopy and colonoscopy and in related procedures. The light source is available with adapters for flexible endoscopes of different manufacturers.

A powerful xenon glow-discharged lamp is the centrepiece of the unit. The lamp is fixed in a reflector, so that a calibration won‟t be necessary. The colour temperature of 6000° Kelvin is equal to the colour temperature of daylight. A mechanical diaphragm is used to adjust the output intensity without any influence on the colour temperature.

The integrated pump delivers air pressure for both insufflating and rinsing. For emergency, there is a 150 Watt Halogen light source built in. This light source is switched on automatically, when the main lamp went off during work for more the 15 seconds. Video Endoscope C2G10, designed for Gastroscopic examinations. The video chain can provide high quality images.

Technical Specification:

• Light Source – 180 or 300 Watt Xenon
• Back Up Lamp – 150 Watt Halogen
• Brightness Control – Adjustable (15 Steps)
• Color Temperature – 6000/6500 Kelvin
• Air Insufflation – Adjustable (2 Steps)
• Lamp Life – 500 Hours

**Suction Pump VACO SP120

Feature:

The suction pump VACO SP120 is dedicated to endoscopic procedures. It is equipped with a special system of noise and vibration dampening for an extremely quiet and smooth operation, with an incredibly low noise level of 39.4 dB. This pump is a maintenance-free, reliable and vibration-free device. The main case  is made of very sturdy, unbreakable, fire retardant material while the pump body itself is made of aluminum alloy. The product is cooled down with an extra fan and designed to run countinuously. The colour coded gauge enables a safe vacuum management. The pump is equipped with overflow protection and a safety vacuum regulator.

Technical Specification:

**EVG 21-28 Video Gastroscope

Feature:
The Video Endoscope EVG 21-28, is designed for Gastroscopic examinations. The control body is made of special aluminum alloy which is light weight and protective against any damages with long life ceramic coating. The video chain can provide a FULL HD images. Three Remote Switches located on the Endoscope control body are programmable to trigger various video processor functions.

Technical Specification:

• Length – 1030 mm
• Ø insertion tube – 9,8 mm
• Ø instrument channel – 2,8 mm
• Bending section – U 210°, d 90°, r/l 100°
• Field of view – 140°
• Direction of view – 0°
• Depth of field – 3 – 100 mm

**High-End Trolley
Feature:

• Doors and rear panel in order to protect valuable equipment
• Main on/off switch
• Power columns for cables
• Endoscope Holder
• Variable height support arms
• Conductive rolls
