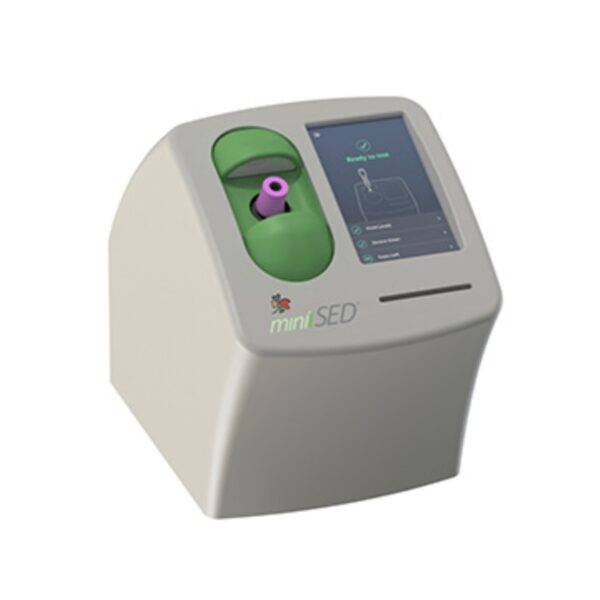

Alcor miniiSED Automated ESR Analyzers

Ask for Price$0.00

Shipped From Abroad

The miniiSED is the newest addition to the ALCOR family of Erythrocyte Sedimentation Rate (ESR) analtzer from ALCOR Scientific.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

SF10335601301
Brands:: Alcor

Description

The miniiSED is the newest addition to the ALCOR family of Erythrocyte Sedimentation Rate (ESR) analtzer from ALCOR Scientific. The miniiSEd measurement of ESR is fast, accurate and unaffected by variable association with traditional methodologies, such as hematocrit.



Features:
  • STAT results in only 15 seconds
  • Fully automated from primary EDTA tubes
  • 100µL sample volume
  • No exposure to patient sample
  • Ideal compact size
  • High correlation to Westergren method
  • Easily interfaces to LIS
Technical Specification:

Principle of Measure: Photometrical rheoscope

Analytical Range: 1-130 mm/hr

Sample Requirements: 100µL whole blood (500µL dead volume)

Tube Requirements: 13 x 75 mm, test tube in EDTA anti-coagulant, capped

Quality Control: Barcoded Seditrol QC

Barcode Reader: Internal

Interface Specifications: RJ-45 Ethernet for LIS connection

Weight: 4.445 kgs / 9.8 lbs

Dimensions (H x W x D): 24 x 18 x 26 (cm) /9.5 x 7.1 x 10.4 (in)

Voltage: 100-240VAC

Frequency Range: 50-60 Hz

Power: 60W

Click Here To Download Catalogue
