Oxygen Flow Meter

Brands: Medbirlesim

~~$0.00~~

Shipped From Abroad

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Sku:

SF1033560130175-9

Brands:: Medbirlesim

Description
Reviews (0)

Description

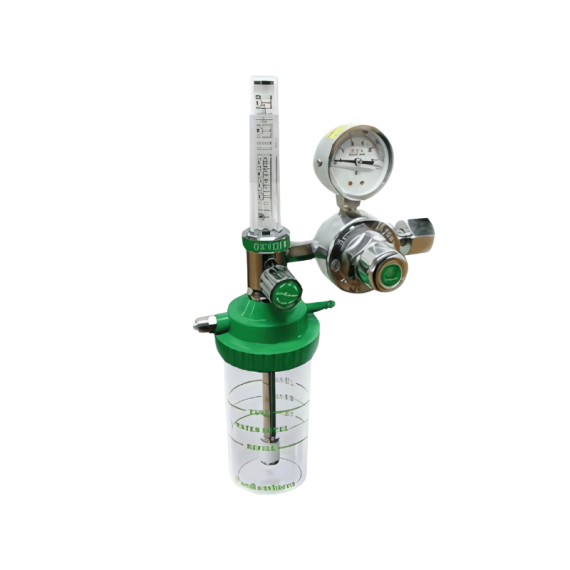

Oxygen Flowmeters (Cylinder Connected Type):
– Pressure Regulator
Max input pressure: 315 Bar
Output Pressure: 4/5 Bar
– Gauge for Input Pressure
– 0-15 Lt/min Adjustable
– Humidifier Jar (200cc) – Autoclavable
or
Hose Barb Output
– Cylinder Connections
5/8″ BSP Cylinder Connection
3/4″ Female Cylinder Connection

Available Versions:
– Single Flowmeter with single Pressure Regulator
– Twin Flowmeter with single Pressure Regulator

Reviews

There are no reviews yet.

Be the first to review “Oxygen Flow Meter”

Quick Comparison

Oxygen Flow Meter remove Bistos BT- 740 Patient Monitor remove Render SD-H3000C Transport/Portable Ventilator remove Bistos BT- 410 Medical Head Lamp remove Bistos BT-770-12.1" Touchscreen Patient Monitor remove Bistos BT- 720 Patient Monitor remove

Name Oxygen Flow Meter remove Bistos BT- 740 Patient Monitor remove Render SD-H3000C Transport/Portable Ventilator remove Bistos BT- 410 Medical Head Lamp remove Bistos BT-770-12.1" Touchscreen Patient Monitor remove Bistos BT- 720 Patient Monitor remove


SKU SF1033560130175-9 SF1033560059-9 SF1033560011-24 SF1033560059-6 SF1033560059-1 SF1033560059-8

Rating

Price

~~$0.00~~

Stock

Availability

Add to cart

Description

Shipped From Abroad

Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad Bistos BT - 740 Patient Monitor: Bistos Patient Vital Signs Monitor, ECG, Resp., SpO2, NIBP, Temp., BT-740. The Bistos BT-740 is a multi-parameter patient monitor with an 8.4" TFT Color screen. The standard paramaters are ECG, respiratory, SpO2, NIBP and temperature. Additional options are EtCO2, IBP, Multi-gas, CO and Masimo SpO2. The BT-740 has a fanless design for quiet operation. Delivery & Availability: Typically 7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad

Compact, Portable, design for emergence transport;
Convenient to set Ventilation mode and parameters;
Airway press wave and multi-parameter monitoring, view patient’s status clearly;
Power supply: AC, DC from ambulance, Battery;
Multi-function hang-stand, convenient for ambulance and transfer beds.

Delivery & Availability: Typically 21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from abroad Bistos BT- 410 Medical Head Lamp - Head-worn light BT-410 provides not only comfortable wear but also convenient for use during examinations or operations. - Ultra bright LED light with High density LED - Easy to adjust head strap & an angle - Extensive LED lifetime (more than 50,000 hours) - More than 4 hours of continuous use - An additional astral LED lamp (optional) - Attachable loupe (optional) Delivery & Availability: Typically 7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad The Bistos BT-770 patient monitor is equipped with a 12.1" touchscreen display, which allows for an easy operation and readability with a powerful rechargeable battery guaranteeing a continuous operation of 5 hours to monitor ECG, SpO2, NIBP, temperature and respiration Delivery & Availability: Typically 14 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from abroad Bistos BT - 720 Patient Monitor: Bistos Portable Patient Vital Signs Monitor, SpO2, Pulse, *NIBP, BT-720. The Bistos BT-720 is a compact size vital signs monitor with the standard parameters of SpO2 and Pulse. You can also add the NIBP and/or Masimo SpO2 at an additional cost. The BT-720 has a 4.3" color touch screen The PC software allows the vital signs information to be transferred and analyzed on a computer. Delivery & Availability: Typically 7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Content

Oxygen Flowmeters (Cylinder Connected Type): – Pressure Regulator Max input pressure: 315 Bar Output Pressure: 4/5 Bar – Gauge for Input Pressure – 0-15 Lt/min Adjustable – Humidifier Jar (200cc) – Autoclavable or Hose Barb Output – Cylinder Connections 5/8″ BSP Cylinder Connection 3/4″ Female Cylinder Connection Available Versions: – Single Flowmeter with single Pressure Regulator – Twin Flowmeter with single Pressure Regulator

Bistos BT - 740 Patient Monitor: Bistos Patient Vital Signs Monitor, ECG, Resp., SpO2, NIBP, Temp., BT-740. The Bistos BT-740 is a multi-parameter patient monitor with an 8.4" TFT Color screen. The standard paramaters are ECG, respiratory, SpO2, NIBP and temperature. Additional options are EtCO2, IBP, Multi-gas, CO and Masimo SpO2. The BT-740 has a fanless design for quiet operation. Features:

8.4" TFT Color Screen - (Optional Touch Screen Upgrade)
Standard parameters are ECG, Resp., SpO2, NIBP, Temp.
Ultra-low power consumption
Quiet operation
High accuracy SpO2 reading
Data transfer or firmware upgrade via USB
2 Years Manufacturer's Warranty

Technical Specifications:

Model		BT-740
Display		8.4" Color TFT Screen
ECG	Lead type	3/5 Lead
	Gain Selection	x0.25, x0.5, x1, x2, x4, auto
	Sweep speed (mm/s)	12.5, 25, 50
	Bandwith:(Diagnostic Mode)	0.05-130Hz
	Monitoring Mode	0.5-40Hz
	Surgery Mode	1-25Hz
	Strong Mode	5-20Hz
	Heart Rate Range (bpm)	Adult:15-300
	Heart Rate Range (bpm)	Pediatric/neonate: 15-350
Respiration	Method	Trance-thoracic Impedance
	Measurement Range	0-120rpm
	Sweep Speed (mm/s)	6.25, 12.5, 25
SpO2	Measurement Range	0-100%
	Accuracy (70-100%)	Adult/Pediatric	+/-2%
	Accuracy (70-100%)	Neonate	+/-3%
	Accuracy (0-69%)	Unspecified
	Perfusion Index	0.05-20%
Pulse Rate	Range (bpm)	25-250bpm
NIBP**	Method	Automatic (Oscillometric)
	Operation Mode	Manual/Auto/STAT
	Parameter	Systolic, Diastolic, Mean
	Systolic Range (mmHg)	Adult	40-270
		Pediatric	40-200
		Neonate	40-130
	Diastolic Range (mmHg)	Adult	10-210
		Pediatric	10-160
		Neonate	10-90
	Mean Range (mmHg)	Adult	20-230
		Pediatric	20-175
		Neonate	20-100
Temperature	Range	0-50°C
Temperature	Parameter	T1, T2 and TD
IBP"	Channel	2 Channel, 4 Channel
IBP"	Range (mmHg)	-50-400
Printer*	Type	Thermal dot array
	Print Speed (mm/s)	12.5, 25, 50
	Paper Size (mm)	50
CO2*	Sidestream	Masimo ISA / Bistos
CO2*	Mainstream	Masimo IRMA / Bistos
Multi-gas O2*		Masimo ISA
SpO2 Masimo*		Masimo SpO2
CO*	Method	Thermodilution
CO*	Range	0.2-20 L/min
Battery	Type (Capacity)	Li-ion (440mAh)
	Run Time	6 hour
	Charging Time	4 hour
Interface		RJ45, USB, Nursing Call
Warranty		2 Years

Click Here To Download Catalogue

Features:

Compact, Portable, design for emergence transport;
Convenient to set Ventilation mode and parameters;
Airway press wave and multi-parameter monitoring, view patient’s status clearly;
Power supply: AC, DC from ambulance, Battery;
Multi-function hang-stand, convenient for ambulance and transfer beds.

Technical Specifications:

Model NO. - SD-H3000C

Type - Ventilator

O2 Concentration - 21%-100%

Use for - ICU Operating Room

Tidal Volume - 0-2000ml

Min Tidal Volume - 50-1500ml

I:E - 5.0:1~1:5.0

Peep - 0-40cm H2O

Certification - CE, FDA, ISO13485

LCD Display - With LCD Display

Kind - Transport Ventilator

Group - Adult, Children

Trademark - RENDER

Origin - China

HS Code - 9018907000

Click Here To Download Catalogue

Bistos BT- 410 Medical Head Lamp - Head-worn light BT-410 provides not only comfortable wear but also convenient for use during examinations or operations. - Ultra bright LED light with High density LED - Easy to adjust head strap & an angle - Extensive LED lifetime (more than 50,000 hours) - More than 4 hours of continuous use - An additional astral LED lamp (optional) - Attachable loupe (optional). Features: Illumination Uniformity:

Multi-lens structure ensures high level of uniform luminance in its light spot.

Coaxial Design:

Light source is located between two eyes is able to cast least shadow on the surface.
Also, the luminance angle moves freely with pivot joint structure.

Interchangeable Battery:

Rechargeable battery is interchangeable. With additional battery, no need to worry anymore about remaining power.

Technical Specifications: Model - (BT - 410) Order code - 410F Illumination - (Standard - 15,000 - 30,000 lx) Adjustable Illumination - Yes Illumination Uniformity - High Adjustable Light Spot - No Light Spot Size (at 300mm) - 70mm Astral Lamp - No Color Temperature - 6,000 K LED Life Time - Appox. 50,000 hour Loupe: Type - Single Lens Magnification - 2 x Battery: Type - Lithum-ion Capacity - 3.7V / 2,200 mAh Run time - 4 hour Charging time - 4 hour Weight - 190 g Band Size - (540 - 640mm) Warranty - 1 year

Click Here To Download Catalogue

Bistos BT-770 is a 12.1" touchscreen patient monitor designed for easy operations. SPECIFICATIONS

12.1“ color TFT touch screen
ECG, Resp., SpO2, NIBP, Temp., CO2, IBP, Multi-gas, C.O., Masimo SpO2
Precise ECG measurement with pacemaker detection ST segment and 16 types of arrhythmia analysis Double overpressure protection for NIBP Intelligent cuff inflation pressure adjustment
Smart Hook/Stand design, provide multiple placement modes Plug & Play Modular IBP& C.O., Modular Printer Multiple configuration options: 4-channel IBP, CO2, invasive C.O., Multi-gas Over 5 hours continuous working on battery 12-15V wide range DC input, suitable for ambulance Capable to connect with central monitoring system HL7 export to clinical information systems (option)

Click Here To Download Catalogue

Bistos BT - 720 Patient Monitor: Bistos Portable Patient Vital Signs Monitor, SpO2, Pulse, *NIBP, BT-720. The Bistos BT-720 is a compact size vital signs monitor with the standard parameters of SpO2 and Pulse. You can also add the NIBP and/or Masimo SpO2 at an additional cost. The BT-720 has a 4.3" color touch screen The PC software allows the vital signs information to be transferred and analyzed on a computer. Features:

3" color touch screen
Standard Confirgurations: SpO2 and Pulse
Optioal NIBP and Masimo SpO2
Short/long trend graphic/trend table display
Audio and visual alarm, adjustable alarm limit
Automatic brightness adjustment
Accurate SpO2 reading during motion or low perfusion
Perfusion index data / bar graphic display
Pitch tone variation for pulse rate
Internal memory for data storage
SD card for easy software upgrade
Over 8 hours of operation with the re-chargeable li-ion battery
PC software for data review and analysis on a computer

Technical Specifications:

Model			BT-720
Display			4.3" Color LCD Touch Screen
SpO2	Measurement Range		0-100%
	Accuracy (70-100%)	Adult/Pediatric	+/- 2%
	Accuracy (70-100%)	Neonate	+/- 3%
	Accuracy (0-69%)		Unspecified
	Perfusion Index		0.05-20%
Pulse Rate	Range (bpm)		25-250
NIBP* (Optional)	Method		Automatic Oscillometric
	Operation Mode		Manual/Automatic/STAT
	Parameter		Systolic/Diastolic/Mean
	Systolic Range (mmHg)	Adult	40-270
		Pediatric	40-200
		Neonate	40-130
	Diastolic Range	Adult	100-210
		Pediatric	100-160
		Neonate	10-90
	Mean Range	Adult	20-230
		Pediatric	20-175
		Neonate	20-100
SpO2 Masimo* (Optional)			Masimo SpO2
Battery	Type (Capacity)		Li-ion (4400mAh)
	Run time		8 Hours
	Charging Time		8 Hours
Interface			RJ45, SD Card Slot
Warranty			2 Years
