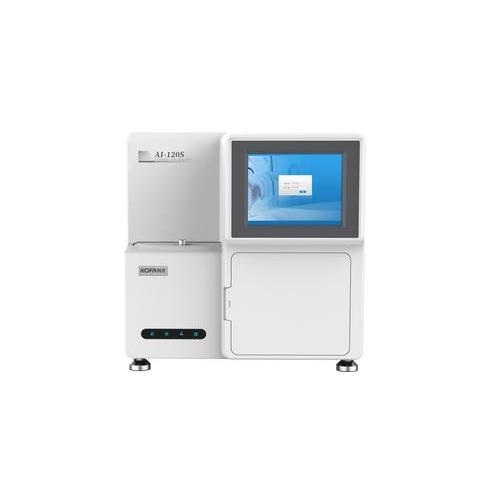

AI-120S Automatic CLIA System

Full Description & Features

• 24 sample positions and 8 reagent positions, with support for priority/emergency samples.

• Throughput: up to 120 tests per hour.

• Magnetic-particle mixing and acridinium-ester chemiluminescence ensure high sensitivity and better reaction consistency compared to traditional POCT methods.

• Reaction area temperature is precisely controlled at 37 °C ± 0.5 °C (PID temperature regulation) to ensure assay accuracy.

• Intelligent workflow support: supports LIS (Laboratory Information System) integration with two-way data transmission, enabling sample tracking, batch/routine or emergency testing modes.

• Safety & reliability: sample-suction integrity check, clot-detection, empty-cup detection, spill/overflow detection in suction system; anti-collision mechanisms with vertical collision detection for cups; automated controls for reliable and safe operation.

• Compact footprint — occupies only ~0.45 m² of desktop area.

• Supports multiple liquid-phase reagents to reduce frequency of manual reloads, increasing lab throughput and convenience.

Typical Use Cases / Applications

• Hospital laboratories performing immunoassays for liver/renal panels, cardiovascular markers, thyroid/hormone panels, tumor markers, diabetes screening, and other routine/oncology diagnostics (KOFA’s range suggests coverage across these fields).

• Third-party diagnostic labs requiring a small-footprint automated CLIA system with medium throughput.

• Clinics or labs in emerging markets (like yours) needing reliable IVD equipment to expand their diagnostic services without investing in large-capacity instruments.

• Ease of use in application and maintenance
• Designed with sample and reagent ID-barcode reading, in-tip dilution reducing consumable costs
• Intuitive and highly flexible open software with complete data reduction and LIS interfaces
• Integrated PC and touchscreen eliminates the need for an external workstation
• Smart time-management allows processing up to 3 microplates simultaneously

• Photometric range: 0 to 3.0 OD
• Spectral range: 400 nm to 700 nm (up to 8 filters)
• Read time: < 15 sec single, < 30 sec dual
• Precision: 1% CV at 1.0 OD
• Accuracy: ±0.005 OD or 2.5 % (whichever is greater)
• Linearity: 0 to 2.000 OD ±1 %

• Min / max. volumes: 10 µl to 300 µl with 300 µl tip, 301 µl to 1000 µl with 1100 µl tip
• Precision (single dispense): < 3 % CV at 20 µl, < 3 % CV at 100 µl
• Precision (multi dispense): < 10 % CV at 16 x 20 µl, < 3 % CV at 8 x 100 µl
• Features: Pipetting pressure monitoring, capacitive liquid level detection, tip detection, mixing, multiple dilution steps, archiving

• Sample and reagent capacity: Up to 192 samples (Flexible: e.g. 144 samples + 8 reagents + 16 controls)

• Temperature range: Up to 45 °C
• Temperature uniformity: ±1.5 °C (with in-process temperature uniformity monitoring)
• Shaking: 20 Hz

• Precision: 10% CV at 300 µl
• Residual volume: <2.5 µl in U-bottom (mean), <4 µl in flat bottom (mean)
• Wash buffer capacity: 3 wash buffers
• Modes: Sweep mode, soak, top and bottom wash, variable pump speed

• Width x Depth x Height: 125 cm x 65 cm (without waste bag) x 75 cm with closed cover (49” x 26” x 30”)

Click Here To Download Catalogue

• Parameters: Na+,K+,Cl-, iCa++ / Li
• It works on ISE principle
• Sample Type: Whole blood, Serum, Plasma, Urine
• Low reagent consumption
• Sample requirement is only 90ul
• 60 samples per hour
• Automatic two point calibration after 4hrs and one point calibration with each sample analysis
• Air bubble detection
• Track reagents consumption and provides alerts
• For low reagent volume
• Precision testing facility to get CV and SD
• Trilevel Quality Control with LJ plots of last 30days
• Low aspiration volume
• Fast sample processing
• Accurate and Precise results

Click Here To Download Catalogue

• Pad Size: Unfolded: 30 x 60 mm (other size can be request ).
• Folded: 30x30 mm, 30 x 35mm,can be 2ply or 4ply ( other size, ply can be request ).
• Aluminum Package: 60 x 50 mm , 50 x 50mm approximate ( other size can be request ).
• Packing: 100/200 pcs per inner box, 50/ 100 boxes per carton(packing can be request).

• For cleaning prior to injection or to disinfect the hurted skin for family and medical treatment organization use.
• For preparation and immediate disinfection of skin, wound area orr Instrument and utensil.

• Not for eyes;
• keep out of reach of children;
• For external use only;
• please stop using if you feel allergic or amyctic
