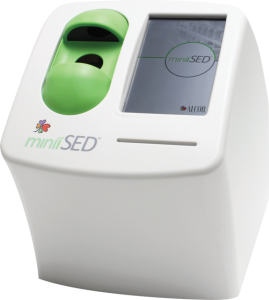

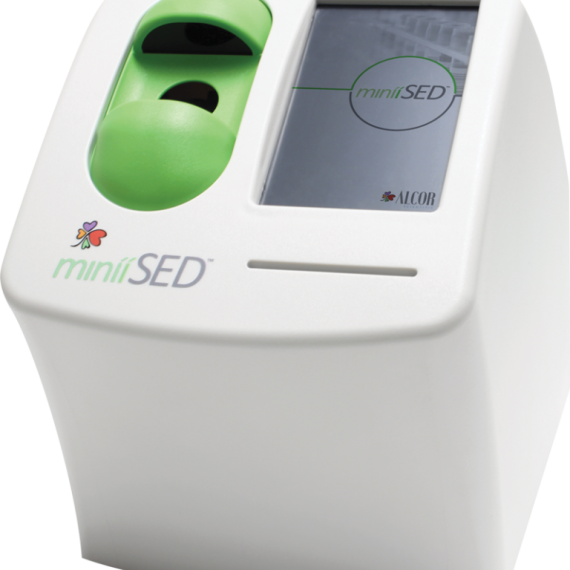

miniiSED Compact ESR Analyzer

Features

• Results in 15 seconds​
• Automated ESR testing in a compact footprint​
• Sampling directly from primary EDTA tube​
• 100 µl aspirated volume​ (500 µl total sample volume)​
• Highly correlated to the Westergren method​
• Closed testing environment / limited impact of environmental variables ​
• No disposables​
• Compatible with pediatric tubes​
• User-friendly and easy to implement

• Rotor capacity: 12 x 1.5/2.0 mL vessels, 2 x PCR strip
• Max. speed: 14,100 x g (14,500 rpm)
• Extremely compact footprint — measures 9”W x 4.”H x 9ó”D!
• Aluminum rotor accommodates twelve 1.5- or 2.0-mL tubes (maximum diameter of 11 mm)
• Rotor can be autoclaved at 121°C for 20 minutes
• Minimal sample heat transfer — maximum of 12°C after 20 minutes at max speed
• Eliminate costly repairs with the low maintenance drive
• Soft-touch lid closure for ergonomic lid locking — and releases automatically at the end of a run

Click Here To Download Catalogue

• Ease of use in application and maintenance
• Designed with sample and reagent ID-barcode reading, in-tip dilution reducing consumable costs
• Intuitive and highly flexible open software with complete data reduction and LIS interfaces
• Integrated PC and touchscreen eliminates the need for an external workstation
• Smart time-management allows processing up to 3 microplates simultaneously

• Photometric range: 0 to 3.0 OD
• Spectral range: 400 nm to 700 nm (up to 8 filters)
• Read time: < 15 sec single, < 30 sec dual
• Precision: 1% CV at 1.0 OD
• Accuracy: ±0.005 OD or 2.5 % (whichever is greater)
• Linearity: 0 to 2.000 OD ±1 %

• Min / max. volumes: 10 µl to 300 µl with 300 µl tip, 301 µl to 1000 µl with 1100 µl tip
• Precision (single dispense): < 3 % CV at 20 µl, < 3 % CV at 100 µl
• Precision (multi dispense): < 10 % CV at 16 x 20 µl, < 3 % CV at 8 x 100 µl
• Features: Pipetting pressure monitoring, capacitive liquid level detection, tip detection, mixing, multiple dilution steps, archiving

• Sample and reagent capacity: Up to 192 samples (Flexible: e.g. 144 samples + 8 reagents + 16 controls)

• Temperature range: Up to 45 °C
• Temperature uniformity: ±1.5 °C (with in-process temperature uniformity monitoring)
• Shaking: 20 Hz

• Precision: 10% CV at 300 µl
• Residual volume: <2.5 µl in U-bottom (mean), <4 µl in flat bottom (mean)
• Wash buffer capacity: 3 wash buffers
• Modes: Sweep mode, soak, top and bottom wash, variable pump speed

• Width x Depth x Height: 125 cm x 65 cm (without waste bag) x 75 cm with closed cover (49” x 26” x 30”)

Click Here To Download Catalogue

• Pad Size: Unfolded: 30 x 60 mm (other size can be request ).
• Folded: 30x30 mm, 30 x 35mm,can be 2ply or 4ply ( other size, ply can be request ).
• Aluminum Package: 60 x 50 mm , 50 x 50mm approximate ( other size can be request ).
• Packing: 100/200 pcs per inner box, 50/ 100 boxes per carton(packing can be request).

• For cleaning prior to injection or to disinfect the hurted skin for family and medical treatment organization use.
• For preparation and immediate disinfection of skin, wound area orr Instrument and utensil.

• Not for eyes;
• keep out of reach of children;
• For external use only;
• please stop using if you feel allergic or amyctic

• Outside Dia.: 87mm
• Material of Construction: Glass
• Capacity: 500mL
• Labware Outside Dia. - English: 3.4"
• Labware Capacity - English: 16.9 oz.
• Graduation Range: 100 to 500mL
• Height: 118mm
• Disposable/ Reusable: Reusable
• Labware Body Color: Clear
• Graduation Subdivisions: 100ml
• Beaker Type: Low Form
• Labware Outside Dia. - Metric: 87mm
• Series: Hauler 4x4 Crew Diesel
• Special Features: Pouring Spout
• Labware Inside Dia. - English: 3.2"
• Sterile/Non-Sterile: Non-Sterile
• Labware Inside Dia. - Metric: 81mm
• Labware Body Material: Glass
• Color: Clear
• Labware Height - English: 4.6"
• Labware Height - Metric: 118mm
• Labware Basic Material: Glass
• Item: Low Form Beaker
• Glassware Class: Not Rated
• Graduations: Yes
• Labware Capacity - Metric: 500mL
• Autoclavable: Yes
