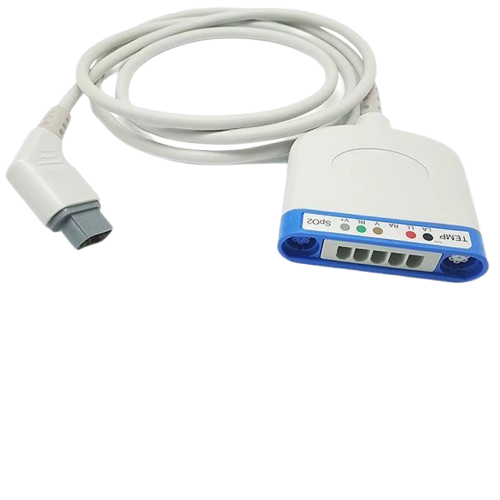

10Pin Multi-Med ECG Trunk Cable

Brands: Redy-Med

~~$0.00~~

Shipped From Abroad

The 10-Pin Multi-Med ECG Trunk Cable provides a secure connection between lead wires and Siemens/Draeger Infinity monitors. Engineered for accuracy and durability, it ensures stable ECG signal transmission in critical care environments. Built with a high-flex TPU jacket and gold-plated connectors, it delivers performance clinicians can trust.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Brands:: Redy-Med

Description
Reviews (0)

Description

Key Features

10-Pin Multi-Med connector compatible with Siemens/Draeger monitors
High-quality shielding for noise-free ECG signal transmission
TPU outer jacket offers excellent flexibility and chemical resistance
Connects to standard ECG lead sets (3, 5, or 6 leads)
Gold-plated contact pins ensure a reliable electrical connection
CE and ISO 13485 certified
Latex-free and biocompatible materials
Individually packaged for safety and hygiene

Technical Specifications

Specification	Details
Compatibility	Siemens/Draeger Infinity Delta, Kappa, SC series (SC6000, SC7000, SC9000)
Connector (Monitor End)	10-pin Multi-Med plug
Connector (Lead End)	Snap/clip lead wire interface
Length	2.4 meters (approx. 8 feet)
Jacket Material	Thermoplastic Polyurethane (TPU)
Conductor Material	Multi-strand copper, shielded
Color Coding	Standardized by AHA or IEC lead types
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Humidity	15% to 95% non-condensing
Latex-Free	Yes
Biocompatibility	ISO 10993 compliant
Certifications	CE marked, ISO 13485 certified
Packaging	Individually sealed in a protective pouch
Lifespan	>1000 connection cycles under normal use
