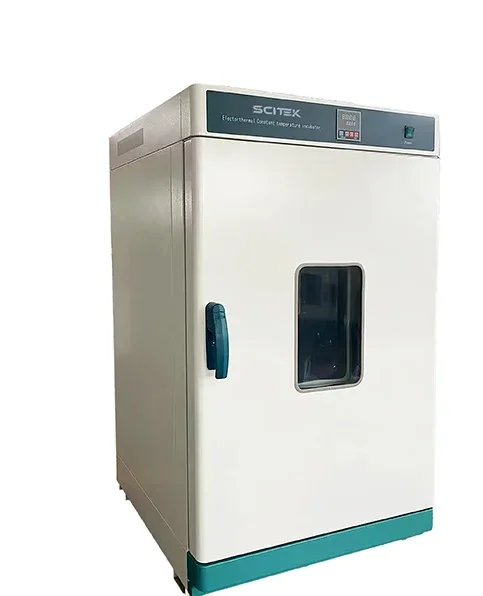

Benchtop Thermostatic Incubator

Thermostatic Incubator Features:

1. The shell is made of high-quality cold-rolled steel plate, and the surface is treated with electrostatic spraying technology.
2. The inner chamber is formed by processing high-quality stainless steel or high-quality cold-rolled steel plates, and is treated with anti-corrosion technology. The four corners transition into a semi circular arc for easy cleaning, and the shelf spacing can be adjusted.
3. The intelligent temperature controller has a PID control program, LCD display, a touch type operation button, and has over temperature alarm and timing functions.
4. Door is equipped with a double-layer tempered glass large viewing angle observation window, equipped with a lock type elastic adjustment door lock, and a high-temperature resistant silicone sealing strip to ensure good sealing effect and prevent heat loss.

Product Data

• Capacity(L) : 30/45/65/125/230
• Temperature Range(℃) : RT+5~80℃
• Temperature Resolution(℃) : 0.1℃
• Display : LCD Display Screen

Thermostatic Incubator Specifications:

Model	ICB-30B	ICB-45B	ICB-65B	ICB-125B	ICB-230B
Capacity(L)	30	45	65	125	230
Display	LCD Display Screen
Temperature Range(℃)	RT+5~80℃
Temperature Fluctuation(℃)	±0.5℃
Temperature Accuracy(℃)	±1.0℃
Temperature Resolution(℃)	0.1℃
Time Setting	0~9999mins
Shelves	2pcs
Sensor	PT100
Power Supply	AC220V±10%, 50/60Hz(Standard); AC110V, 60Hz(Optional)
Power(W)	150	250	500	600	700
Chamber Size(W×D×H)(mm)	310x310x310	350x350x350	400x360x450	500x450x550	600x500x750
Size(W×D×H)(mm)	460x510x695	500x550x735	550x550x840	636x680x915	730x670x1220
Shipping Size(W×D×H)(mm)	570x600x790	640x605x830	660x660x930	745x755x1030	790x860x1440
N.W./G.W. (kg)	39/55	42/58	46/65	55/75	70/120

Details of Thermostatic Incubator:

The glass viewing window of the thermostatic incubator allows a clear view of the sample without opening the door.

Silicone rubber seals ensure excellent sealing and minimal heat loss.

Image above shows the ICB-30B

Image above shows the ICB-65B
