Skin Cancer Model with 5 stages, 8 times magnified - 3B Smart Anatomy

Human Anatomy Models / Scientific & Medical Education

3B Scientific Skin Cancer Model with 5 stages, 8 times magnified – 3B Smart Anatomy

Brands: 3B Scientific

~~$0.00~~

Ship from abroad

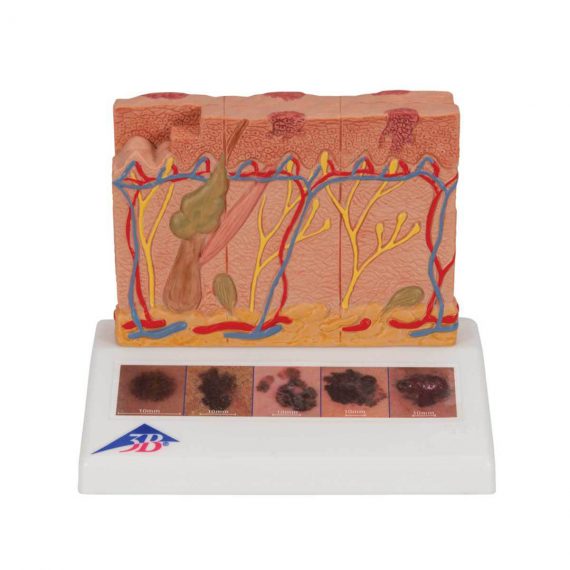

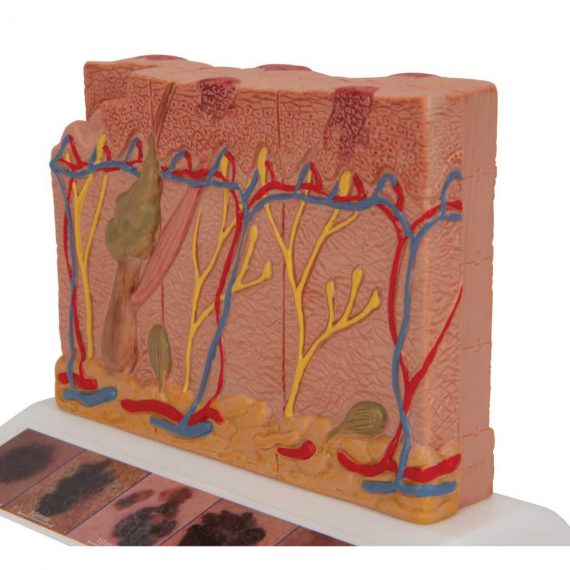

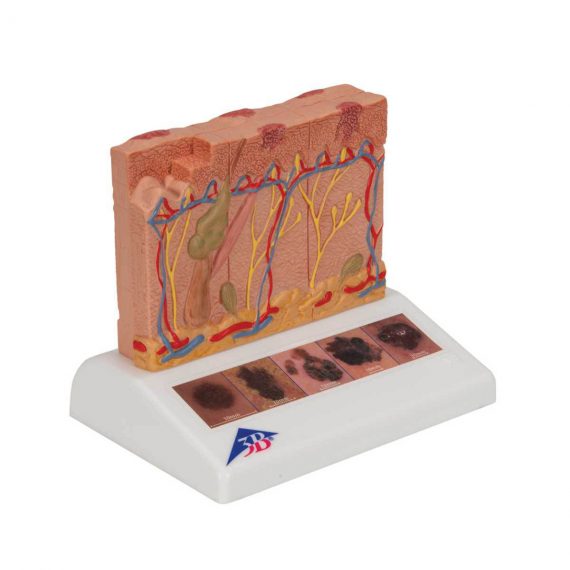

This 3B Scientific® Skin Pathology model shows healthy skin and 5 different stages of malignant melanoma on the front and back, enlarged 8 times

Delivery & Availability:
Typically 5-7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Sku:

SF1033560099-33

Tags:

3B Scientific / 3B Smart Anatomy / 8 times magnified / Skin Cancer Model with 5 stages

Brands:: 3B Scientific

Description
Reviews (0)

Description

This 3B Scientific® Skin Pathology model shows healthy skin and 5 different stages of malignant melanoma on the front and back, enlarged 8 times:

healthy
malignant cells are found at the surface, within the epidermis
malignant cells fill the epidermis, a few invade the papillary layer
malignant cells fill the papillary layer
malignant cells invade the reticular layer
malignant cells have reached the subcutaneous fatty tissue, satellite cells approach a vein

In the top view of the skin cancer model, the individual stages of externally visible skin changes are shown, allowing for an assessment according to the “ABCDE” criteria. The sides of the skin cancer model show the various levels of invasion into the skin layers according to Clark (I-V) and the tumor thickness according to Breslow (in mm). 5 original color illustrations on the base of the skin cancer model show various types of malignant melanomas. The skin cancer model comes mounted on a base.

The skin cancer model is a great tool for illustrating this skin pathology.

Reviews

There are no reviews yet.

Be the first to review “3B Scientific Skin Cancer Model with 5 stages, 8 times magnified – 3B Smart Anatomy”

Quick Comparison

3B Scientific Skin Cancer Model with 5 stages, 8 times magnified - 3B Smart Anatomy remove 3B Scientific Functional Human Hip Joint Model - 3B Smart Anatomy remove Optika B-150P-BRPL Binocular Polarizing Microscope remove OPTIKA B-383DK Trinocular Darkfeld Microscope remove Chemical Weighing Balance remove 3B Scientific Classic Flexible Human Spine Model - 3B Smart Anatomy remove

Name 3B Scientific Skin Cancer Model with 5 stages, 8 times magnified - 3B Smart Anatomy remove 3B Scientific Functional Human Hip Joint Model - 3B Smart Anatomy remove Optika B-150P-BRPL Binocular Polarizing Microscope remove OPTIKA B-383DK Trinocular Darkfeld Microscope remove Chemical Weighing Balance remove 3B Scientific Classic Flexible Human Spine Model - 3B Smart Anatomy remove


SKU SF1033560099-33 SF1033560099-5 SF1033560098-3 SF1033560098-14 SF1033560084-190 SF1033560099-1

Rating

Price

~~$0.00~~

Stock

Availability

Add to cart

Description

Ship from abroad This 3B Scientific® Skin Pathology model shows healthy skin and 5 different stages of malignant melanoma on the front and back, enlarged 8 times

Delivery & Availability: Typically 5-7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Ship from abroad This life size functional hip joint model clearly shows the anatomy and mechanics of the human hip joint. This fully flexible hip joint demonstrates abduction, anteversion, retroversion and internal/external rotation. This high quality functional joint consists of a portion of femur, hip bone and joint ligaments. Comes on a stand for easy display in the classroom or doctor's office.

Delivery & Availability: Typically 5-7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad Cordless binocular polarized light microscope ideal for students and primary schools, with three PLAN achromatic lenses (400x), FN 18 high eyepoint eyepieces, finite optical system, coaxial focusing, rotating stage, Abbe condenser and powerful, uniform, white color temperature 1 W X-LED1 illumination.

Delivery & Availability: Typically 21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad B-383DK - Darkfield Microscope Laboratory upright microscope for brightfield and darkfield observations with N-PLAN objectives (and W-PLAN 100x with iris) for biology and especially darkfield fresh blood analysis and the exclusive X-LED3 illumination system. The special condenser with integrated, exclusive X-LED3 illuminator replaces any other external and expensive lighting source required for these applications and is ideal for great-looking, rich and high-quality specimen view. Delivery & Availability: Typically 21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

In stock This is a 210g/0.001g Analytical electronic chemical balance for industrial and scientific field.

Delivery & Availability: Typically 5-7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Ship from abroad This spine model for patient and student education is also the most affordable spine model. This spine is fully flexible and designed for hands-on demonstrations.

Delivery & Availability: Typically 5-7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Content

This 3B Scientific® Skin Pathology model shows healthy skin and 5 different stages of malignant melanoma on the front and back, enlarged 8 times:

healthy
malignant cells are found at the surface, within the epidermis
malignant cells fill the epidermis, a few invade the papillary layer
malignant cells fill the papillary layer
malignant cells invade the reticular layer
malignant cells have reached the subcutaneous fatty tissue, satellite cells approach a vein

This life size functional hip joint model clearly shows the anatomy and mechanics of the human hip joint. This fully flexible hip joint demonstrates abduction, anteversion, retroversion and internal/external rotation. This high quality functional joint consists of a portion of femur, hip bone and joint ligaments. Comes on a stand for easy display in the classroom or doctor's office.

Cordless binocular polarized light microscope ideal for students and primary schools, with three PLAN achromatic lenses (400x), FN 18 high eyepoint eyepieces, finite optical system, coaxial focusing, rotating stage, Abbe condenser and powerful, uniform, white color temperature 1 W X-LED1 illumination. Slim and easy to carry, it is equipped with all the main controls to start learning how to use an advanced microscope and with long lasting LED illumination to provide over 20 years of use. Rotating swing-out polarizer and sliding-out fixed analyzer included. The exclusive Li-Ion battery ensures unparalleled duration and fast recharge. Features:

Observation mode: Brightfield, Polarized Light.
Head: Binocular, 30° inclined; 360° rotating.
Eyepiece: WF10x/18 mm, secured by screw.
Nosepiece: Quadruple ball bearings revolving nosepiece.
Objectives: – N-PLAN 4x/0.10, with anti-fungus treatment – N-PLAN 10x/0.25 , with anti-fungus treatment – N-PLAN 40x/0.65 , with anti-fungus treatment
Specimen stage: Rotatable round stage, 120 mm diameter.
Focusing: Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. Adjustable tension of coarse focusing knob.
Condenser: N.A. 1.25, pre-centered, fixed with iris diaphragm.
Illumination: X-LED¹ with white 1 W LED and light intensity control.
Color temperature: 6,300 K. Li-Ion battery for long lasting operation. Multi-plug 100-240Vac/5Vdc external power supply.
Polarizing filters: Rotating Polarizer (swing-out) and fixed Analyzer (sliding-out).

Technical Specifications:

Observation Method - Transmitted Light	Brightfield	Yes
	Simple polarized light	Yes
Main Body	Type	Upright
	Construction material	Aluminum die-cast
Head	Type	Binocular (Siedentopf)
	Inclination	30°
	360° rotating	Yes
	Interpupillary distance (mm)	48-75
	Dioptric adjustement	On left tube
	Fixing screw for eyepieces	Yes
	Tube inner diameter (mm)	23
Eyepieces	Field number (mm)	18
	Magnification	10x
	High eyepoint (for glass wearers)	Yes
	Pointer	As optional
	Micrometric scale	As optional
	Diameter of micrometer glass (mm)	20
Nosepiece	Positions	Quadruple
	Bi-directional	Yes
	Rotation on ball bearings	Yes
	Objective thread	RMS
Objectives	Optical system	160
	Anti-fungus treatment	Yes
	Parfocal distance (mm)	45
	Standard magnifications	40x-400x
	Type	N-PLAN
	Objectives included	4x/0.10, W.D. 15.2 mm 10x/0.25, W.D. 5.5 mm 40x/0.65, W.D. 0.45 mm
Stage	Type	Round
	Rotation	360°
	Dimensions (mm)	120
	Material	Anti-scratch painting
	Specimen clips	Yes
	Slide number	1
Condenser - Single Position	Type	Fixed
	Numerical aperture (N.A.)	1.25
	Diaphragms	Iris
	Centrable	Pre-centered
Focusing System	Type	Coaxial coarse & fine
	Coarse total travel (mm)	16
	Fine total travel (per single rotation) (mm)	0.4
	Fine graduations	100
	Fine resolution (µm)	4
	Upper stop to prevent contact	Yes
	Adjustable tension	Yes
Transmitted Illumination	Type	X-LED
	X-LED type	X-LED1
	Light source power (W)	1
	Brightness control	Manual
	Lifetime (hours)	> 65,000
	Temperature (K)	6,300
	Max. required power (W)	1.5
Power Supply for Transmitted Illumination	Type	External
	Microscope connector	Jack, 2.1 mm
	Power plug type	Multi-plug (EU, UK, US)
	Input voltage	100/240 Vac, 50/60 Hz
	Output voltage	5 Vdc 500 mA
	LED indicator	Yes
	Rechargeable batteries	Yes
	Battery type	Li-ion (battery pack)
	Working time of batteries (hours)	15
	Charging time of batteries (hours)	6
Accessories Included	Dust cover	Yes
	Tension adjustment tool	Yes
	User Manual	Digital version (downloadable)
Additional Information		Rotating polarizer (swing-out) and fixed analyzer (sliding-out) filters
Product Weight	Height (mm)	350
	Width (mm)	170
	Depth (mm)	320
Product Weight	(kg)	4

Click Here To Download Catalogue

Observation mode: Brightfield, oil immersion darkfield. Head: Trinocular (fixed 50/50), 30° inclined, 360° rotating. Interpupillary distance: Adjustable between 48 and 75 mm. Dioptric adjustment: On the left eyepiece tube. Eyepieces: WF10x/20 mm, high eye-point and secured by screw. Nosepiece: Quintuple revolving nosepiece, rotation on ball bearings. Objectives: N-PLAN 4x/0.10 N-PLAN 10x/0.25 N-PLAN 40x/0.65 W-PLAN 100x/1.25 (oil) with iris All with anti-fungus treatment. Specimen stage: Double layer rackless mechanical stage, 150×139 mm, 75×33 mm X-Y range. Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. Brightfield condenser: Abbe N.A. 1.25, with objective-coded iris diaphragm, focusable and centerable. Darkfieldfield condenser: Darkfield N.A. 1.36 (oil immersion) with built-in X-LED3. Transmitted illumination (Fixed Koehler type): X-LED³ with white 3.6 W LED (6,300K) with brightness control. Multi-plug 100-240Vac/6Vdc external power supply.

Click Here To Download Catalogue

This is a 210g/0.001g Analytical electronic chemical balance for industrial and scientific field.

Specifications: 110g/0.001g, 210g/0.001g
Sensor’s Technology method: Strain gauge
Stainless steel pan size: ø90mm
Minimum weighing value: 0.003g
Resolution: 0.001g
Linearity: ±0.003g
Stabilization time: ≤ 2S
Sensitivity drift: ±0.003g
Weighing Units: g, oz, ct, mg
Operating Temperature: 17 C - 25 degree
Display Refresh time: 0.3 secs
External calibration weight free with scale: 100g, 200g
Counting feature: Yes

Display: LCD
Wind proof (shield) dimension: 170*190*170mm
Outlook size: 270*195*285mm
Operation Key: ON/OFF, COUNT, ENTER, CAL, UNIT
Power: AC 220V 50Hz
Main parts: Cast Aluminum, wind proof, Calibration weight
Optional part: RS232, Printer

Inner packing: 415*285*430mm
Outer packing:475*315*485mm
N.W.: 4kg
G.W.: 7kg

This spine model for patient and student education is also the most affordable spine model. This spine is fully flexible and designed for hands-on demonstrations. The spine contains these features:
