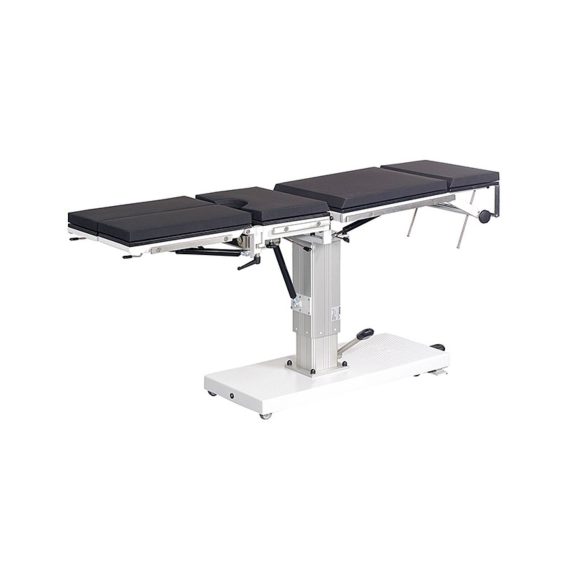

AGA Gynaecology Operating Table
$0.00
Shipped From Abroad
The gynaecology operating table AGA-OP-POWER-MAT-GYN is also available in two frame finishes. The operating table has a coated frame and a base cover made of plastic, while the operating table has a frame and a base cover made of glass bead blasted stainless steel. The gynaecology operating tables AGA-OP-POWER-MAT-GYN are composed of the operating table AGA-OP-POWER-MAT with the additional equipment components included in the accessories:
- Separate, removable and spreadable leg plates.
- Upholstery segments as flat pads with x-ray transparent support plates.
- A cutout in the pelvic section.
Additional accessory components, such as leg holders with fastening clamps and a stainless steel discharge pan, turn the operating table into almost a full-fledged gynaecological examination chair.
Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Description
Features
- All upholstery segments can be continuously adjusted manually using gas pressure springs (back, seat and leg sections) or clamping rod mechanism (head section). This type of construction results in an extremely competitive price.
- Maintenance-free hydraulic height adjustment from 785 to 1,085 mm using a foot pump. This type of construction makes the AGA-OP-POWER-MAT-GYN independent of an energy source.
- Table surface divided into five sections for optimal and safe patient positioning.
- Upholstery segments as flat pads, thickness 40 mm, colour black, antistatic according to ISO 2882, with seamless top sides. They are attached to the hook straps with fleece straps, which are located on the 15 mm thick x-ray compatible support plates.
- The base, which is equipped with a potential equalization socket and levelling feet, offers high stability.
- Lifting column made of anodized light metal.
- A pelvic cutout is incorporated into the seat section.
- Leg plates in a split, removable and spreadable design (instead of just being foldable by 90°).
- Standard surgical rails (25 x 10 mm) on the outside of the frame of the back, seat and leg sections, for attaching accessory components such as armrests, anesthesia pole, leg holders, etc.
Technical data
| AGA-OP-POWER-MAT-GYN | ||
|---|---|---|
| Article number | MP-1050/5YGYN | MP-3050/5YGYN |
| Frame | Lacquered | Stainless steel |
| Lengths Head to foot sections |
1,900 mm 295 / 575 / 360 / 520 mm |
|
| Width | 500 mm (560 mm with standard rails) | |
| Height adjustment | 785 – 1,085 mm (hydraulic) | |
| Upholstery segments | 5 sections | |
| Synthetic leather | Electrically conductive, black | |
| Upholstery thickness | 40 mm | |
| Load capacity | 150 kg | |
| Separate, removable and spreadable leg plates | ✓ | |
| Upholsery segments as flat pads with X-ray transparent support plates |
✓ | |
| Gyn. cutout | ✓ | |
| Trendelenburg adjustment Anti-Trendelenburg adjustment |
20° 8° |
|
| Headrest adjustment | -30°/+20° (clamping rods) | |
| Back section adjustment | -20°/+45° (gas pressure spring) | |
| Seat section adjustment | -10°/+40° (gas pressure spring) | |
| Leg plates adjustment | -90°/0° (separate, gas pressure springs) | |
The standard configuration includes:
- Standard surgical rails on the outside of the frame of the back, seat and leg sections, dimensions 25 x 10 mm, made of stainless steel, for attaching accessory components such as armrests, anesthesia sheets, leg holders, etc.
- A base equipped with a potential equalization socket and levelling feet.
Accessories & additional options
To attach additional equipment components (accessories), equipment rails (dimensions 25 x 10 mm, made of CrNi steel), also known as standard surgical rails, are found on the outside of the frame of the back, seat and leg sections.
| Article No. | Description |
|---|---|
| A-2047 | Arm support, swivel-mounted, black PU-foam arm shell, dimensions approx. 400 x 120 mm (L x W), with 2 Velcro fasteners to secure the arm to the shell, chrome-plated holder with attachment for standard rail. |
| AHT-3065 | Arm and hand surgery table, made of CrNi steel, height adjustable approx. 700 – 1,135 mm, with floor support, black conductive upholstery, dimensions approx. 650 x 250 mm (L x W), with fastening clamp for standard rail. |
| BEFE-60 | Leg restraints (pair), with Velcro fastenings around the leg section(s) of the table, fixation of the legs using straps with Velcro closures. |
| BHG-600 | Göpel leg rests (pair), with spherical joints, rods with two 90° bends, chrome-plated, Ø 18 mm, black PU-foam shells. A pair of fastening clamps for standard rails is required. |
| BKG-600 | Göpel fastening clamps (pair), adjustable, chrome-plated, for standard rails. |
| IT-3060 | Instrument table, made of CrNi steel, dimensions approx. 600 x 400 mm (L x W), side raised edge 15 mm, mounting rod Ø 18 mm. A fastening clamp for standard rails is required. |
| NB-30640 | Anesthesia pole, made of CrNi steel, pole length 640 mm, Ø 18 mm. A fastening clamp for standard rail required. |
| SG-1000/BK | Side guard, removable, dimensions approx. 800 x 250 mm (L x H), with fastening clamp for standard rail. |
The equipment components mentioned above are just a small excerpt. The following accessories are also available for the operating tables: hand restraints, ring armrests, body belt, side or shoulder holder, side support, IV stand and leg holders.
