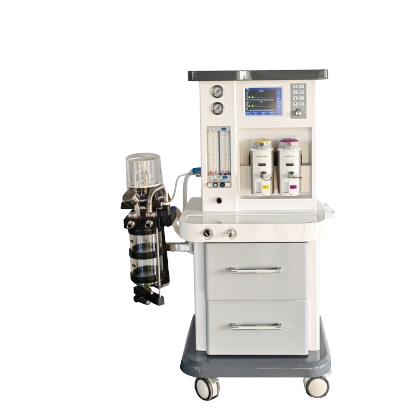

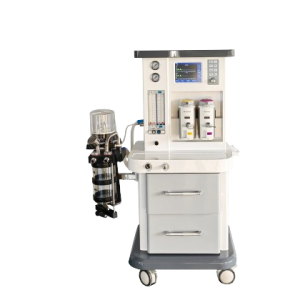

Anaesthesia Machine Model 40

Brands: Medovo

~~$0.00~~

Shipped From Abroad

The Anesthesia Workstation Model 30 is a high-performance anesthesia delivery system designed for precision, safety, and efficiency in medical environments. It features an 8-inch color TFT LCD screen, dual-end pressure flow sensor, and advanced gas monitoring capabilities. The unit supports multiple ventilation modes (IPPV, SIMV, PSV, SIPPV, etc.), ensuring adaptability for adult and pediatric patients. Equipped with a CO₂ absorber, precise vaporizers, and a gas interlocking safety system, it enhances patient safety and workflow efficiency. Additional features include backup battery support, power failure alarms, and an optional yoke system for O₂ and N₂O cylinders.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Brands:: Medovo

Description
Reviews (0)

Description

Features

Built-in 8” color anesthesia ventilator
Traditional CO₂ absorber (autoclavable, Patent)
Dual high-end precise vaporizers (Volume > 280ml)
Dual gas sources system (O₂/N₂O)
Continuous FiO₂ monitoring & bain circuit interface
Electronic tidal volume (Innovation)
Battery backup for all systems over 60 mins
Optional: Backup Yoke system (O₂, N₂O)
Optional: Anesthesia gas scavenging system
Optional: Anesthesia gas modular patient monitor
ABS Structure
Large pressure gauges for easy reading
CO₂ absorber with easy change-over system
Optional: Yoke system for backup 1xO₂, 1xN₂O A-Type cylinder

Safety Features

Gas interlocking system with hypoxy guard
Oxygen exhaust alarm
Blow-off valve in top circuit

Technical Specification

Anaesthesia Main Unit

High-resolution 8” color TFT LCD screen
Dual-end pressure flow sensor for monitoring:
- Tidal Volume
- Respiratory frequency
- Airway pressure
- Pressure-time wave
- Flow-time wave (two-way)
- High and Low Pressure limitations
- Apnea
- Oxygen concentration (Auto/Manual)
Respiration loop function: Close, Semi-close, Semi-open
Application: Adult, Pediatric
Low gas alarming: Alerts if gas supply lasts under 7 seconds
High pressure limitation: Safety shutoff for overpressure
Low pressure protection: Auto stop for N₂O if O₂ pressure < 0.1 MPa
Power failure alarming & extendable function
O₂ flush: 25 ~ 75L/min
Gas pressure:
- O₂: 0.3 ~ 0.5 MPa
- N₂O: 0.3 ~ 0.5 MPa
Power supply: 220V±10%, 50Hz±1%; Backup USB Battery
Optional: Yoke system for backup O₂, N₂O cylinders

Flow Meter

O₂, N₂O – Four tubes (0.05 ~ 1 L/min, 1 ~ 10 L/min)
O₂/N₂O inter-lock system to keep O₂ concentration ≥ 25%

Anaesthesia Ventilator

Adult, Pediatric bellows 1 set each
Pneumatic driven electric control
Monitor parameters:
- Tidal Volume
- Respiratory frequency
- I:E ratio
- M.V.
- FiO₂
- Apnea
- Peak airway pressure
- Airway pressure waves
Working Modes: Manual, Auto (IPPV, SIGH, SIMV, SIPPV, Demo, optional PCV, PSV)
Tidal Volume: 50 ~ 1500 mL
Respiratory Frequency: 4 ~ 99 bpm
I:E Ratio: 1.0:5 ~ 1:8 (Adjustable)
Trigger Pressure: -2 ~ 0 kPa
High pressure limitation: 2 ~ 6 kPa
Low pressure limitation: 0 ~ 2 kPa

Respiratory Circuit

Compact CO₂ absorber (Autoclavable)

Vaporizer

High-end precise vaporizers (Halothane, Isoflurane, Sevoflurane)
Adjustable ranges:
- Halothane/Isoflurane: 0.5 ~ 5% VOL
- Sevoflurane: 0.5 ~ 8% VOL
Automatic compensation function (flow, pressure, temperature)
Self-lock function & inter-lock function
Volume: >280 mL
