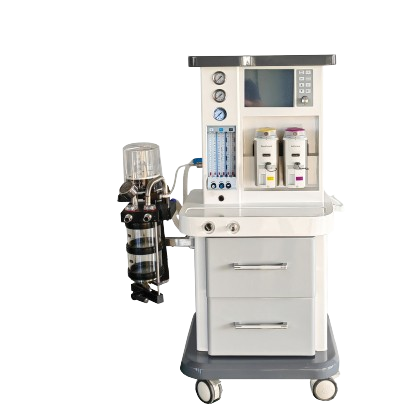

Anaesthesia Machine Model 50
$0.00
Shipped From Abroad
The Anesthesia Workstation Model 30 is an advanced medical device featuring precise ventilation control, integrated vaporizers, safety alarms, and a user-friendly interface for efficient anesthesia delivery in surgical environments.
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Description
Features
- Contains Output interface for Anesthesia information management system.
- Complete with backup battery for working more than 120 minutes.
-
Built-in 10.4” color anesthesia ventilator
-
Traditional CO₂ absorber (autoclavable, Patent)
-
Dual high-end precise vaporizers (Volume > 280ml)
-
Three gas sources system (O₂/N₂O/Air)
-
Continuous FiO₂ monitoring & bain circuit interface
-
Electronic tidal volume (Innovation)
-
Battery backup for all systems over 60 mins
-
Optional: Backup Yoke system (O₂, N₂O)
-
Optional: Anesthesia gas scavenging system
-
Optional: Anesthesia gas modular patient monitor
-
Structure made of ABS
-
Large pressure gauges for easy reading
-
CO₂ absorber with easy changeover system
-
Optional: Yoke system for backup 1×O₂, 1×N₂O A-Type cylinder
Safety Features
-
Gases interlocking system with hypoxy guard
-
Oxygen exhaust alarm
-
Blow-off valve in top circuit
Technical Specification
Anaesthesia main unit
-
High resolution 10.4″ color TFT LCD screen
-
Dual-end pressure flow sensor, the unit can monitor Tidal Volume, Respiratory frequency, airway pressure, pressure-time wave, flow-time wave (two-way), High Pressure limitation, Low Pressure limitation, Apnea, Oxygen concentration under both two operating modes (Auto, Manual)
-
Respiration loop function
-
Close, semi-close, semi-open
-
Application: Adult, Pediatric
-
Low gas alarming: It gives an alarm if it lasts more than 7 seconds.
-
High pressure Limitation: Whenever airway pressure exceeds the pre-set High pressure, the ventilator offers automatic protection to ensure patient safety.
-
Low pressure protection: Once O₂ pressure is less than 0.1MPa, N₂O gas supply stops automatically.
-
Power failure alarming, power extendable function
-
O₂ flush: 25 ~ 75L/min
-
Gas Pressure:
-
O₂: 0.3 ~ 0.5MPa
-
N₂O: 0.3 ~ 0.5MPa
-
AIR: 0.3 ~ 0.5MPa
-
-
Power: 220V±10%, 50Hz±1%; Backup USP Battery.
-
Optional: Yoke system for backup O₂, N₂O cylinders
Flow meter
-
O₂, N₂O, AIR – six tubes (0.05 ~ 1 L/min, 1 ~ 10L/min)
-
O₂/N₂O inter-lock system, to keep O₂ concentration no less than 25%
Anaesthesia Ventilator
-
Adult, Pediatric bellows 1 set each
-
Pneumatic-driven electric control
-
Monitor Parameters: Tidal volume, Respiratory frequency, I:E rate, M.V., FiO₂, Apnea, Peak airway pressure, airway pressure waves (P-T, F-T) etc.
-
Working mode: Manual, Auto (IPPV, SIMV, A/C, SIGH, PCV, PSV, Demo.)
-
Tidal volume: 50 ~ 1500 mL
-
Respiratory frequency: 4 ~ 99 bpm
-
I:E Ratio: 1.0:5 ~ 1:8 (adjustable)
-
Synchronizer trigger Pressure: -2 ~ 0 kPa
-
High pressure limitation: 2 ~ 6 kPa
-
Low pressure limitation: 0 ~ 2 kPa
Respiratory Circuit
-
Consolidated compact CO₂ absorber (autoclavable).
Vaporizer
-
High-end precise vaporizer (Halothane, Isoflurane, Sevoflurane)
-
Halothane/Isoflurane adjustable range: 0.5 ~ 5% VOL
-
Sevoflurane adjustable range: 0.5 ~ 8% VOL
-
Automatic compensation function – flow, pressure, temperature
-
Self-lock function & inter-lock function
-
Volume: >280 ml
