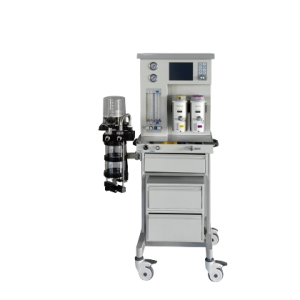

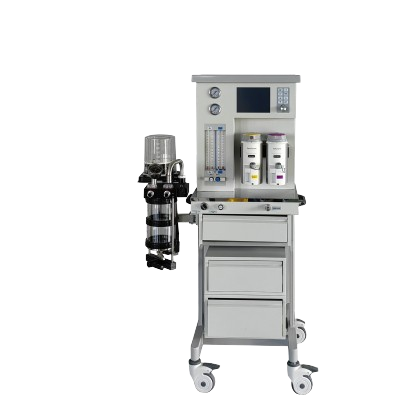

Anesthesia Workstation Model 30

Brands: Medovo

~~$0.00~~

Shipped From Abroad

Advanced Anesthesia Workstation Model 30 with LCD ventilator, precise vaporizers, dual gas system, and safety features.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Brands:: Medovo

Description
Reviews (0)

Description

Features

Built in 8” color LCD anaesthesia ventilator
Traditional CO₂ absorber (autoclavable, Patent)
Dual high end precise vaporizers (Volume > 280ml)
Dual gas sources system (O₂/N₂O)
Continuous FiO₂ monitoring & bain circuit interface
Optional: Electronic tidal volume setting
Optional: Anaesthesia gas modular patient monitor
Optional: Anaesthesia gas scavenging system
Optional: Yoke system & EtCO₂ monitoring function
Optional: UPS battery backup system

Technical Specification

Anaesthesia main unit

High resolution 8” color TFT LCD screen
Built with airway pressure sensor, FiO₂ sensor & flow sensor. The unit can monitor:
- Tidal volume, Respiratory frequency, I:E rate, Airway pressure, Pressure-time wave, Flow-time wave, High pressure limitation, Low pressure limitation, MV, Apnea, FiO₂, Oxygen concentration under both two operating modes (Auto, Manual)
Close, semi-close, semi-open system, open (bain circuit)
Application: Adult, Pediatric
Low gas alarming: Low O₂ gas pressure, it will give alarm for more than 7 seconds.
High pressure limitation: Whenever airway pressure exceeds the pre-set high pressure, the ventilator offers protection automatically to ensure airway pressure does not increase further, ensuring patient safety.
Low pressure protection: Once O₂ pressure is less than 0.1 MPa, N₂O gas supply will stop automatically.
Power failure alarming, power extendable function
O₂ flush: 25 ~ 75L/min
Gas pressure:
- O₂: 0.3 ~ 0.5 MPa
- N₂O: 0.3 ~ 0.5 MPa
Power: 220V±10%, 50Hz±1%

Flow meter

O₂/N₂O – double tubes (0.1 ~ 10 L/min)
O₂/N₂O inter-lock system, to keep O₂ concentration no less than 25%

Anaesthesia Ventilator

Adult or Pediatric bellow 1 set
Pneumatic driven electric control
Monitor Parameters:
- Tidal volume, Respiratory frequency, I:E rate, FiO₂,
- Peak airway pressure, airway pressure wave (P-T, F-T), Minute volume
Working mode: Manual, Auto (IPPV, SIMV, SIPPV, Demo, Optional PCV, PSV)
Tidal volume: 50 ~ 1500 mL
Respiratory frequency: 4 ~ 99 bpm
I:E Ratio: 1.0:5 ~ 1:8 (adjustable)
Synchronizer trigger Pressure: -2 ~ 0 kPa
High pressure limitation: 2 ~ 6 kPa
Low pressure limitation: 0 ~ 2 kPa

Respiratory Circuit

Consolidated CO₂ absorber (autoclavable)

Vaporizer

High-end precise vaporizer (Halothane, Isoflurane, Sevoflurane)
Halothane/Isoflurane adjustable range: 0.5 ~ 5% VOL
Sevoflurane adjustable range: 0.5 ~ 8% VOL
Automatic compensation function – flow, pressure, temperature
Self-lock function & inter-lock function
Volume: >280 ml

Reviews

There are no reviews yet.

Be the first to review “Anesthesia Workstation Model 30”
