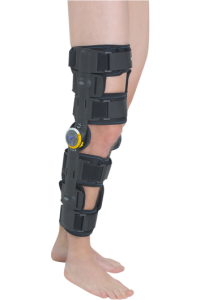

Angle Adjusted Brace (Lux)

• It is made of the aluminum bar with immobilization strap.
• Sticky cloth fastener straps insure comfortable fit and stabilization
• Angle adjustment lock allows normal knee joint motion within a suitable range. The special Lux hinge system is quick setting and limits: Extension from -15°to 90°, flexion from 0°to 120°, Detachable, formable for increased
• stability. Its height can be shortened.
• Extremely quick application time and simple to adjust to enhance patient compliance and comfort.

• BILIPOD LED Double Surface Phototherapy Unit Sturdy Baby Trolley consists of –  Collapsible Acrylic Side Panels  Transparent Baby Tray with Bubble Mattress  Height Adjustment and Angle Adjustment for Overhead LED Module  Four Swivelling castor wheels with brakes Certified Also available - Bilipod Double Surface Phototherapy Unit with Detachable trolley
• Uniform Light Distribution with 11 High Intensity LED Lamps uniform body coverage • Observation Lamp Two Observation White LEDs provide enough light to observe the color of baby’s skin • High Irradiance Levels Irradiance > 30 µW/cm²/nm enables faster bilirubin breakdown • Pin Drop Silent Operation zero noise cooling fan • Optimum Wavelength Range: 420 to 490 nm • Very Low Power Consumption of only 30W • Effective Surface Area : 40cm x 50cm
• Life of Lamps - 30000 hours • Lamp Tilt up to 90° • Height Adjustability up to 50cm • Light Weight Lamp Unit weighs less than 3 Kg • Portable can be placed above Infant incubator or below the Infant Warmer Bassinet to give under surface Phototherapy • Sleek & Compact Lamp Unit Size : 45 x 30 x 5 cm takes minimum space • Timer: LCD Based Timer measuring Total Lamp Usage and Patient Timer
• BiliProbe Irradiance Meter Handheld Irradiance (Flux) meter for measurement of the output of conventional Phototherapy Units.  Bandpass filter - 425nm to 475nm  Range: 0 to 200 uW/cm²/nm  Minimal Graduation: 1 uW/cm²/nm  Accuracy: ± 10%  Measuring Time: Approx 4-5 sec  Press to ON Switch  Battery: 9V Alkaline Phototherapy Eye PATCH has been designed to assure complete comfort, and eye protection for infants during Phototherapy Treatment  Adjustable Band for proper comfort and secure fit  Easy to use design  Large eye protection pad increases light protection  Single Piece wrap around design can be independently adjusted to prevent unwanted movement.  Available in 3 sizes - Preterm, Term and Neonatal Phototherapy Eye Patch

Click Here To Download Catalogue

• Vehicle loadable
• Wheel lock
• Automatic tube arm lock at any angle
• Storage space for cassettes or detectors
• User Programmable APR, save up to 9 APR settings
• Three way X-ray exposure
• USB interface & Bluetooth
• Remote control (Option)
• 5kg including X-ray unit, collimator and stand
• Maximum hight of 228.6cm
• Exposure Hand Switch
• Foldable, two-step stand

• Power Rating - 4kW,
• 100kHz, high frequency X-ray Generator
• kVp Range - Maximum 140kVp
• mAs Range - 0.1-250mAs
• mA Range – 10 to 100mA
• 330~2000mm FD
• Collimator with 30 seconds LED lamp timer

Click Here To Download Catalogue

• TS-CSA-A (Vertical movement, 1.6m stroke, rail length 3x4meter) including HV cable 15m
• WBS-TA:  Vertical movement

1. V Stroke:1,450mm in Uprigh Bucky Position,
2. 1,526mm in Horizontal Bucky position.

• PBT-4 is a 4 way Floating Tabletop with. A large tabletop with extended travel enables all radiography studies with minimal patient movement. Fully fat tabletop without a frame on the edge makes cleanliness and odors free

• Power Rating - 32KW
• Generator - GXR-32S
• Rotor - Dual Speed Starter(DSS)
• Input Power - 400/480VAC, Three phase
• Line Frequency - 50/60Hz
• X-ray tube - DXT-12M, (0.6/1.2mm, 300kHU)
• Tube Voltage - 40 to 150kV, 1kV Step
• Tube Current – 10 to 640mA
• Output - 640mA@81kV,  500mA@104kV, 400mA@130kV, 320mA@150kV
• Time Range - 1ms to 10s
• mAs Range - 0.1 to 800mAs
• Reproducibility - Coe­cient of Variation : kV < 0.005, Time < 0.005,mAs < 0.01
• Accuracy - kV < ±(1%+1kV), mA < ±(3%+1mA), Time <±(1%+0.5ms), mAs < ±(3%+0.1mAs)
• Linearity - Coe­cient of Linearity < 0.01 : CL = (X1-X2)/(X1+X2), where X is mR/mAs
• Mechanical Parts:

1.   V Stroke:1,450mm in Upright Bucky
2. Position, 1,526mm in Horizontal Bucky position.

Click Here To Download Catalogue
