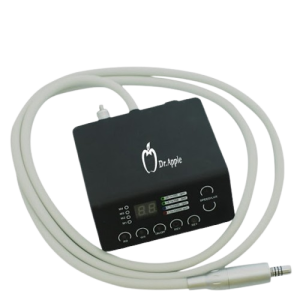

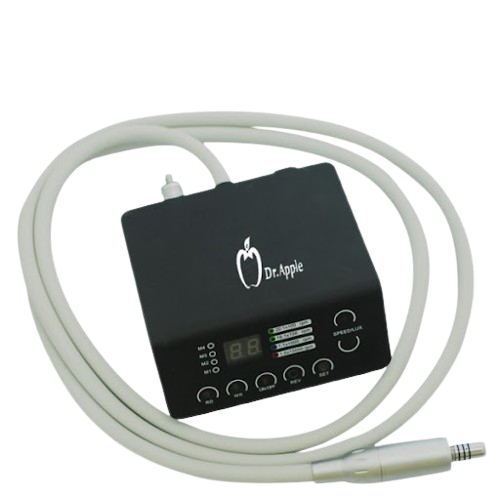

Appledental Electric Motor P-37

The Appledental Electric Motor P-37 features an adjustable rotor speed and a convenient SET key for selecting precise handpiece transmission ratios. Designed for versatility and control, it enhances operatory efficiency and adapts seamlessly to various handpiece types for optimal performance.

Product Features:

• By pressing the "SET" key to select the matching handpiece transmission ratio
• Rotor Speed can be adjusted
• You can change the direction of the motor
• The program can be set according to individual usage archive

SPECIFICATIONS

ADAPTER:

• Input voltage: AC 110V~AC 240V

• The output voltage: DC 32V  4A(MAX)

• Output Power: 130W(MAX)

MOTOR:

• Rated voltage: DC 32V

• Maximum torque: 3N/cm

• range of rotation: 2000-40000 r / min

• Cooling air pressure: 0.05MPa~0.3MPa

• Cooling water pressure: 0.2MPa

• Sterilization temperature: 134℃

Components included :

• Charger Base

• AC Adapter

• Main Unit

• Contra-angle

• LED light (2 pcs)

• User manual

Assembly Process

• Connect the endo file bracket to the contra-angle.

• Ensure the contra-angle is firmly engaged.

• Attach the main unit to the contra-angle - make sure the unit is switched off before proceeding.

• Confirm the file bracket is securely connected.

This system brings advanced panoramic diagnostics into a modern dental practice environment. Equipped with a linear CMOS flat-panel sensor, dynamic automatic image-focusing, integrated touchscreen, and ergonomic patient positioning, the device supports a range of panoramic programmes (adult, child, sinuses, TMJ, bitewing) and optional one-shot cephalometric imaging. With a clean, minimalist design and upgrade pathways, it fits clinics where space is limited but quality cannot be compromised.

Product Features

• Dedicated linear sensor for the best image quality.

• Ambient lighting creates a comfortable atmosphere for the patient and allows for monitoring the unit status from a distance.

• Adult and, more importantly, child programs are crucial for ECO low dose examinations, allowing high diagnostic image quality for both overview and demanding diagnostic tasks.

• Latest sensor design, technology, and unit robotics have been used to achieve high precision level of detail and smooth, quiet operation. The machine allows for repeated exposures without having to wait.

Technical Specifications

Sensor Technology	CMOS Flat Panel, CSI Flat Panel for ceph
Pixel size	100 µm
Focal Spot	0.5 (IEC 336 / 1997)
Tube Voltage	60 - 86 kV
Tube Current	2.5 - 10 mA
Exposure time 2D	4.6 - 14.2 seconds
Exposure Time Ceph One-Shot	0,5s adult, 0,2s child
Ceph Image Size	240x300 mm
Weight	109kg without ceph, 137kg with ceph
Panoramic Programs	in total 9: adult pano, child pano, dentition, BW, TMJ, sinuses, half dentition left, half dentition right, anterior teeth.
Ceph Programs	LL 30x24, LL18x24, AP, PA, Carpus
Patient Sizes	Child, teenager, woman, man
Software	OrisWin DG Suite
Features	Panoramic, panoramic upgradable to 3D and ceph, panoramic with ceph upgradable to 3D.
Footprint	140x110 cm without CEPH, 240 x 110cm with CEPH
Patient position	Standing or sitting
Wheelchair acessible	Yes

Technical Drawing

Click here to download Catalogue

• Made in UK and guaranteed accurate to ISO 81060-1
• Range 0–300mmHg, with the scale graduations starting at zero
• Clear white face with sharp black scale
• New flexible shock mount resists any damage to the gauge
• Fine red pointer gives precise indication
• Smaller, lighter and easily portable
• Weighted, 5x Castor Base
• Fitted with your choice of Velcro or Ambidex cuff
• Tough bright white ABS construction with built in carrying handle
• Lightweight ABS cuff container which is very easy to clean

1. The microprocessor-controlled timer brings high-tech X-ray imaging at your fingertips.
2. The control panel allows an accurate and fast exposure time selection while protecting the head during X-ray examinations.
3. Fitted with 70KV 8mA tube with preheating grid, the machine has been specially designed for intraoral dental diagnosis applications.

Product Features

• Obtain the most appropriate exposure setting by selecting among 2 patient sizes, 9 programs and 3 detectors. Optional DAP available.

• Available as a mobile and wall-mounted version. Four different extension arm lengths and possibility to place the timer remotely, for even greater installation freedom and ease of use.

• Get the image information you are looking for. Select the voltage 60 kV for perio application to reveal statement of ligaments or 70 kV for endo to see more hard tissue contours.

Technical Specifications

• Choose among 4 different extension arm lengths to make your intraoral unit perfectly fit into your dental studio. You can select standard 30 cm, 60 cm or 80 cm and optional 100 cm arm.
• Xline’s rectangular beam limiting device (2x3cm or 3x4cm) permits significant dose reduction.
• The mobile version is the ideal choice for dental clinics looking for maximum operational flexibility.
• 20/21 cm standard or 30 cm optional collimator available.
• With a cable length of 10 m, the remote hand switch is easy to mount where needed.
