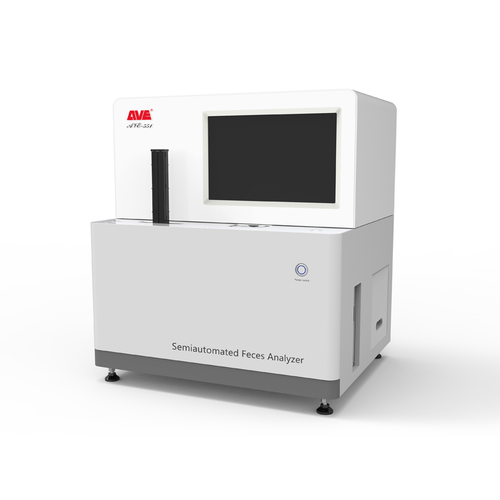

AVE-551 Semi-automated Feces Analyzer

Parameters Detected

• by Microscopy: RBC, WBC, Fat Globule, Crystal, Parasitic Ova and other feces formed elements. Sub-classifications are also available with manual on-screen verification.
• by Rapid Test Cards: FOB, transferrin, Rotavirus, Adenovirus, Coxsackie Virus, Helicobacter pylori, etc.

Work Principle

• Automated Morphological Microscopy and Immunochemical Method

Product Features

High Positive Detection Rate

• Unique designed and patented sample preparation cupguarantees more efficient collection of pathological elements, especially parasite ova, from feces sample.
• Intelligent adjustment on field of vision and automatic multi-layer focusing system captures images layer by layer and extracts parameters to avoid un-detection of pathological elements.

High Degree of Intelligence

• Flexible options of rapid test kits
• Automatic identification of positive and negative results of rapid test kits.
• Cuvettes lining-up system ensures high comprehensive throughput.
• Suspicious elements warning system makes self-learning function possible.
• Segmentation verification system reduces workload of lab staff.

High Reliability and User Friendliness

• Disposable high-precision cuvette eliminates risk of tubing system blocking and carryover caused by incomplete cleaning.
• Touch screen brings easy operation.
• Report displays both images and results.

Technical Parameters

• Automated Morphological Microscopy and Immunochemical Method
• Parameters Detected: -by Microscopy: RBC, WBC, Fat Globule, Crystal, Parasitic Ova and other feces formed elements. Sub-classifications are also available with manual on-screen verification -by Rapid Test Cards: FOB, transferrin, Rotavirus, Adenovirus, Coxsackie Virus, Helicobacter pylori, etc.
• Throughput:  Up to 60 tests / hour
• Recovery Ratio of Formed Elements: ≥80%
• Reproducibility (CV):  ≤ 20% at concentration level of 20-200 cells/μl; ≤12% at concentration level of 500-1000 cells/μl; ≤8% at concentration level of 5000 cells/μl
• Carryover Ratio of Formed Elements: ≤1 cell/μl at concentration level of 4600-5400 cells/μl; ≤2 cells/μl at concentration level of 9200-10800 cells/μl
• Loading Capacity of Cuvettes: 50 pieces
• Memory: Min. 200,000 results, including all images captured
• Built-in Computer: Yes
• Barcode Reader: External
• Printer: External and Laser
• Interfaces: Bidirectional with LIS/HIS
• Power: AC 100V-240V, 50-60Hz, 200VA
• Dimensions: 520mm*440mm*552mm
• Weight: 40kg

• Results in 20 Seconds

• 100µL sample drawn directly from primary EDTA tube

• Fully automated, walk-away operation

• Random access

• Positive patient identification via internal barcode reader

• Compatible with pediatric tube



• Outside Dia.: 87mm
• Material of Construction: Glass
• Capacity: 500mL
• Labware Outside Dia. - English: 3.4"
• Labware Capacity - English: 16.9 oz.
• Graduation Range: 100 to 500mL
• Height: 118mm
• Disposable/ Reusable: Reusable
• Labware Body Color: Clear
• Graduation Subdivisions: 100ml
• Beaker Type: Low Form
• Labware Outside Dia. - Metric: 87mm
• Series: Hauler 4x4 Crew Diesel
• Special Features: Pouring Spout
• Labware Inside Dia. - English: 3.2"
• Sterile/Non-Sterile: Non-Sterile
• Labware Inside Dia. - Metric: 81mm
• Labware Body Material: Glass
• Color: Clear
• Labware Height - English: 4.6"
• Labware Height - Metric: 118mm
• Labware Basic Material: Glass
• Item: Low Form Beaker
• Glassware Class: Not Rated
• Graduations: Yes
• Labware Capacity - Metric: 500mL
• Autoclavable: Yes

• Made of high quality PP material with good transparency.
• Applied for Gilson/Finland/Eppendorf Pipettors.
• Carefully inspect of raw material and manufactured under strict process check, all tips are with excellent accuracy and precison.
• Special siliconizing on the inner surface ensure no liquid adhesion and accurate sample transfer.
• Standard tips and filter tips can be autoclaved, high temperature sterilization acceptable.
