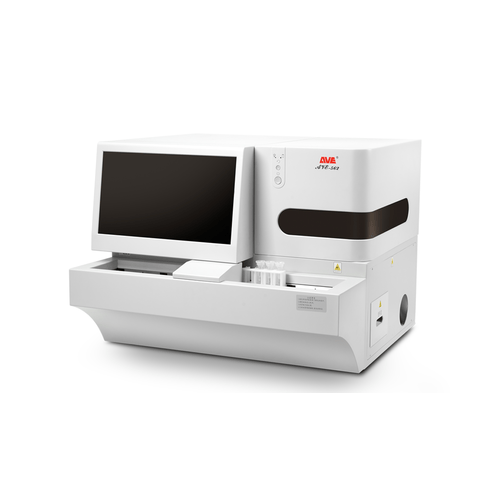

AVE-562 Fully Automated Feces Analyzer

Instrument Work Flow

• Physical Exams:  Image Stored;
• Sample Preparation:  Diluted, Mixed, Filtrated and Recycled;
• Formed Elements Test by Microscopy:  Full-fieled Scanned, Located and Tracked, Recognized, Classified and Counted;
• Occult Blood Test, Virological Test, Bacteriological Test:  Coloration, Image Capture, Automatic Identification.

Parameters Detected

• Parameters Detected by Microscopy:  All types of visible Feces Formed Elements can be detected and identified;
• Physical Test:  Physical parameters like color, character, etc. can be evaluated by automatic image capture;
• Fecal Occult Blood:  Automatic analysis of occult blood available;
• Extensible Tests:  Routine tests like urine, hydrothoax, cerebrospinal fluid, gastric juice, and sperm tests etc. are under development;
• Bacteriological Test:  Colloidal gold method test parameters, like helicobacter pylori etc. can be evaluated automatically;
• Virological Test:  Colloidal gold method test parameters, like rotavirus, adenovirus, coxsackie virus etc. can be evaluated automatically.

Work Principle

• Physical Test:  Physical character of feces sample will be recorded with images captured through automatic barcode reading;
• Morphological Test:  Use automated morphological microscopy technology to capture real images of feces formed elements, and then locate and track, recognize, classify and count them;
• Chemistry Test:  Capture images of coloration on various colloidal gold cards and automatically evaluate the parameters of fecal occult blood, virological test and bacteriological test etc.

Product Features

• Sample dilution, mixing, filtration and aspiration are done automatically by the analyzer. It’s clean and pollution-free.
• The whole work process, from test card and counting chamber loading to sample test and waste treatment, is completely walk-away automation;
• Dynamic filter design enables efficient recycling of useful elements from the sample to avoid blocking and improve test accuracy;
• High precision cuvette avoids the possibility of flow cell blockage and carryover from sample to sample and easy maintenance on tubing system;
• Routine feces formed elements like red blood cells, white blood cells, parasitic ovum, etc. are   identified, classified and counted automatically be the analyzer. And some special pathological formed elements need to be identified, classified and counted by manual verification on the images captured;
• Complete report illustrated with images and diagrams provides meaningful reference for clinic diagnosis.

Technical Parameters

• Lowest operation and tip ejection forces
• Fully autoclavable
• Ultra light weight with space-age materials
• Secondary adjustment option for various liquid classes
• Spring loaded tip con
• For transferring molecular samples and PCR mix solutions.
• One set is for DNA work and the other for RNA work. Each with the following specs
• Light weight, traditional tip shaft, and will fit all generic brands of tips
• Equal to or better than accuracy and precision compared to ISO 8655, so results can be trusted.
• Easy and quick volume adjustment with or without gloves. Foolproof volume lock prevents accidental volume changes.
• Low maintenance and autoclavable 121° for at least 20 minutes
• Quick release

• Auto zero function: Manual blanking not required
• Dual wavelength measurement system:
• 2 wave lengths 455nm and 575nm
• Plays major role to remove the interference caused due to Hemolysis & turbidity of sample
• LED Light source:
• LED does not require replacement as it lasts longer
• As compared to Lamp, LED are more suitable as there is no intensity fluctuations
• No warm up time required.
• Flexible unit selection:
• Two units either mg/dl or umol/L are selectable, ease of reporting
• Compact slot for Capillary:
• Accuracy of results are directly related to proper alignment of Capillary
• B-111 has the easiest mode to ensure precise values
• Data transfer:
• External device can be connected to instrument through RS232 por
• USB port

• Light source - LED
• Wavelength - 455nm and 575nm
• Net weight - 1kg
• Measuring range - 0-30 mg/dl , 510 umol/L
• Display - 16×2 LCD module with backlight
• Auto calibration - Yes
• Sample type - Serum or plasma
• Sample volume - 40-80μL
• Test time - <5sec
• Units - mg/dl or umol/L
• Dimensions - 150 (W) × 115 (H) × 190 (D) mm
• Interface - RS232
• Reading cuvette - Heparinized micro capillary holder
• Storage temperature - 15-40°c
• Power supply - DC 9V(DC adapter)
• Power consumption - <2W

• Made of high quality PP material with good transparency.
• Applied for Gilson/Finland/Eppendorf Pipettors.
• Carefully inspect of raw material and manufactured under strict process check, all tips are with excellent accuracy and precison.
• Special siliconizing on the inner surface ensure no liquid adhesion and accurate sample transfer.
• Standard tips and filter tips can be autoclaved, high temperature sterilization acceptable.

• Rotor capacity: 12 x 1.5/2.0 mL vessels, 2 x PCR strip
• Max. speed: 14,100 x g (14,500 rpm)
• Extremely compact footprint — measures 9”W x 4.”H x 9ó”D!
• Aluminum rotor accommodates twelve 1.5- or 2.0-mL tubes (maximum diameter of 11 mm)
• Rotor can be autoclaved at 121°C for 20 minutes
• Minimal sample heat transfer — maximum of 12°C after 20 minutes at max speed
• Eliminate costly repairs with the low maintenance drive
• Soft-touch lid closure for ergonomic lid locking — and releases automatically at the end of a run
