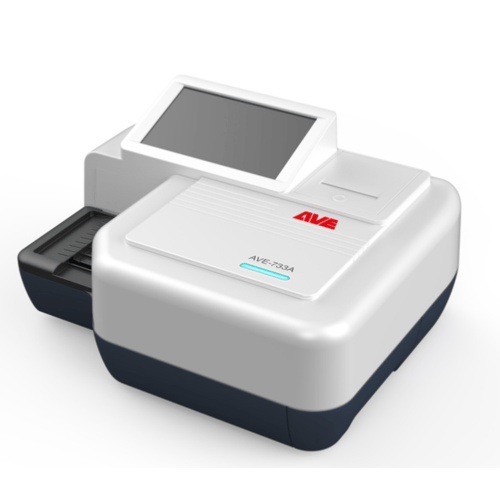

AVE-733A Urine Analyzer

Parameters Detected

• Parameters: BIL, URO, KET, VC, GLU, PRO, BLD, PH, NIT, LEU, SG, MALB, CRE, Ca

Work Principle

• Principle: Reflectance photometry

Product Features

• High throughout put up to 514 tests/hpurl LCD touch screen with user-friendly interface
• Automatic correction on the influence of non-specificity,pH, SG and color on the test results
• Automatic collection of used test strips
• Built-in low noise thermal printer,External printer connectable
• Automatic results saving and uploading function avaliable
• With power-on self-checking and automatic fault reporting system. Automatic error warning system LCD Touch Screen
• NMPA approved original quality control materials avaliable

Technical Parameters

• Parameters: BIL, URO, KET, VC, GLU, PRO, BLD, PH, NIT, LEU, SG, MALB, CRE, Ca
• Throughput: ≤514 tests/hour
• Repeatability: test result CV≤1%
• Accuracy: The difference between test result and target value is no more than one level, no false nagative result when test with positive reference solution and no false positive result when test with negative reference solution
• Stability: test result CV≤1% with power on of 8 hours
• Strips: 11,12,14 parameter optional
• Storage: 100000 test results
• Printing: built-in thermal printers, or external printer optional
• Working Temperature: 5-40℃
• Relative Humidity: 30%~80%
• Working Voltage: AC100-240V, 50/60Hz
• Power: ＜45VA
• Dimensions: 380*320*190mm
• Weight: 4.5kg

• Made of high quality PP material with good transparency.
• Applied for Gilson/Finland/Eppendorf Pipettors.
• Carefully inspect of raw material and manufactured under strict process check, all tips are with excellent accuracy and precison.
• Special siliconizing on the inner surface ensure no liquid adhesion and accurate sample transfer.
• Standard tips and filter tips can be autoclaved, high temperature sterilization acceptable.

• Speed: 11,800rpm with 24- place rotor
• RCF: 14,000g with 24-place rotor
• Acceleration: 0-11,800rpm in 60 seconds, with 24-place rotor
• Brake: Automatic
• Noise: 62dB running with 24-place rotor
• Motor: High precision AC/DC series wound motor, brush gear, computer wound coil winding, balance armature and high speed bearings.
• Timer: 0-15 minute timer, graduated in 1 minute increments. Automatic switch at zero
• Weight: 5.1Kg net (without rotor)
• Dimensions: 23.5cm height x 27cm diameter, footprint 16cm diameter
• Construction: Aluminium casing with a steel lid
• Finish: Body cream white baked enamel, with matt black baked enamel lid

Click Here To Download Catalogue

• Color: Blue
• The outer diameter of the lancet: 28G
• Packing: 50 Pieces

• Parameters: Na+,K+,Cl-, iCa++ / Li
• It works on ISE principle
• Sample Type: Whole blood, Serum, Plasma, Urine
• Low reagent consumption
• Sample requirement is only 90ul
• 60 samples per hour
• Automatic two point calibration after 4hrs and one point calibration with each sample analysis
• Air bubble detection
• Track reagents consumption and provides alerts
• For low reagent volume
• Precision testing facility to get CV and SD
• Trilevel Quality Control with LJ plots of last 30days
• Low aspiration volume
• Fast sample processing
• Accurate and Precise results

Click Here To Download Catalogue

• Lowest operation and tip ejection forces
• Fully autoclavable
• Ultra light weight with space-age materials
• Secondary adjustment option for various liquid classes
• Spring loaded tip con
• For transferring molecular samples and PCR mix solutions.
• One set is for DNA work and the other for RNA work. Each with the following specs
• Light weight, traditional tip shaft, and will fit all generic brands of tips
• Equal to or better than accuracy and precision compared to ISO 8655, so results can be trusted.
• Easy and quick volume adjustment with or without gloves. Foolproof volume lock prevents accidental volume changes.
• Low maintenance and autoclavable 121° for at least 20 minutes
• Quick release
