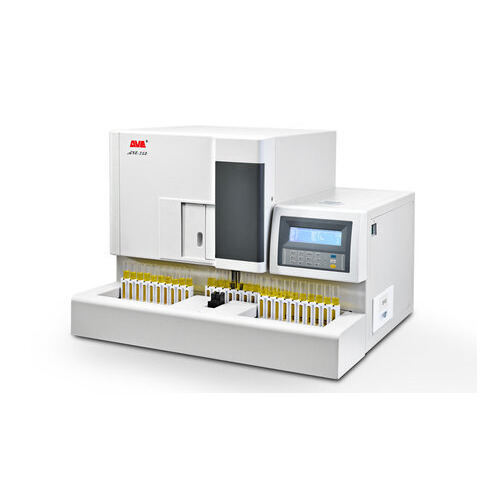

AVE-752 Fully Automated Urine Analyzer

Brands: AVE

~~$0.00~~

Shipped From Abroad

The AVE-752 Fully Automated Urine Analyzer is a high-throughput diagnostic instrument that automates the urinalysis process, delivering accurate results in under 5 minutes. It’s ideal for busy clinical labs and hospitals.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Sku:

SF1033560130181-4

Tag:

Urine Analyzer

Brands:: AVE

Description

Key Features

Urine Chemistry Parameters: 11,12,14 urine chemistry parameters are measured, depending on various test strips types；
Physical Parameters: Color, turbidity and conductivity are measured as well.

Work Principle

Reflectance Photometer

Product Features

Fast, reliable and cost-effective;
Innovative cassette strip loading system;
Unique sample sprinkling technology to avoid un-detection and interference;
Separate module for measuring urine physical parameters*;
Automatic quality control analysis and self-check;
Optimized all-round washing technology to prevent cross contamination;
Unidirectional or bidirectional interface with LIS/HIS;
Software and language upgrades by USB stick.

Technical Parameters

Evaluated parameters: Bilirubin (BIL), Urobilinogen (URO), Ketones (KET), Ascorbic acid (AsA), Glucose (GLU), Protein (PRO), Blood (BLD), pH (PH), Nitrite (NIT), Leukocytes (LEU), Specific gravity (S.G.), Microalbumin (ALB)*, Creatinine (CRE)*, Calcium (Ca)*;
Memory Capacity: Min. 20,000 results
Test Strips adding capacity: 200 strips
Throughput: 100~240tests / hour
Min. Sample volume: 2.0 ml
Max. Sample loading number: 6 racks of 10 tubes
Built-in Barcode reader: Yes
Printer: Laser, external, optional
Interfaces: USB, RS232, LAN
Dimensions (main unit): 680 x 650 x 545mm (L x D x H)
Weight (main unit): 53kg
Power (main unit): 100-240V~50/60Hz, 300VA

Additional information

Weight	53 kg
Dimensions	68 × 65 × 54.5 cm
