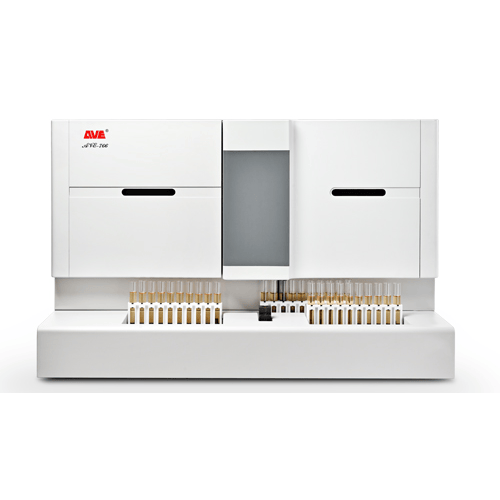

AVE-766 Urine Formed Elements Analyzer

Parameters Detected

• All types of Urine Formed Elements are classified and counted, with automatic erythrocytes morphological analysis available  and real images and statistical diagrams displayable and printable;
• It is connectable to Automatic Urine Analyzers and a comprehensive report is generated;
• Urine physical indexes are reportable;
• Extensible tests of Hydrothoax, Cerebrospinal Fluid etc. can be don as well.

Work Principle

Product Features

• Made strictly according to ISLH Recommended Reference Procedure for the Enumeration of Particles in Urine;
• Double microscope works simultaneously to improve throughput sharply up to 200 tests / hour;
• Un-centrifuged urine samples at cutoff concentration level of 3-5cell/µl are detectable;
• Automatic sampling system with liquid level detection;
• Automatic recognition, classification and quantitation of urine formed elements;
• Precise erythrocytes morphological analysis helps to determine the source of hematuria;
• Real whole view-field microscopic images of urine formed elements are presented;
• Automatic notice of verification and on-screen verification, no additional microscopic review needed;
• Characteristic parameters of urine formed elements are available for further clinical research;
• Standardized and confirmatory analysis report with both images and diagrams available;
• Self-learning ability continuously improves the recognition accuracy;
• Unique morphological quality control available;
• Unidirectional or bidirectional interface with LIS/HIS;
• Software and language upgrades by USB stick;
• Combinable with automatic urine analyzers.

Technical Parameters

• Auto-detected Urine Formed Elements: Normal red blood cells (NRBC), Abnormal red blood cells (ARBC), White blood cells (WBC), Casts (CAST), Epithelial cells( EPI), Yeast (YST), Crystals (CRYS), Mucus (MUC) and Bacteria (BAC). Further sub-classification is available with manual on-screen verification!
• Magnification: Standard 10X & 40X images
• Memory: Min. 200,000 results (including all images captured)
• Min. Sample volume: 2.0 ml
• Sample level detection: Yes
• Max. Sample loading number: 6 racks of 10 tubes
• Throughput: Up to 200 tests / hour
• Built-in Barcode reader: Yes
• Printer: Laser, external, optional
• Interfaces: USB, RS232, LAN
• Dimensions (main unit): 825 x 650 x 545mm (L x D x H)
• Weight (main unit): 79kg
• Power (main unit): 100-240V~50/60Hz, 450VA
