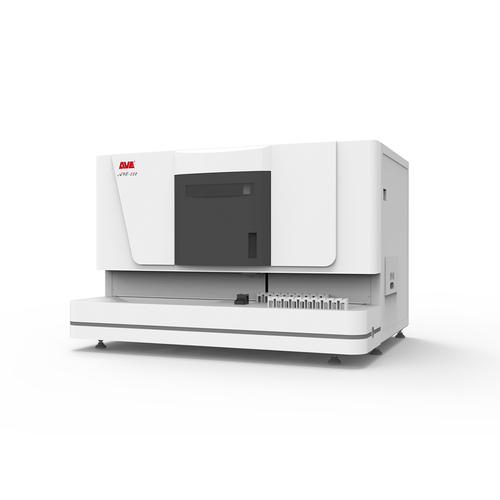

AVE-772 Integrated Urinalysis Analyzer

Brands: AVE

~~$0.00~~

Shipped From Abroad

The AVE-772 Integrated Urinalysis Analyzer automates the urinalysis process, delivering rapid and accurate diagnostic results in under 5 minutes. With its user-friendly touchscreen, integrated printer, and compact design, it is ideal for clinical and point-of-care settings.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Sku:

SF1033560130181-1

Tag:

Urine Analyzer

Brands:: AVE

Description

Parameters Detected

Chemistry Measurements: 11 , 12, 14 parameters available
Microscopy Measurements: RBC, WBC, Epithelial Cells, Crystal, Casts, Mucus, Yeast , Bacteria, etc. Further sub-classification is available with manual on-screen verification
RBC Morphological Analysis: automatic analysis and generated with diagrams and images
Physical Measurements: color, turbidity, specific gravity and conductivity.
Extensional Measurement: pleuroperitoneal fluid , cerebrospinal fluid, gastric fluid , etc

Work Principle

Physical measurement: color, turbidity measured by RGB sensor; specific gravity measured by refractometer; conductivity measured by electrode method
Chemistry measurement: colorimetry
Microscopy measurement: Machine Vision Technology (Automated Morphological Microscopy)

Advantages

Unique design with both Chemistry and Microscopy measurements integrated, which makes both measurements done by sampling once.
Measurement Modes Optional: chemistry, microscopy, or chemistry+microscopy.

Product Features

Physical Measurement

Independent PMC module automatically measures color, turbidity, specific gravity and conductivity.
More accurate SG result measured by refractometer

Chemistry Measurement

Patent strip feeding device
Innovative sample sprinkling technology to avoid undetecllon
Test results traceable with images

Microscopy Measurement

Made strictly according to ISLH Recommended Reference Procedure for the Enumeration of Particles in Urine
Uncentrifuged urine sample at cutoff concentration level of 3-5 cell/ul are detectable
Precise morphological analysis of RBC helps to determine the source of heπ1atuna
Standardized and confirmatory report with both images and diagrams available. Pop ups indicate on-screen verification with no need to redo the measurement
Self-learning function continuously improves the recognition accuracy.
Un-centrifuged urine microscopy reference values available
CFDA approved quality controls of four levels available

Technical Parameters

Throughput
Chemsitry speed : up to 120T/H
Microscopy: ≥ 60T/H
Chem.+Micro.:: 60~120T/H
Min. sample volume: 5mL, 3mL intake for chemistrymeasurement and 0.5mL for microscope measurement
Sample preparation: native sample
Built-in barcode reading: Yes
Counting Chamber: 3 channel
Detection rate: ≥98% for sample at concentration of 5 cells/ul
Accuracy: For chemistry measurement, comparing to reference solution, results are within tolerance of one level or no false positive and negative; for microscopy measurement, ≥95%
Repeatability: For chemistry measurement , CV≤ 1%; for microscopy measurement, CV ≤7%
Carryover: At concentration of 4600-5400 cells/ul≤ 1cell/ul，At concentration of 9200-10800 cells/ul≤2cells/ul
Verification: Full-view field images + segmented images
Report: comprehensive results with images and diagrams
Sampler: loading capacity of 60 samples
Strip tank capacity: 200 strips
STAT: available
Data interface: bidirectional
LIS/HIS connection: available
Results storage: ;;. 200,000 results
Dimensions: 825×650×545mm’ Weight: 73kg
