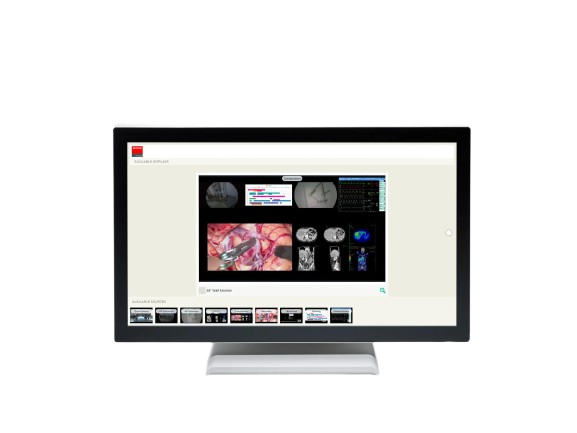

Barco AMM 215WTTP

Brands: Barco-Health

~~$0.00~~

Shipped From Abroad

The Barco AMM 215WTTP is a 21.5″ Full HD medical touchscreen display designed for clinical and OR settings. It integrates precise capacitive touch, a bezel-free design for easy cleaning, and medical-grade certification to support reliable touchscreen interaction during procedures.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Brands:: Barco-Health

Description
Reviews (0)

Description

The AMM 215WTTP is a medical grade 21.5″ touchscreen display combining Full HD resolution (1920 × 1080) with projected capacitive multi-touch capabilities. Engineered for clinical and surgical environments, it supports gesture control even with surgical gloves. Its bezel-free, sealed design enables easy disinfection. The display meets medical standards (Class I, IEC 60601-1, EMC) and offers flexible mounting options (VESA, stand). With USB HID support, it integrates seamlessly into computing platforms without custom drivers, making it ideal for digital operating rooms and medical carts.

Ergonomic interaction

The display features Projected Capacitive Touch screen technology with multi- and single-touch functionality. It allows clinicians to interact smoothly with the user interface on the monitor smoothly, even when wearing surgical gloves.

Designed for medical environments

The AMM 215WTTP is medically certified and fit for use in a highly demanding, mission-critical environment, such as the operating room. The bezel-free design allows for easy cleaning and disinfection, a major prerequisite in all surgical and clinical environments.

Easy to install

The AMM 215WTTP allows for easy installation onto a variety of computing platforms. It is Microsoft® Windows® HID (Human Interface Device) compatible if you use the USB touchscreen interface. No additional software driver is required for the general operation of the touchscreen.

Project Capacitive touchscreen with multi-touch and gesture input application
Full High Definition resolution
Medically certified
Bezel-free design
HID compliant for easy installation & integration on computing devices
Easy cleaning
Table stand allowing for a wide tilt angle
VESA mounting holes on the touch monitor unit for mounting on surgical boom arms, monitor arm and medical carts
Mounting holes on the table stand for various mounting options
Multilingual OSD user control

Key Features

21.5″ Full HD (1920 × 1080) resolution
Projected capacitive multi-touch (10-point)
Bezel-free, sealed design for cleaning and disinfection
Medical-grade certifications (Class I, IEC 60601, EMC)
USB-HID compatibility (plug-and-play)
Flexible mounting: removable stand + VESA 100 × 100 mm
Ergonomic tilt adjustment
Video inputs: DVI-D, VGA (HD-15)
Low power consumption (~ 27 W)

Specifications

Category	Specification
Screen Technology	TFT AM LCD / LED Backlight
Active Screen Size (Diagonal)	21.46″ (545.2 mm)
Active Screen Size (H × V)	476 × 267 mm (18.7 × 10.5″)
Aspect Ratio	16:9
Resolution	1920 × 1080 (Full HD)
Pixel Pitch	0.248 × 0.248 mm
Color Support	16.7 million colors
Viewing Angle	178° (H) / 178° (V)
Luminance	250 cd/m² (typical)
Contrast Ratio	1000:1 (typical)
Touch Sensor	Projected Capacitive Touch (PCT), 10 points
Video Inputs	1 × DVI-D, 1 × VGA (D-Sub 15-pin)
Video Formats	Up to 1920 × 1080 @ 60 Hz; 31.47–82.3 kHz (Horizontal), 56–75 Hz (Vertical)
Interface	USB 2.0 Type B
Touchscreen Driver	Windows, Embedded Linux, Apple Mac OS
Power Supply	AC Input: 100–240 VAC / 50–60 Hz; DC Output: +12 VDC / 4.2 A
Power Consumption	Operating: 27 W; Sleep: 2 W; Off: 1 W
Dimensions (W × H × D)	518 × 314 × 46 mm (without stand); 518 × 352 × 219 mm (with stand)
Net Weight	~7 kg
Mounting Standard	Removable stand; 100 × 100 mm VESA mount
Operating Temperature	0 °C to 40 °C
Storage Temperature	–20 °C to 60 °C
Operating Humidity	20% – 80% RH, non-condensing
Storage Humidity	10% – 80% RH, non-condensing
Certification & Compliance	CE (Medical Device Class I), EMC (EN60601-1-2), UL/cUL (ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601 1), FCC (Part 15 Class B), CCC (GB4943.1, GB9254, GB17625.1), PSE
Green Compliance	RoHS, REACH

Reviews

There are no reviews yet.

Be the first to review “Barco AMM 215WTTP”

Quick Comparison

Barco AMM 215WTTP remove Oxygen Regulator (Japan Technology) remove Spinal Epidural Pack remove Render SD-H3000A Mobile ICU Ventilator remove Bettermed BT666EPZ Multi-function Electric Delivery Bed remove Bistos BT- 740 Patient Monitor remove

Name Barco AMM 215WTTP remove Oxygen Regulator (Japan Technology) remove Spinal Epidural Pack remove Render SD-H3000A Mobile ICU Ventilator remove Bettermed BT666EPZ Multi-function Electric Delivery Bed remove Bistos BT- 740 Patient Monitor remove


SKU SF1033560084-48 SF1033560084-25 SF1033560011-21 SF1033560084-51 SF1033560059-9

Rating

Price

~~$0.00~~

Stock

Availability

Add to cart

Description

Shipped From Abroad The Barco AMM 215WTTP is a 21.5″ Full HD medical touchscreen display designed for clinical and OR settings. It integrates precise capacitive touch, a bezel-free design for easy cleaning, and medical-grade certification to support reliable touchscreen interaction during procedures.

Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

In stock

Full brass+chrome plated
Easy to read dual scal gauge with screw-on polycarbonate lens for durability.
Precision engineered pressure compensated design flowmeter for precise flow.
Flowmeter with easy to read tube and virtually unbreakable transparent polycarbonate outer cover for strength and 360 visibility.
Sintered metal inlet filter to trap impurities.
Reliable external safety relief valve.
Flush feature permits emergency oxygen to 40LPM.

Delivery & Availability: Typically 2 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

In Stock It is for performing spinal/epidural or combined spinal/epidural or never-block loco-regional anaesthesia on patinet in clinical surgery.

Delivery & Availability:

Typically 2 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad

Delivery & Availability: Typically 21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

In Stock Function:Backrest tilting From 0°to 75° ±5° Hi-lo function Reverse:14°±1° Trendelenburg:12°±1°

Delivery & Availability:

Typically 2 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad Bistos BT - 740 Patient Monitor: Bistos Patient Vital Signs Monitor, ECG, Resp., SpO2, NIBP, Temp., BT-740. The Bistos BT-740 is a multi-parameter patient monitor with an 8.4" TFT Color screen. The standard paramaters are ECG, respiratory, SpO2, NIBP and temperature. Additional options are EtCO2, IBP, Multi-gas, CO and Masimo SpO2. The BT-740 has a fanless design for quiet operation. Delivery & Availability: Typically 7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Content

Ergonomic interaction

The AMM 215WTTP has been built with ergonomics in mind. The 21.5” screen is easy to operate and the perfect size and format for a variety of applications, including the digital OR and medical carts. Thanks to its Full HD resolution, clinicians have access to rich and detailed information. The display features Projected Capacitive Touch screen technology with multi- and single-touch functionality. It allows clinicians to interact smoothly with the user interface on the monitor smoothly, even when wearing surgical gloves. Designed for medical environments The AMM 215WTTP is medically certified and fit for use in a highly demanding, mission-critical environment, such as the operating room. The bezel-free design allows for easy cleaning and disinfection, a major prerequisite in all surgical and clinical environments. Easy to install The AMM 215WTTP allows for easy installation onto a variety of computing platforms. It is Microsoft® Windows® HID (Human Interface Device) compatible if you use the USB touchscreen interface. No additional software driver is required for the general operation of the touchscreen.

Project Capacitive touchscreen with multi-touch and gesture input application
Full High Definition resolution
Medically certified
Bezel-free design
HID compliant for easy installation & integration on computing devices
Easy cleaning
Table stand allowing for a wide tilt angle
VESA mounting holes on the touch monitor unit for mounting on surgical boom arms, monitor arm and medical carts
Mounting holes on the table stand for various mounting options
Multilingual OSD user control

Key Features

21.5″ Full HD (1920 × 1080) resolution
Projected capacitive multi-touch (10-point)
Bezel-free, sealed design for cleaning and disinfection
Medical-grade certifications (Class I, IEC 60601, EMC)
USB-HID compatibility (plug-and-play)
Flexible mounting: removable stand + VESA 100 × 100 mm
Ergonomic tilt adjustment
Video inputs: DVI-D, VGA (HD-15)
Low power consumption (~ 27 W)

Specifications

Category	Specification
Screen Technology	TFT AM LCD / LED Backlight
Active Screen Size (Diagonal)	21.46″ (545.2 mm)
Active Screen Size (H × V)	476 × 267 mm (18.7 × 10.5″)
Aspect Ratio	16:9
Resolution	1920 × 1080 (Full HD)
Pixel Pitch	0.248 × 0.248 mm
Color Support	16.7 million colors
Viewing Angle	178° (H) / 178° (V)
Luminance	250 cd/m² (typical)
Contrast Ratio	1000:1 (typical)
Touch Sensor	Projected Capacitive Touch (PCT), 10 points
Video Inputs	1 × DVI-D, 1 × VGA (D-Sub 15-pin)
Video Formats	Up to 1920 × 1080 @ 60 Hz; 31.47–82.3 kHz (Horizontal), 56–75 Hz (Vertical)
Interface	USB 2.0 Type B
Touchscreen Driver	Windows, Embedded Linux, Apple Mac OS
Power Supply	AC Input: 100–240 VAC / 50–60 Hz; DC Output: +12 VDC / 4.2 A
Power Consumption	Operating: 27 W; Sleep: 2 W; Off: 1 W
Dimensions (W × H × D)	518 × 314 × 46 mm (without stand); 518 × 352 × 219 mm (with stand)
Net Weight	~7 kg
Mounting Standard	Removable stand; 100 × 100 mm VESA mount
Operating Temperature	0 °C to 40 °C
Storage Temperature	–20 °C to 60 °C
Operating Humidity	20% – 80% RH, non-condensing
Storage Humidity	10% – 80% RH, non-condensing
Certification & Compliance	CE (Medical Device Class I), EMC (EN60601-1-2), UL/cUL (ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601 1), FCC (Part 15 Class B), CCC (GB4943.1, GB9254, GB17625.1), PSE
Green Compliance	RoHS, REACH

Full brass+chrome plated
Easy to read dual scale gauge with screw-on poly carbonate lens for durability.
Precision engineered pressure compensated design flow meter for precise flow.
Flow meter with easy to read tube and virtually unbreakable transparent poly carbonate outer cover for strength and 360 visibility.
Sintered metal inlet filter to trap impurities.
Reliable external safety relief valve.
Flush feature permits emergency oxygen to 40LPM.

It is for performing spinal/epidural or combined spinal/epidural or never-block loco-regional anaesthesia on patinet in clinical surgery. Component:

Epidural needle 16G,
Epidural catheter,
Epidural filter 0.2 um,
Catheter connector,
LOR syringe

Features: Main performance and Technical Index:

Ventilation mode: VCV, PCV, PSV, SIMV(VCV)+PSV, SIMV(PCV)+PSV, MMV, CPAP, Backup apnea.

Air circuit Performance:

Maximum safety pressure of air circuit: no more than 6kpa.
Inspiratory oxygen concentration: 21-100%.

Ventilation Performance:

Respiratory rate (f): 4-99 times / min,
Inspiratory time (Ti): 0.2-6 s,
Breath holding time (Tp): 0-2s,
Triggering pressure (Pt): inspiratory triggering pressure is - 2kpa-0kpa,
Tidal volume (Vt): 0-2000ml;
Maximum minute ventilation volume: not less than 18 L / min.
PSV：0～5 kPa,
Peep Pressure: 0-3kpa,
Inspiratory flow rate: 0-80 L / min.
SIMV frequency: 6-60 times / min,
Inspiratory pressure: 0-6kpa,

Alarm Performance:

Pressure High Limit (Ph) alarm: 2 ~ 6kpa, audible and visual alarm.
Pressure Low Limit (Pl) alarm: 0～2KPa, audible and visual alarm.
Minute ventilation High Limit (Mvh) alarm: audible and visual alarm when ventilation exceeds the set value.
Minute ventilator Low limit (Mvl) alarm: audible and visual alarm when ventilation is lower than the set value.
Power off alarm: Power off alarm immediately, and the alarm duration shall not be less than 120s.
Mute: no more than 2 minutes.

Monitoring Performance:

12.1 inch color LCD
Tidal volume (VT): 0 ～ 2000ml
Measured total frequency (Ftot), Spont. frequency (Fspont)
Minute ventilation (Mv).
I: E ratio.
Airway pressure (PAW).
Peak pressure (Ppeak)
Peep pressure: 0.1 ~ 2KPa
Pressure-Time and Flow-Time waveform

Technical Specifications

Model NO. - SD-H3000A

Type - Ventilator

O2 Concentration - 21%-100%

Use for - ICU Operating Room

Tidal Volume - 0-2000ml

Min Tidal Volume - 50-1500ml

I:E - 5.0:1~1:5.0

Peep - 0-40cm H2O

Kind - Gynaecology

Certification - CE, FDA, ISO13485

Group - Adult

LCD Display - With LCD Display

Trademark - RENDER

Transport Package - Wooden Package

Origin - China

HS Code - 9018907000

Max Load: 250KG(550lb) in movement
Material: steel electrostatic spraying
Function:Backrest tilting From 0°to 75° ±5°
Hi-lo function
Reverse:14°±1°
Trendelenburg:12°±1°
Handset
Abdomen auto-extension decompression
PU knee crutches
Adjustable hand grip
phenolic compact laminate (HPL) bed board
#304 stainless steel dirty bowl
Backrest angle indicator
Bumper wheels
Pedal remote control
Back-up battery

Accessories: 4pcs 5” Taiwan castor with central brake system, 1pair brake pedal, 2pcs PP side rails, 2pcs head and foot board,1 set MOTECK motor, 4pcs bumper wheels, 2pcs angle indicators, 1pc electric cable holder, 2pcs PU knee crutches, 2pcs hand grip, 1pc stainless steel dirty bowl, 1set high density foam mattress, 4pcs Dust cover. Click Here To Download Catalogue

Bistos BT - 740 Patient Monitor: Bistos Patient Vital Signs Monitor, ECG, Resp., SpO2, NIBP, Temp., BT-740. The Bistos BT-740 is a multi-parameter patient monitor with an 8.4" TFT Color screen. The standard paramaters are ECG, respiratory, SpO2, NIBP and temperature. Additional options are EtCO2, IBP, Multi-gas, CO and Masimo SpO2. The BT-740 has a fanless design for quiet operation. Features:

8.4" TFT Color Screen - (Optional Touch Screen Upgrade)
Standard parameters are ECG, Resp., SpO2, NIBP, Temp.
Ultra-low power consumption
Quiet operation
High accuracy SpO2 reading
Data transfer or firmware upgrade via USB
2 Years Manufacturer's Warranty

Technical Specifications:

Model		BT-740
Display		8.4" Color TFT Screen
ECG	Lead type	3/5 Lead
	Gain Selection	x0.25, x0.5, x1, x2, x4, auto
	Sweep speed (mm/s)	12.5, 25, 50
	Bandwith:(Diagnostic Mode)	0.05-130Hz
	Monitoring Mode	0.5-40Hz
	Surgery Mode	1-25Hz
	Strong Mode	5-20Hz
	Heart Rate Range (bpm)	Adult:15-300
	Heart Rate Range (bpm)	Pediatric/neonate: 15-350
Respiration	Method	Trance-thoracic Impedance
	Measurement Range	0-120rpm
	Sweep Speed (mm/s)	6.25, 12.5, 25
SpO2	Measurement Range	0-100%
	Accuracy (70-100%)	Adult/Pediatric	+/-2%
	Accuracy (70-100%)	Neonate	+/-3%
	Accuracy (0-69%)	Unspecified
	Perfusion Index	0.05-20%
Pulse Rate	Range (bpm)	25-250bpm
NIBP**	Method	Automatic (Oscillometric)
	Operation Mode	Manual/Auto/STAT
	Parameter	Systolic, Diastolic, Mean
	Systolic Range (mmHg)	Adult	40-270
		Pediatric	40-200
		Neonate	40-130
	Diastolic Range (mmHg)	Adult	10-210
		Pediatric	10-160
		Neonate	10-90
	Mean Range (mmHg)	Adult	20-230
		Pediatric	20-175
		Neonate	20-100
Temperature	Range	0-50°C
Temperature	Parameter	T1, T2 and TD
IBP"	Channel	2 Channel, 4 Channel
IBP"	Range (mmHg)	-50-400
Printer*	Type	Thermal dot array
	Print Speed (mm/s)	12.5, 25, 50
	Paper Size (mm)	50
CO2*	Sidestream	Masimo ISA / Bistos
CO2*	Mainstream	Masimo IRMA / Bistos
Multi-gas O2*		Masimo ISA
SpO2 Masimo*		Masimo SpO2
CO*	Method	Thermodilution
CO*	Range	0.2-20 L/min
Battery	Type (Capacity)	Li-ion (440mAh)
	Run Time	6 hour
	Charging Time	4 hour
Interface		RJ45, USB, Nursing Call
Warranty		2 Years
