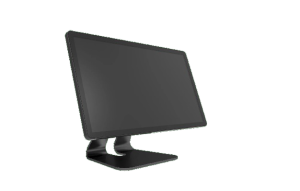

Barco MDAC‑2215

Brands: Barco-Health

~~$0.00~~

Shipped From Abroad

The Barco MDAC-2215 is a 15.6-inch Full HD medical touchscreen display designed for multimodal imaging. It supports precise capacitive touch even with surgical gloves, ergonomic use, easy mounting, and thorough cleaning – ideal for OR carts, trolleys, and point-of-care settings.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Brands:: Barco-Health

Description
Reviews (0)

Description

The MDAC-2215 is a compact 15.6″ touchscreen display built for healthcare environments needing reliable touch interaction. With Full HD resolution and projected capacitive (P-Cap) multi-touch, it supports gesture controls even when users wear gloves. It features an HID-compliant USB interface (no extra driver required), ergonomic tilt adjustability, VESA mounting for arms or carts, and a design optimized for easy cleaning and disinfection. It’s suited to surgical suites, diagnostic stations, and clinical carts requiring direct user input on imaging systems.

Features

15.6″ Full HD (1920 × 1080) capacitive touchscreen
Multi-touch (10-point P-Cap) support, glove-compatible
HID USB interface (plug & play)
Tilt-adjustable stand plus VESA 100×100 mounting
Designed for easy cleaning and disinfection
Compact form factor suited for OR carts and small systems
Multi-modal imaging support
Certified for medical use (CE, FCC)

Technical Specifications

Specification	Detail
Screen Technology	TFT LCD
Active Size (Diagonal)	~15.6″
Resolution	1920 × 1080 (Full HD)
Luminance	360 cd/m²
Color Support	16.7 million colors (max)
Contrast Ratio	1000:1 (typical)
Viewing Angle	Minimum 160°
Response Time	Up to 35 ms (Tr: 19 ms, Tf: 16 ms)
Touch Input	P-Cap, 10-point
Certifications	CE, FCC
IP Rating	IPX0 (no special ingress protection)
Operating Temp	0 °C to 40 °C
Storage Temp	–20 °C to 60 °C
Operating Humidity	0% to 90% (non-condensing)
Mounting Standard	VESA 100 × 100 mm
Dimensions (without stand)	224 × 370 × 28 mm
Dimensions (with stand)	250 × 370 × 170 mm
Net Weight	3.80 kg
