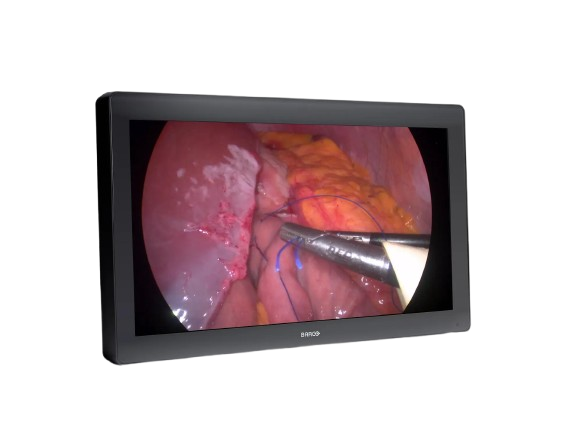

Barco MDFC‑8232 3xB

MDFC-8232 is a 31-inch near-patient monitor, designed to address the increasing demand for high-quality imaging that is typical of modern surgical environments. The proprietary video processing and advanced color calibration algorithms, combined with a wide color gamut LCD, result in high color accuracy and detailed images, exempt from artifacts, and with near-zero latency for optimal hand-eye coordination. In 2D mode, thanks to a resolution four times the conventional FHD, surgeons will benefit from richly detailed, color-correct images for UHD real-life patients' anatomy. In 3D mode, through the supplied ergonomic kit, composed of a light-weight frame and a replaceable 3D eye-shield, multiple users at the same time will be able to see the same FHD content, with excellent depth perception even from different viewing angles and distances. Available as either DP/HDMI™(MDFC-8232 3HB) or DP/SDI (MDFC-8232 3SB), this monitor is compatible with the most common 3D and 2D video formats typical of modern microscopes and laparoscopic camera systems. The highly durable and scratch-resistant full-glass front surface and the snap-in lockable connector cover result in a clutter-free and easy-to-clean design ideal for application in sterile environments. The front glass also minimizes reflection for better visibility. The design of the standard VESA-100 mounting plate allows easy mounting on surgical booms and spring arms. MDFC-8232 3HB variant is designed to deliver optimal performance for moving images and videos, ensuring seamless performance without latency. It has limited support for static content in interlaced formats (e.g., 1920x1080i). For full interlacing support, we recommend Barco 12G variants, which offer enhanced compatibility and performance. Please refer to the user guide for detailed supported timings and configurations

Key Features

• True 4K UHD (3840 × 2160) resolution

• Supports 3D viewing via circular polarization; 2D fallback

• Wide color calibration: BT.2020 & BT.709 compatibility

• Near-zero latency processing optimized for surgical hand-eye coordination

• Supplied ergonomic 3D eye-shield kit for stereoscopic viewing

• Durable, scratch-resistant full-glass front with minimal reflection

• Snap-in lockable connector covers for sterile environments

• VESA-100 mounting is compatible with surgical arms and booms

• DP / HDMI or DP / SDI variants available

• Failover capability (auto fallback to DVI)

• Multi-image support: PiP, mirror, rotation, screen clone

Specifications

• 8.4" TFT Color Screen - (Optional Touch Screen Upgrade)
• Standard parameters are ECG, Resp., SpO2, NIBP, Temp.
• Ultra-low power consumption
• Quiet operation
• High accuracy SpO2 reading
• Data transfer or firmware upgrade via USB
• 2 Years Manufacturer's Warranty

Click Here To Download Catalogue

• Multi-lens structure ensures high level of uniform luminance in its light spot.

• Light source is located between two eyes is able to cast least shadow on the surface.
• Also, the luminance angle moves freely with pivot joint structure.

• Rechargeable battery is interchangeable. With additional battery, no need to worry anymore about remaining power.

Click Here To Download Catalogue

• Ventilation mode: VCV, PCV, PSV, SIMV(VCV)+PSV, SIMV(PCV)+PSV, MMV, CPAP, Backup apnea.

• Maximum safety pressure of air circuit: no more than 6kpa.
• Inspiratory oxygen concentration: 21-100%.

Ventilation Performance:

• Respiratory rate (f): 4-99 times / min,
• Inspiratory time (Ti): 0.2-6 s,
• Breath holding time (Tp): 0-2s,
• Triggering pressure (Pt): inspiratory triggering pressure is - 2kpa-0kpa,
• Tidal volume (Vt): 0-2000ml;
• Maximum minute ventilation volume: not less than 18 L / min.
• PSV：0～5 kPa,
• Peep Pressure: 0-3kpa,
• Inspiratory flow rate: 0-80 L / min.
• SIMV frequency: 6-60 times / min,
• Inspiratory pressure: 0-6kpa,

Alarm Performance:

• Pressure High Limit (Ph) alarm: 2 ~ 6kpa, audible and visual alarm.
• Pressure Low Limit (Pl) alarm: 0～2KPa, audible and visual alarm.
• Minute ventilation High Limit (Mvh) alarm: audible and visual alarm when ventilation exceeds the set value.
• Minute ventilator Low limit (Mvl) alarm: audible and visual alarm when ventilation is lower than the set value.
• Power off alarm: Power off alarm immediately, and the alarm duration shall not be less than 120s.
• Mute: no more than 2 minutes.

Monitoring Performance:

• 12.1 inch color LCD
• Tidal volume (VT): 0 ～ 2000ml
• Measured total frequency (Ftot), Spont. frequency (Fspont)
• Minute ventilation (Mv).
• I: E ratio.
• Airway pressure (PAW).
• Peak pressure (Ppeak)
• Peep pressure: 0.1 ~ 2KPa
• Pressure-Time and Flow-Time waveform

• Compact, Portable, design for emergence transport;
• Convenient to set Ventilation mode and parameters;
• Airway press wave and multi-parameter monitoring, view patient’s status clearly;
• Power supply: AC, DC from ambulance, Battery;
• Multi-function hang-stand, convenient for ambulance and transfer beds.
