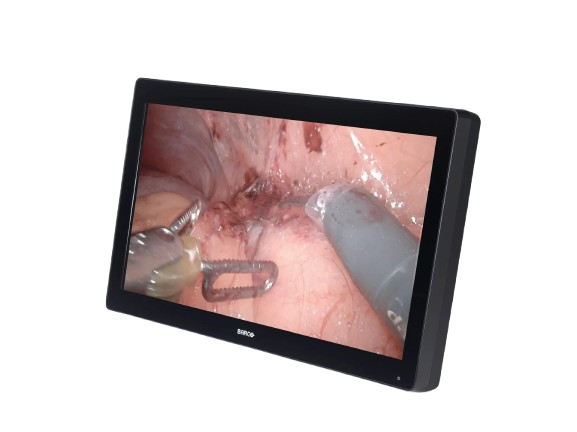

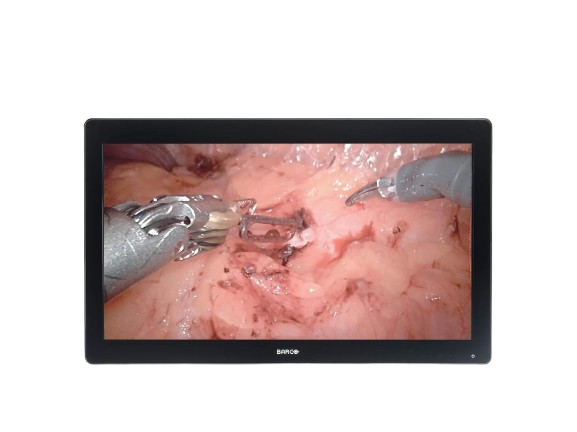

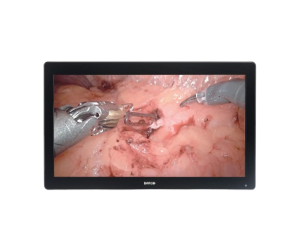

Barco MDSC‑8232 M3D

Brands: Barco-Health

~~$0.00~~

Shipped From Abroad

The Barco MDSC-8232 M3D is a 31-inch surgical display supporting both 2D and stereoscopic 3D imaging. It integrates Nexxis video-over-IP, delivers 4K/UHD resolution, and features ergonomic passive-glasses technology for accurate depth perception and superior surgical visualization.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Brands:: Barco-Health

Description
Reviews (0)

Description

The MDSC-8232 M3D is a 31-inch 2D and 3D surgical monitor that is compatible with Barco’s Nexxis video-over-IP solution.

100% compatibility with existing Nexxis installations

The display has a built-in MNA decoder, which means that it can be seamlessly integrated into an existing Nexxis architecture, just like any other Nexxis source. In a Nexxis configuration, the monitor is compatible with the most common 3D and 2D video formats typical of modern microscopes and laparoscopic camera systems. 3D sources become part of the full integration, including support for inter-OR sharing, remote management, streaming, and recording.

3D technology as part of your digital OR

The display is based on a circular polarization technology for 3D visualization with passive glasses. Thanks to the Nexxis integration, it automatically switches between 2D and 3D modes to show the video source in its best suitable format.

Visual comfort in a wide viewing area

In 3D mode, multiple users at the same time will be able to see the image with excellent depth perception and no visual discomfort in a large viewing area. The display also provides HD and 4K image quality with high color accuracy, detailed images, and no artifacts. Near-zero latency enables optimal hand-eye coordination.

The full-glass front surface is durable and scratch-resistant, making the display easy to clean. The design in the standard VESA-100 mounting plate allows easy mounting on surgical booms and spring arms.

Features

31-inch 4K UHD surgical display
2D / 3D imaging support with passive glasses
Nexxis video-over-IP integration
Circular polarization for stereoscopic viewing
Multi-image support (PiP, PbP, screen clone)
Failover and redundancy for safety
Scratch-resistant full-glass front
Ultra-low latency video processing
Easy cleaning and medical-grade design
VESA-compatible mounting options

Technical Specifications

Specification	Detail
Screen Technology	TFT AM LCD / IPS-PRO with LED backlight
Active Screen Size (Diagonal)	31.1″ (789 mm)
Active Area (H × V)	698 × 368 mm
Aspect Ratio	17:9 / 16:9
Resolution	4K / 2K (4096 × 2160) / UHD (3840 × 2160)
Pixel Pitch	0.1704 mm
Color Support	1.07 billion colors (10-bit)
Color Gamut	92% DCI-P3 / 105% Adobe
Viewing Angle	178° horizontal / 178° vertical
Luminance	Maximum 450 cd/m²; Calibrated 360 cd/m² @ 6500K
Contrast Ratio	1300:1 (typical)
Response Time	20 ms (typical)
White Point	Native: 7200K; Calibrated: 5600K, 6500K, 9300K
Gamma Curve	1.8, Video, 2.2, 2.4, DICOM
Keyboard	Capacitive 7-key touch keyboard
Video Inputs (2D)	DP 1.1, DP MST, DVI, 3G-SDI, 2× fiber SFP+ (Nexxis)
Video Inputs (3D)	DP, MST, DVI, 3G-SDI, 2× fiber SFP+ (Nexxis)
Video Outputs	2D: 3G-SDI loop, DVI clone; 3D: DVI selectable left/right
Power Supply	AC 100–240 VAC / 47–63 Hz → DC +24 V / 10 A
Power Consumption	Maximum 190 W; Low power 52 W; Power-off 1 W
Dimensions (W × H × D)	777 × 472 × 117 mm
Net Weight	15.3 kg
Mounting Standard	VESA 100 × 100 mm & 200 × 100 mm
Operating Temperature	0°C to 30°C
Storage Temperature	–20°C to 60°C
Operating Humidity	10%–90% RH (non-condensing)
Storage Humidity	5%–90% RH (non-condensing)
Protection Rating	IP20 (IP45 front side only)
Warranty	3 years
