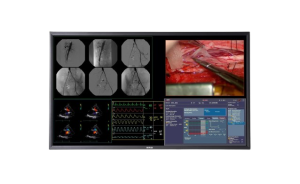

Barco MDSC‑8358

Brands: Barco-Health

~~$0.00~~

Shipped From Abroad

The Barco MDSC-8358 is a 58-inch 4K UHD surgical display offering ultra-large format imaging with DICOM compliance, failover support, and flexible multi-input connectivity. It’s built for hybrid ORs, interventional suites, and large-screen visualization workflows.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Brands:: Barco-Health

Description
Reviews (0)

Description

Perfect images in the surgical suite

The MDSC-8358 has been designed for use in hybrid operating rooms, interventional X-ray and cardiovascular suites. The MDSC-8358 delivers accurate DICOM-compliant grayscale and color images with ultra-low latency, consistent colors, and reduced noise, making it the preferred choice for real-time critical imaging.

All-around connectivity

Allowing DP, Dual Link DVI, and Single Link DVI interfacing, Barco’s MDSC-8358 offers a host of connectivity options, making it compatible with a large variety of OR and interventional X-ray video systems.

Reliable and safe performance

The large-size, ultra high-resolution LCD screen offers a safer and more efficient alternative to multi-monitor configurations deployed in surgical environments. The optional configuration with a redundant power supply architecture (RL) ensures stable and reliable operation in the most critical conditions.

The failover function allows automatic switchover to back-up video signals to ensure smooth, real-time imaging in the OR and safeguard patient safety at all times.

Key Features

58″ 4K UHD (3840 × 2160) large-format surgical display
LED backlight for stable illumination and uniformity
DICOM grayscale and color imaging compliance
Failover (automatic signal switch) for signal redundancy
Connectivity: DP 1.2, dual-link DVI, single-link DVI, optional Nexxis video-over-IP decoder
Multi-monitor replacement: supports multi-source imaging (quadrant drive, etc.)
Ultra-low latency video processing for hand-eye coordination
Slimline form factor for integration in hybrid suites
High brightness (~700 cd/m²) and high contrast (~4000:1)
Protective glass front versions are available
Medical-grade safety and performance compliance

Technical Specifications

Specification	Value / Detail
Screen Technology	a-Si TFT active matrix
Active Screen Size (Diagonal)	1473 mm (58.0″)
Active Area (H × V)	1270.08 × 721.44 mm
Aspect Ratio	16:9
Resolution	8 MP (UHD 3840 × 2160)
Pixel Pitch	0.33075 mm (H) × 0.334 mm (V)
Color Imaging	Yes
Color Support	16 million colors
Viewing Angle	178° horizontal / vertical
Maximum Luminance	700 cd/m² (typical)
Contrast Ratio	4000:1 (typical)
Response Time	9.5 ms (typical)
Housing Color	Black
Video Inputs	Dual-link DVI (2 × DVI for full screen) Single-link DVI (quadrant or 4-input) DP 1.2 SST (4K native or upscale) Optional Nexxis MNA-240 (video-over-IP)
Failover	Automatic switch to DVI input if primary signal fails
Power Requirements	90–264 VAC, 50/60 Hz
Power Consumption	400 W (max) 35 W (standby)
Dimensions (W × H × D)	Without front glass: 1318.5 × 776 × 145.8 mm With front glass: 1326.5 × 778 × 153.7 mm
Packaged Dimensions	1540 × 413 × 940 mm
Net Weight	45.5 – 57.5 kg (depending on version)
Packaged Weight	68.5 – 83 kg
Mounting Standard	VESA 400 mm
Screen Protection	Non-reflective protective glass (optional versions)
Operating Temperature	10–35 °C (performance), 0–40 °C (safety)
Storage Temperature	–20 to +60 °C
Operating Humidity	10% to 90% (non-condensing)
Storage Humidity	10% to 90% (non-condensing)
Certifications & Compliance	CE (Class I medical), IEC 60601-1, IEC 60601-1-2, ANSI/AAMI ES60601-1, FCC Class B, ROHS, REACH, WEEE
