Barco MDSC-8255
$0.00
Shipped From Abroad

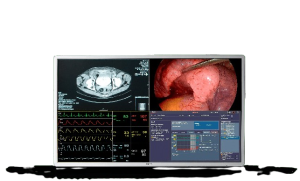

The Barco MDSC-8255 is a 55-inch 4K UHD surgical display designed for review and referral imaging in the operating room. It consolidates multiple image sources into a single, high-resolution screen with seamless integration into video distribution systems.
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Description
Barco’s MDSC-8255 is a 55-inch surgical display purpose-built for ultra-high resolution, multi-image viewing in the digital operating room. Thanks to its high-quality video performance and lightweight housing with shallow depth and thin bezel, it’s the ideal complement of any advanced video distribution system in the OR.
Large-screen 4K UHD resolution display for referral imaging
A future-proof choice for referral imaging in the OR, the MDSC-8255 can present information previously shown on four 27” monitors on one large screen, with all four images in full HD. Thanks to the integrated 4K decoder (optional) it offers seamless integration with Barco’s Nexxis video-over-IP solution.
Wall-mount flexibility
With its protective front glass, shallow depth, thin bezel, and lightweight design, the MDSC-8255 is perfect for wall mounting.
Delivering image quality on large screens
Color-calibrated, artifact-free images in 4K resolution: the MDSC-8255 presents surgeons with accurate, realistic images and excellent depth perception. Advanced video processing features and noise reduction algorithms, and a full 10-bit image processing chain make this display ideal for consultation of any kind of medical referral images inside the OR.
Key Features
-
55″ (54.6″ viewable) 4K UHD surgical display
-
TFT AM LCD / IPS with LED backlight
-
10-bit color processing, calibrated to ITU-709, DCI-P3, BT.2020
-
Max luminance ~ 500 cd/m²; stabilized ~300 cd/m² @ 6500K
-
Contrast ratio ~ 1100:1; response time 8 ms (gray-to-gray)
-
Supports multiple video formats: DP, HDMI, DVI, 12G-SDI, quad-link 3G-SDI
-
Multi-image support: Picture-in-Picture, Picture-by-Picture, mirror/rotation, failover mode
-
Protective scratch-resistant AR glass front
-
Side membrane keyboard control panel
-
VESA 200×200 & 600×200 mounting support
Technical Specifications
| Specification | Value / Detail |
|---|---|
| Screen Technology | TFT AM LCD / IPS with LED backlight |
| Diagonal Size | 54.6″ / 1388 mm |
| Active Area (H × V) | 1210 × 640 mm |
| Aspect Ratio | 16:9 |
| Resolution | 3840 × 2160 (4K UHD) |
| Pixel Pitch | 0.315 mm |
| Color Support | 1.07 billion (10-bit) |
| Color Calibration | ITU-709, DCI-P3, BT.2020 |
| Viewing Angle | 178° horizontal/vertical |
| Luminance | Max ~500 cd/m²; stabilized ~300 cd/m² @6500K |
| Contrast Ratio | ~1100:1 |
| Response Time | 8 ms (gray-to-gray typical) |
| White Points | 5600K, 6500K, 7600K, 9300K |
| Gamma Curves | Native, 1.8, Video, 2.2, 2.4, DICOM |
| Keyboard | Side membrane keyboard |
| Front Protection | Scratch-resistant AR glass, 2-sided |
| Video Inputs | DP 1.1, DP MST, HDMI 2.0, DVI, 3G-SDI, 12G-SDI, quad-link 3G-SDI (varies by version) |
| Video Outputs | 3G-SDI loop-through, DVI clone (downscaled) |
| Power Consumption | LED: 144 W (max); 12G version: ~162 W; MNA variant ~170 W |
| Dimensions (W × H × D) | 1259 × 733 × 87 mm |
| Net Weight | ~33.2 kg (LED variant) |
| Mounting | VESA 200×200 & 600×200 mm |
| Operating Temperature | 0°C to 35°C |
| Storage Temperature | –20°C to 60°C |
| Operating Humidity | 10% to 90% RH |
| Storage Humidity | 5% to 90% RH |
| Compliance & Certifications | IEC 60601-1, IEC 60601-1-2, ANSI/AAMI ES60601-1, EN60601-1, FCC Class B, CE, CCC, RoHS, REACH, WEEE |
