Benchtop Colorimeter

Brands: Scitek

~~$0.00~~

Shipped From Abroad

The lightweight and ergonomic design of the colorimeter and the benchtop stand make it ideal for quality control in the laboratory, field or manufacturing plan

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Sku:

SF1033560130127-83

Brands:: Scitek

Description
Reviews (0)

Description

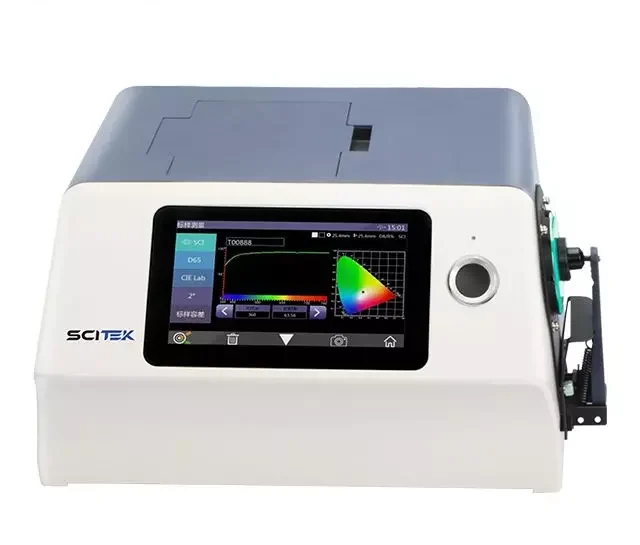

CM-B60 is a benchtop grating colorimeter which is developed by 3nh independently with independent intellectual property. The colorimeter has many features, like 7 inches TFT capacitive touch screen display, full illuminants, reflective d/8 and transmissive d/0 geometry(including or excluding UV). With very stable and precise color measurement, large storage and powerful PC software all makes CM-B60 ideal for color analysis within R&D and laboratory environments.

Benchtop Colorimeter Features:

Boasting high-end hardware configuration including a 7-inch TFT color capacitive touch-screen display, bluetooth 2.1, and a concave grating.
Features a double array 256 Image Element CMOS Sensor and employs a long-life stable LED along with UV LED technology.
Provides both reflective and transmissive spectrum readings, ensuring accurate Lab values and facilitating precise color formula calculations and color transmission.
Automatically identifies measuring apertures, with the flexibility to switch between four apertures: φ25.4mm/15mm/8mm/4mm, and the option for user customization.
Includes a built-in temperature sensor to monitor and compensate for measuring temperature, enhancing measurement precision.
Wavelength range spanning 360nm-780nm, with built-in cut-off options (400nm/420nm/460nm) for UV measurement (xenon lamp edition).
Equipped with an independent light source detector for continuous monitoring of light source conditions, ensuring reliability.
Offers multiple measurement modes, catering to Quality Management Mode and Sample Mode, meeting diverse user requirements.
Various optional accessories available, including a reflection sample holding tool, transmission fixture, micro 4mm aperture transmission test components, and instrument inversion test components, adaptable to various working conditions.
Generous data storage capacity, capable of storing up to 40,000 test results.
Features a built-in camera locating system for enhanced precision in measurements.
Enhanced functionality through powerful extensions in the PC software, providing users with additional capabilities.

Benchtop Colorimeter Specifications:

Model	CM-B60 Benchtop colorimeter
Optical Geometry	Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle; SCI (specular component included)/SCE (specular component excluded); Include UV / excluded UV light source; Transmittance: di:0°, de:0° (diffuse illumination: 0° viewing); SCI (specular component included) /SCE (specular component excluded); Include UV / excluded UV light source; Haze(ASTM D1003), Conforms to CIE No.15, GB/T 3978,GB 2893,GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7;
Application	It is used for accurate analysis and transmission of laboratory color. Apply in paints, inks, textiles, garments, printing and dyeing, printing etc industries for color transfer and quality control.
Integrating Sphere Size	Φ154mm
Light Source	360 nm to 780 nm, Combined LED Light, 400nm cut-off light source, 420nm cut-off light source
Spectrophotometric Mode	Concave Grating
Sensor	256 Image Element Double Array CMOS Image Sensor
Wavelength Range	360-780nm
Wavelength Interval	10nm
Semiband Width	5nm
Measured Reflectance Range	0-200%
Measuring Aperture	Reflective : Φ30mm/Φ25.4mm, Φ18mm/Φ15mm, Φ10mm/Φ8mm, Φ6mm/Φ4mm Transmissive : Φ25.4mm; Remark: 1. Automatic identification of switch caliber 2. Customized Configuration caliber and lens position
Specular Component	Reflectance: SCI&SCE / Transmittance: SCI&SCE
Color Space	CIE LAB, XYZ, Yxy, LCh, CIE LUV, Musell, s-RGB, HunterLab, βxy, DIN Lab99
Color Difference Formula	ΔE * ab, ΔE * uv, ΔE * 94, ΔE * cmc(2:1), ΔE * cmc(1:1), ΔE * 00, DINΔE 99, ΔE (Hunter)
Other Colorimetric Index	WI (ASTM E313, CIE/ISO, AATCC, Hunter), YI (ASTM D1925, ASTM 313), MI (Metamerism Index), Staining Fastness, Color Fastness, Color Strength, Opacity, 8° Glossiness, Gardner Index, APHA/ Pt-Co Index, 555 Index, Haze(ASTM D1003), Saybolt, Color code (ASTM D1500)
Observer Angle	2°/10°
Illuminant	D65,A,C,D50,D55,D75,F1,F2,F3,F4,F5,F6,F7,F8, F9,F10,F11,F12,CWF,DLF,TL83,TL84,TPL5,U30
Displayed Data	Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset
Measuring Time	About 2.4s (Measure SCI & SCE about 5s)
Repeatability	Spectral reflectance:Φ25.4mm/SCI, Standard deviation within 0.04% (400 nm to 700 nm: within 0.04%) Chromaticity value:Φ25.4mm/SCI, Standard deviation within ΔEab 0.01 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) Spectral Transmittance: Φ25.4mm/SCI, Standard deviation within 0.05% (400 nm to 700 nm: within 0.04%) Chromaticity value:Φ25.4mm/SCI, Standard deviation within ΔEab 0.02 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument Error	Φ25.4mm/SCI, Within ΔE*ab 0.12
Inter-instrument Error	(Average for 12 BCRA Series II color tiles)
Size	LWH=370x300x200mm
Weight	Approx. 9.6kg
Power	AC 24V, 3A Power adapter power supply
Illuminant Life Span	5 years, more than 3 million times measurements
Display	7-inch TFT color LCD, Capacitive Touch Screen
Data Port	USB & Bluetooth & Print serial port
Data Storage	Standard 5000 Pcs, Sample 40000 Pcs
Language	Simplified Chinese, Traditional Chinese, English, (Optional Customized German, French and Spanish)
Operating Environment	0~40℃, 0~85%RH (no condensing), Altitude < 2000m
Storage Environment	-20~50℃, 0~85%RH (no condensing)
Standard Accessory	Power Adapter, User Guide, CD Disk(PC Software), USB cable, Standard Calibration Board, Black Calibration Cavity, Transmission black baffle, Sample holder, 25.4mm caliber, 15mm caliber, 8mm caliber, 4mm caliber, Transmissive Test Component, Micro Aperture(4mm) transmission test clamp component
Optional Accessory	Micro-printer, Instrument inversion components, culture dish
Notes:	The specifications are subject to change without notice.
