| Description | Shipped From Abroad

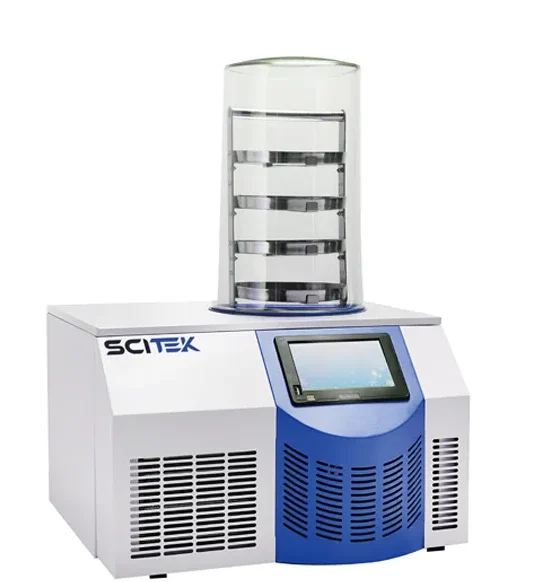

This benchtop freeze dryer is designed for lyophilising light to medium sample volumes. The compact design is ideal for laboratories with limited floor space.
Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
| In stock
The Discover Cup is an all-in-one drug of abuse test cup. The strips are self contained and the entire cup is tamper resistant.
Delivery & Availability:
Typically 2 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information. | In stock
- Made of high quality PP material with good transparency.
- Applied for Gilson/Finland/Eppendorf Pipettors.
- Carefully inspect of raw material and manufactured under strict process check, all tips are with excellent accuracy and precison.
- Special siliconizing on the inner surface ensure no liquid adhesion and accurate sample transfer.
- Standard tips and filter tips can be autoclaved, high temperature sterilization acceptable.
Delivery & Availability:
Typically 5-7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information. | In stock
The linear and round stands have been designed to fit perfectly of TOPTION Pipette range, TopPette,MicroPette and MicroPette Plus Autoclavable Pipettes. The stands are convenient to hold up 6 pipettes both of single and multi-channel.
Delivery & Availability:
Typically 5-7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information. | In stock
The technical innovation of the iSED® fully-automated ESR analyzer consists of directly measuring the intensity of the red cell aggregation which is responsible for Erythrocyte Sedimentation Rate (ESR).
Delivery & Availability:
Typically 5-7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information. | In stock
This Automatic Pipette will help you get your lab up and running in no time—at a great price!
Delivery & Availability:
Typically 5-7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information. |
| Content | Benchtop Freeze Dryer Specifications:
| Model |
FD-10S |
FD-10P |
FD-10T |
FD-10PT |
| Type |
Standard
chamber |
Standard
chamber with
8 port manifold |
Stoppering
chamber |
Stoppering
chamber with
8 port manifold |
| Freeze Drying Area (m2) |
0.12 |
0.09 |
| Tray (Qty) |
4/6(Optional)pcs |
3pcs |
| Tray Size (ΦxH)(mm) |
Φ200x20 |
Φ200x20 |
| Height Between Trays (mm) |
76/50 |
70(average) |
| Condenser Temperature (℃) |
-60 |
-60 |
-60 |
-60 |
| Condenser Capacity (L) |
6.5 |
6.5 |
6.5 |
6.5 |
| Condenser Size (DiameterxH)(mm) |
Φ215x190 |
Φ215x190 |
Φ215x190 |
Φ215x190 |
| Vacuum Degree (No-loading) (Pa) |
≤5 |
≤5 |
≤5 |
≤5 |
| Ice Condensing Capacity (kg/24h) |
3 |
3 |
3 |
3 |
| Loading Capacity/ Shelf (mL) |
300 |
300 |
300 |
300 |
| Total Loading Capacity (mL) |
1200 |
1200 |
900 |
900 |
| Drying Chamber Size (Standard) |
Lower circle: Φ260mm; Upper circle: Φ240mm; Height: Φ450mm |
| Total Qty. of Vial Φ22 |
260 |
195 |
| Total Qty. of Vial Φ16 |
480 |
360 |
| Total Qty. of Vial Φ12 |
920 |
690 |
| Refrigerant Type |
CFC-free |
| Standard Accessories |
Vacuum pump 2L/s, 8m³/h, material tray, material rack, PC cover (for all modes)
Conical-mouth flask 500mLx8 pcs, switch valvex8 pcs (only for model 1P/PT) |
| Optional Function & Accessories |
Electric defrost function, nitrogen gas filling valve, oil mist filter (for all models)
800mL wide-mouth flask (only for model 1P/PT) |
| Consumption |
0.85kW |
| Electricity |
AC220V, 50Hz(standard), other electricity type can be customized |
| External Size (WxDxH)(mm) |
600x540x374/820 |
600x540x374/880 |
| Shipping Size
(WxDxH) |
Main Body |
670x700x560mm |
| Drying Chamber |
410x410x640mm |
| Vacuum Pump |
220x580x370mm |
| Gross Weight |
110kg |
Benchtop Freeze Dryer Features:
- 7 inches colorful touch panel can display the product sample's temperature, condenser temperature and vacuum etc in digital and curve.
- Touch panel with the design conforms to ergonomics and operate more comfortably.
- Compact bench-top design with a small footprint.
- USB data export for convenient user information management
- Large-volume stainless steel condenser without coils, which can realize independent sample pre-freezing.
Reliability：
- High performance compressor, cascade system,high cooling efficiency and fast cooling speed.
- Condenser and operation panel are made by stainless steel.
- Drying chamber is transparent which is visual and safe.
Application of Benchtop Freeze Dryer:
- Biological sample preservation
- Pharmaceutical production
- Food preservation
- Diagnostic reagent manufacturing
- Herbal medicine and natural product extraction
- Archaeological and forensic sample analysis
- Materials research
Product Data
- Freeze Drying Area (m2) : 0.12 / 0.12 / 0.09 / 0.09
- Tray Size (ΦxH)(mm) : Φ200x20
- Condenser Size (DiameterxH)(mm) : Φ215x190
- Vacuum Degree (no-loading) (Pa) : ≤5
|
FDA 510(K) & CLIA Waived
Up to 99% accuracy rate
Results in as little as 1 minute
24 Month Shelf Life from Date of Manufacture
Secure, seal and send to lab for confirmation
Built in temperature strip
Available to test up to 17 substances with adulterants or 18 without adulterants
Adulterants available
|
- Made of high quality PP material with good transparency.
- Applied for Gilson/Finland/Eppendorf Pipettors.
- Carefully inspect of raw material and manufactured under strict process check, all tips are with excellent accuracy and precison.
- Special siliconizing on the inner surface ensure no liquid adhesion and accurate sample transfer.
- Standard tips and filter tips can be autoclaved, high temperature sterilization acceptable.
Classification: PIPETTE
Brand Name: Vchanslab,Yingmed,OEM
Model Number: YM-K7028
Place of Origin: China
Product name: Pipette Tips
Material: Polypropylene
Certificate: CE/ISO13485/FDA
Color: Natural, Blue, Yellow
Application: Laboratory, Teaching, Hospital | The linear and round stands have been designed to fit perfectly of TOPTION Pipette range, TopPette,MicroPette and MicroPette Plus Autoclavable Pipettes. The stands are convenient to hold up 6 pipettes both of single and multi-channel.
Features:
- Lightweight, fashion design
- Can be rotating smoothly comfortably hold up to 6 pipettes
- Comfortably hold up to 6 pipettes
Technical Specifications:
| Feature: |
Disposable |
| Application: |
Clinical, Household |
| Material: |
Plastic |
| Certification: |
CE |
| Group: |
Adult |
| Color: |
White and Gray |
| The technical innovation of the iSED® fully-automated ESR analyzer consists of directly measuring the intensity of the red cell aggregation which is responsible for Erythrocyte Sedimentation Rate (ESR). Unlike traditional ESR methodologies that measure the aggregation of the red blood cells indirectly, the iSED measures it directly and expresses the values in mm/hr.
Features:
-
-
100µL sample drawn directly from primary EDTA tube
-
Fully automated, walk-away operation
-
-
Positive patient identification via internal barcode reader
-
Compatible with pediatric tube
Technical Specifications:
| Principle of Measure: |
Photometrical |
| Results: |
“Printed mm/hr, Range from 1-130 mm/hr” |
| Sample Requirements: |
500uL whole blood, collected in EDTA anti-coagulant tested 24 hours from venipuncture at room temperature or refrigerated. |
| Tube Requirements: |
13 x 75 mm, pierceable capped tube |
| Quality Control: |
Barcoded Seditrol® QC |
| Barcode Reader: |
Internal |
| Printer: |
Internal |
| Interface Specifications: |
serial RS232 port for LIS connection |
| Weight: |
14 kg |
| Dimensions (H x W x D): |
36 x 27 x 34 (cm) /14.3 x 10.5 x13.4 (in) |
| Voltage: |
100-240VAC |
| Frequency Range: |
50-60 Hz |
| Power: |
160W |
Click Here To Download Catalogue | This Automatic Pipette will help you get your lab up and running in no time—at a great price!
Features:
- Lowest operation and tip ejection forces
- Fully autoclavable
- Ultra light weight with space-age materials
- Secondary adjustment option for various liquid classes
- Spring loaded tip con
- For transferring molecular samples and PCR mix solutions.
- One set is for DNA work and the other for RNA work. Each with the following specs
- Light weight, traditional tip shaft, and will fit all generic brands of tips
- Equal to or better than accuracy and precision compared to ISO 8655, so results can be trusted.
- Easy and quick volume adjustment with or without gloves. Foolproof volume lock prevents accidental volume changes.
- Low maintenance and autoclavable 121° for at least 20 minutes
- Quick release
|
