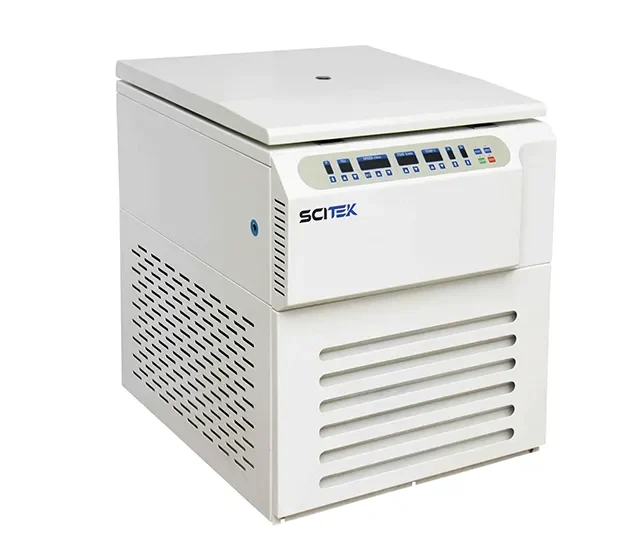

Blood Bag Centrifuge

Blood Centrifuge Features:

1. High torque brushless frequency conversion motor for maintenance-free operation and fast lifting speed.
2. Flexible shaft drive system for direct rotor drive, ensuring motor protection, precise speed control, and stable operation with low vibration and noise.
3. Blood bag centrifuge uses an all-steel structure with a 304 stainless steel centrifugal chamber and multi-layer protection design.
4. Three-stage vibration reduction and automatic balance function for improved stability.
5. Microcomputer processor for precise control, red digital display, and button programming.
6. Induction automatic electric suction door lock and emergency door opening device for enhanced safety.
7. Aeronautical aluminum rotor with anti-corrosion surface and high strength for efficient heat conduction and sample protection.
8. Storage and recall of 10 common programs, as well as flexible choice of acceleration and deceleration rates for optimal centrifugal effect.

Product Data

• Max Speed (rpm) : 6000
• Max RCF (xg) : 6600
• Temperature Setting (℃) : -20～+40
• Timer : 1～9h 59min
• Max Capacity : 1000ml×6

Advantages

• High torque brushless frequency conversion motor for maintenance-free operation and fast lifting speed.

• Flexible shaft drive system for direct rotor drive, ensuring motor protection, precise speed control, and stable operation with low vibration and noise.

• All-steel structure with a 304 stainless steel centrifugal chamber and multi-layer protection design.

• Three-stage vibration reduction and automatic balance function for improved stability.

• Microcomputer processor for precise control, red digital display, and button programming.

• Induction automatic electric suction door lock and emergency door opening device for enhanced safety.

• Aeronautical aluminum rotor with anti-corrosion surface and high strength for efficient heat conduction and sample protection.

• Storage and recall of 10 common programs, as well as flexible choice of acceleration and deceleration rates for optimal centrifugal effect

Blood Centrifuge Specifications:

• Speed: 11,800rpm with 24- place rotor
• RCF: 14,000g with 24-place rotor
• Acceleration: 0-11,800rpm in 60 seconds, with 24-place rotor
• Brake: Automatic
• Noise: 62dB running with 24-place rotor
• Motor: High precision AC/DC series wound motor, brush gear, computer wound coil winding, balance armature and high speed bearings.
• Timer: 0-15 minute timer, graduated in 1 minute increments. Automatic switch at zero
• Weight: 5.1Kg net (without rotor)
• Dimensions: 23.5cm height x 27cm diameter, footprint 16cm diameter
• Construction: Aluminium casing with a steel lid
• Finish: Body cream white baked enamel, with matt black baked enamel lid

Click Here To Download Catalogue

• Results in 20 Seconds

• 100µL sample drawn directly from primary EDTA tube

• Fully automated, walk-away operation

• Random access

• Positive patient identification via internal barcode reader

• Compatible with pediatric tube



Click Here To Download Catalogue

• Ease of use in application and maintenance
• Designed with sample and reagent ID-barcode reading, in-tip dilution reducing consumable costs
• Intuitive and highly flexible open software with complete data reduction and LIS interfaces
• Integrated PC and touchscreen eliminates the need for an external workstation
• Smart time-management allows processing up to 3 microplates simultaneously

• Photometric range: 0 to 3.0 OD
• Spectral range: 400 nm to 700 nm (up to 8 filters)
• Read time: < 15 sec single, < 30 sec dual
• Precision: 1% CV at 1.0 OD
• Accuracy: ±0.005 OD or 2.5 % (whichever is greater)
• Linearity: 0 to 2.000 OD ±1 %

• Min / max. volumes: 10 µl to 300 µl with 300 µl tip, 301 µl to 1000 µl with 1100 µl tip
• Precision (single dispense): < 3 % CV at 20 µl, < 3 % CV at 100 µl
• Precision (multi dispense): < 10 % CV at 16 x 20 µl, < 3 % CV at 8 x 100 µl
• Features: Pipetting pressure monitoring, capacitive liquid level detection, tip detection, mixing, multiple dilution steps, archiving

• Sample and reagent capacity: Up to 192 samples (Flexible: e.g. 144 samples + 8 reagents + 16 controls)

• Temperature range: Up to 45 °C
• Temperature uniformity: ±1.5 °C (with in-process temperature uniformity monitoring)
• Shaking: 20 Hz

• Precision: 10% CV at 300 µl
• Residual volume: <2.5 µl in U-bottom (mean), <4 µl in flat bottom (mean)
• Wash buffer capacity: 3 wash buffers
• Modes: Sweep mode, soak, top and bottom wash, variable pump speed

• Width x Depth x Height: 125 cm x 65 cm (without waste bag) x 75 cm with closed cover (49” x 26” x 30”)

Click Here To Download Catalogue

• Made of high quality PP material with good transparency.
• Applied for Gilson/Finland/Eppendorf Pipettors.
• Carefully inspect of raw material and manufactured under strict process check, all tips are with excellent accuracy and precison.
• Special siliconizing on the inner surface ensure no liquid adhesion and accurate sample transfer.
• Standard tips and filter tips can be autoclaved, high temperature sterilization acceptable.
