Hematology Unit / Laboratory Equipment

Blood Thawing Machine

Brands: Scitek

~~$0.00~~

Shipped From Abroad

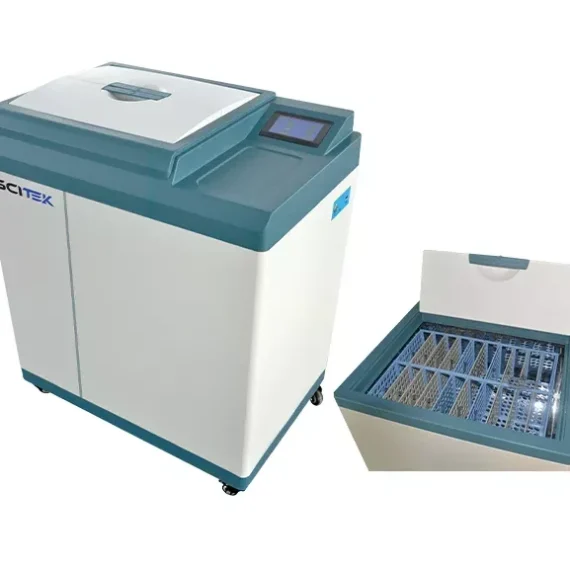

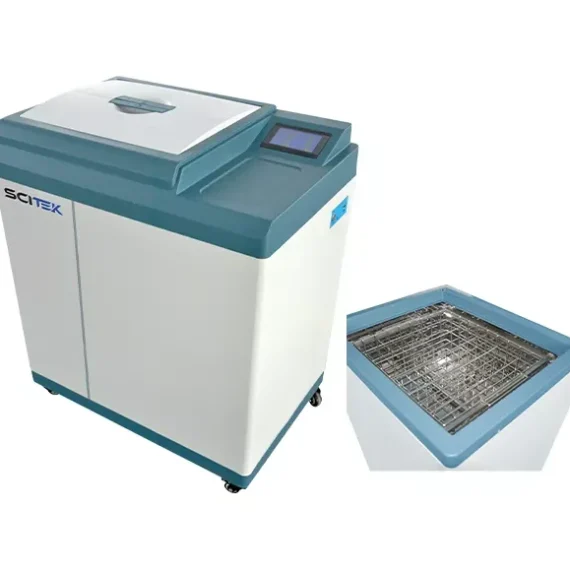

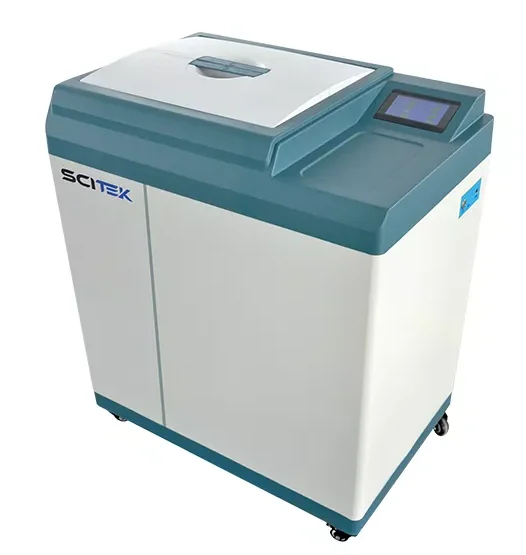

Model : BTM-IIW; BTM-IID; BTM-IIO

The BTM-II series is a type of blood thawing machine designed to efficiently and safely thaw blood components like plasma, platelets, and red blood cells. It offers precise temperature control to prevent overheating or underheating, ensuring the quality of the thawed blood. This machine is typically equipped with a water bath or dry heat system for thawing, along with features like timers, alarms, and easy-to-use controls.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Sku:

SF1033560130127-59

Brands:: Scitek

Description
Reviews (0)

Description

Blood Thawing Machine Feature:

BTM-II series blood thawing machine is mainly used for constant temperature heating and thawing of plasma, platelets and blood cells. It is also suitable for constant temperature heating of medical frozen products, blood transfusion bottles(bags), anesthetics and drugs.

Fast, safe and reliable heating system
Strict temperature control system
Complete recording of information and traceability of quality control data
With upper drainage function, no floor drain is needed in the studio
Automatic cleaning function
The defrost barrier can be adjusted freely
Disinfection and sterilization system (optional)

Blood Thawing Machine Specifications:

Model	BTM-IIW	BTM-IID	BTM-IIO
Thawing Quantity (Optimal/Maximum)	20/25	10/20	20/25
Temperature Control Range	RT~60℃
Temperature Control Accuracy	±0.5℃
Water Storage Capacity	60kg±5%
Thawing Time	10~15 minutes	20~30 minutes	10~15 minutes
Cycling Ability	60L/min
Oscillation Frequency	\	\	60 cycles/min
Oscillation Amplitude and Mode	\	\	50±5mm, back and forth
Heating Consumption	3000W
Power Supply	AC220/110V, 50/60Hz
Size(W×D×H)(mm)	540x600x900
Shipping Size (W×D×H)(mm)	930x660x1130
N.W./G.W. (kg)	58/82	60/84	64/88
