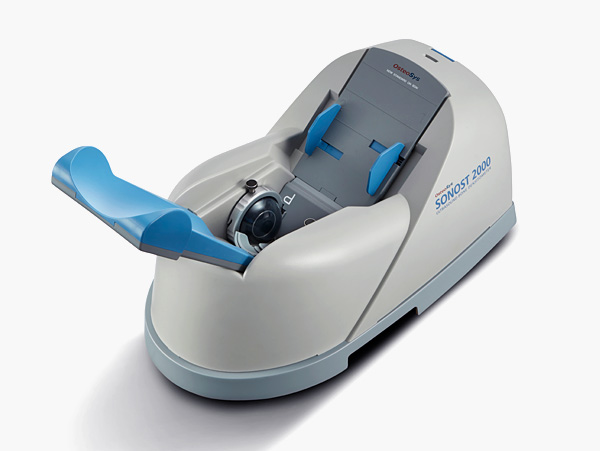

BONE DENSITOMETER (SONOST-2000)

Brands: OSTEOSYS

~~$0.00~~

Shipped From Abroad

SONOST-2000 is a compact quantitative ultrasound(QUS) bone mineral densitometer (BMD) with an easy, quick, simple and safe measurement.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Sku:

SF1033560130103-4

Brands:: OSTEOSYS

Description
Reviews (0)

Description

Description

Quantitative Ultrasound (QUS) Bone Mineral Densitometer

Easy & Quick & Simple & Safe Measurement

SONOST-2000 is a dry mode ultrasound bone densitometry that boasts a quick measuring speed of 15 seconds, easy operation and high durability. Its compact design makes it portable enough to use with a laptop anywhere.

Features

Dry-type Ultrasound BMD with No Radiation

SONOST-2000 is a dry-type ultrasound bone densitometry which is free of the radiation. It enables a swift and easy measurement of Calcaneus by calculating the sound of speed (SOS) and Broadband Ultrasound Attenuation (BUA). Due to its compact design, you can use SONOST-2000 with a laptop for your portable measurement.

Dry-type Ultrasound BMD with No Radiation

SONOST-2000 is a dry-type ultrasound bone densitometry which is free of the radiation. It enables a swift and easy measurement of Calcaneus by calculating the sound of speed (SOS) and Broadband Ultrasound Attenuation (BUA). Due to its compact design, you can use SONOST-2000 with a laptop for your portable measurement.

Specification

Measurement Type	Ultrasound
Measurement site	Calcaneus (Heel)
Measured parameter	T-score, Z-score, SOS, BUA, BQI index
Reproducibility	SOS – ≤ 1% CV BUA – ≤ 2% CV
QC check	Daily QC phantom
Dimension	(W)523mm × (D)286mm × (H)254mm (Calf supporter folded) (W)523mm × (D)286mm × (H)254mm
Weight	7.8kg

Click here to download Manual

Click here to download Catalogue

Reviews

There are no reviews yet.

Be the first to review “BONE DENSITOMETER (SONOST-2000)”

Quick Comparison

BONE DENSITOMETER (SONOST-2000) remove DrGem Floor Mounted Analogue X-ray remove DrGem Diamond All-In-One Digital X-ray Machine remove Topaz Digital X-ray Machine remove DrGem Ceiling Analogue X-ray Machine remove Anke Anatom 64 Clarity Multi-Slice Spiral CT Scan remove

Name BONE DENSITOMETER (SONOST-2000) remove DrGem Floor Mounted Analogue X-ray remove DrGem Diamond All-In-One Digital X-ray Machine remove Topaz Digital X-ray Machine remove DrGem Ceiling Analogue X-ray Machine remove Anke Anatom 64 Clarity Multi-Slice Spiral CT Scan remove


SKU SF1033560130103-4 SF1033560074-6 SF1033560074-3 SF1033560074-1 SF1033560074-7 SF1033560092-2

Rating

Price

~~$0.00~~

Stock

Availability

Add to cart

Description

Shipped From Abroad SONOST-2000 is a compact quantitative ultrasound(QUS) bone mineral densitometer (BMD) with an easy, quick, simple and safe measurement.

Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

In Stock GXR Analogue X-ray system matches with a radiographic room which perfectly fits your workow and can be easily upgraded to DR system with the help of DR interface and PC interface in GXR generator as well as Bucky suitable to Flat Panel Detector. GXR X-ray system is equipped with a high frequency X-ray generator which consistently produces high quality radiograph in favor of high quality X-ray output with a very small kV ripple and accurate mA and mAs. GXR X-ray system is designed to provide convenience to operator and comfort to patient. Delivery & Availability: Typically 21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad DrGem Diamond All-In-One Digital X-ray Machine is a fully automatic digital radiography system providing state-of-the-art image quality, image processing and user interface. With a wide selection of anatomical studies on the imaging software, DIAMOND automatically sets up the x-ray generator’s preprogrammed exposure technique settings, motorized radiographic stand positioning, x-ray collimation and post-image processing for the selected study. Specifically designed to increase workflow, this fully digital system offers convenient auto-positioning and advanced image processing to achieve big performance with little effort. Delivery & Availability: Typically 21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

In Stock DRGEM’s TOPAZ X-ray machine is a state-of-the-art mobile digital radiography system, designed with maximum comfort for patients and users in mind. From its user-friendly software to smooth movements, TOPAZ is made to improve your workflow and provide you with high-quality images. Delivery & Availability: Typically 21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from abroad The DrGem Ceiling Analogue X-ray Machine is a diagnostic radiography system that provides reliable high quality radiographic images with a reduced dose. The reliable high-frequency x-ray generators that are known worldwide for their excellent performance, lifetime and stability. Patient tables and wall stands are also offered. Delivery & Availability: Typically 21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad The ANATOM 64 CT scanner is the latest innovation for cardiac imaging based on Precision Platform system. The excellent design of Ahart technology which innovatively combined single spiral scan + gated imaging + mA modulation for easy heart imaging at extremely low radiation dose. We provide you ANATOM 64 Clarity/Precision of two models which are low/high configurations for preferences. It also offers you conventional clinical applications of low dose, better image quality and faster exams.

Delivery & Availability:

Typically 90 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Content

Description https://youtu.be/kXoZ1-3LrpQ?si=YTIRiaLkeHQX6c2G

Quantitative Ultrasound (QUS) Bone Mineral Densitometer

Easy & Quick & Simple & Safe Measurement

Features

Dry-type Ultrasound BMD with No Radiation
SONOST-2000 is a dry-type ultrasound bone densitometry which is free of the radiation. It enables a swift and easy measurement of Calcaneus by calculating the sound of speed (SOS) and Broadband Ultrasound Attenuation (BUA). Due to its compact design, you can use SONOST-2000 with a laptop for your portable measurement.

Dry-type Ultrasound BMD with No Radiation
SONOST-2000 is a dry-type ultrasound bone densitometry which is free of the radiation. It enables a swift and easy measurement of Calcaneus by calculating the sound of speed (SOS) and Broadband Ultrasound Attenuation (BUA). Due to its compact design, you can use SONOST-2000 with a laptop for your portable measurement.

Specification

Measurement Type	Ultrasound
Measurement site	Calcaneus (Heel)
Measured parameter	T-score, Z-score, SOS, BUA, BQI index
Reproducibility	SOS – ≤ 1% CV BUA – ≤ 2% CV
QC check	Daily QC phantom
Dimension	(W)523mm × (D)286mm × (H)254mm (Calf supporter folded) (W)523mm × (D)286mm × (H)254mm
Weight	7.8kg

Click here to download Manual

Click here to download Catalogue

DrGem GXR Floor Mounted Analogue X-ray system matches with a radiographic room which perfectly fits your workflow and can be easily upgraded to DR system with the help of DR interface and PC interface in GXR generator as well as Bucky suitable to Flat Panel Detector. GXR (Analogue X-ray)system is equipped with a high frequency X-ray generator which consistently produces high quality radiograph in favor of high quality X-ray output with a very small kV ripple and accurate mA and mAs. GXR (Analogue X-ray) system is designed to provide convenience to operator and comfort to patient. Features of DrGem GXR Floor Mounted Analogue X-ray:

4 way Tabletop Patient Table (PBT-4) A large tabletop with extended travel enables all radiography studies with minimal patient movement, and supporting patient weight up to 300kg. Fully at tabletop without a frame on the edge makes cleanliness and odors free
Floor Mount Tube Stand (TS-FM6) Floor Rail type tube stand provides all radiography studies with smooth movement on the rail.
Wall Bucky Stand (WBS) Elegant design, durable and easy-to-use Wall Bucky Stand provides full satisfaction.

Technical Specifications of DrGem GXR Floor Mounted Analogue X-ray:

Power Rating - 32KW
Generator - GXR-32S
Rotor - Dual Speed Starter(DSS)
Input Power - 400/480VAC, Three phase
Line Frequency - 50/60Hz
X-ray tube - DXT-12M, (0.6/1.2mm, 300kHU)
Tube Voltage - 40 to 150kV, 1kV Step
Tube Current – 10 to 640mA
Output - 640mA@81kV, 500mA@104kV, 400mA@130kV, 320mA@150kV
Time Range - 1ms to 10s
mAs Range - 0.1 to 800mAs
Reproducibility - Coecient of Variation : kV < 0.005, Time < 0.005,mAs < 0.01
Accuracy - kV < ±(1%+1kV), mA < ±(3%+1mA), Time <±(1%+0.5ms), mAs < ±(3%+0.1mAs)
Linearity - Coecient of Linearity < 0.01 : CL = (X1-X2)/(X1+X2), where X is mR/mAs

Click Here To Download Catalogue

DrGem Diamond All-In-One Digital X-ray Machine is a fully automatic digital radiography system providing state-of-the-art image quality, image processing and user interface. With a wide selection of anatomical studies on the imaging software, DIAMOND automatically sets up the x-ray generator’s pre-programmed exposure technique settings, motorized radiographic stand positioning, x-ray collimation and post-image processing for the selected study. Specifically designed to increase workflow, this fully digital system offers convenient auto-positioning and advanced image processing to achieve big performance with little effort. Features of DrGem Diamond All-In-One Digital X-ray Machine: Outstanding Image Quality - Digital radiography via at panel detector improves your workflow, exam speed and comfort with efficiency. Digital at panel detector with Csl screen provides excellent spatial resolution, MTF, DQE and stability based on ne pixel pitch. A 3-field ion-chamber is provided for AEC function. Automatic Collimation – Automatic x-ray eld size control of the motorized collimator corresponds to dierent SIDs. Includes user adjustable lamp timer with on/oswitch. Automatic Positioning –

DIAMOND is a fully-automatic diagnostic system with motorized movement and pre-programmed data for automatic positioning that can be easily reprogrammed by the operator.
Seven safety sensors have been integrated into the DIAMOND system to protect patients from accidental collision.

Automatic Stitching – DIAMOND 5A provides outstanding automatic stitching function via source tilting for creating one long composite image. DIAMOND Positioning Guide – The U-arm rotation ranges from +120 ° to +30 ° with SID movements from 100cm to 180cm. The mobile patient table can also be used to take patient images in a variety of positions for a total of over fifteen different positions (Chest PA, Skull Towne’s, Abdomen Supine, Hand AP, C-T Spine Swimmers and Abdomen Decubitus etc.)

Included – Software, HP Laptop Computer

- CPU≥3.2GHz - Memory capacity：≥4GB - Hard drive capacity ：≥500 GB - Resolution: 1280 x 1024 - Display size： 21 inch color LCD screen - 64 bit Windows 10 operation system - Core: i5 Technical Specification:

Power Rating - 52KW
mA - 10 to 640mA
mAs - 0.1 to 500mAs
kV - 40 to 150kV, 1kV Step
Generator - GXR-52
Rotor - Dual Speed (High and Low)
Input Power - 400/480VAC±10%, 3Ø
Line Frequency - 50/60Hz
X-ray tube – DXT-12M 0.6/1.2mm, 300kHU

Click Here To Download Catalogue

TOPAZ X-ray machine is among the high end X-ray machine manufactured by DRGEM, a digital X-ray system that provides quality images with little or no effort. It begins with Advanced Technology Integrating high technology and over a decade of experience in conventional and digital radiography systems, DRGEM’s TOPAZ X-ray machine is a state-of-the-art mobile digital radiography system, designed with maximum comfort for patients and users. From its user-friendly software to smooth movements, TOPAZ X-ray machine is made to improve your workflow and provide you with high-quality images. Full Featured Imaging Software & Excellent Digital Image Processing With a high-performance, built-in touchscreen, TOPAZ X-ray machine offers a user-friendly interface and powerful software for easy operation and increased workflow. The anatomical view-based digital image processing, automatically optimizes and enhances the quality of the image. it also comes with automatic image storage and print with DICOM 3.0 networking capability. additionally, the system offers increasing exam throughput while decreasing examination time.

Provides convenient user interface and easy operation
Anatomical view-based digital image processing
Radiographic stand and automatic collimator control function
DICOM 3.0 networking interface features include: work-list, print, store, and query for
integration with any PACS or RIS.

Features of Topaz X-ray Machine:

Outstanding image quality by optimized digital image processing
Easy driving and maneuverable with ergonomic and compact design
Convenient and enough space for detector, battery and other necessary stuff
Swift mobility with 5km/h speed allows you to save time, cost and satisfy your patient with quick processing
Accurate positioning and precise movement provided with 4 direction buttons on this control panel
Longer arm stroke and high column provide wider coverage and patient-friendly operation service
A safety function with front safety bumper & brake, spring loaded front wheel and status LED indicator
Provide best satisfaction and convenience for your patient and operator. It will prevent any unexpected and secondary accident

Technical Specification: Topaz X-ray Machine

Output Rating - 32kW/40kW
kVRange - 40 to 125V/150kV
mA Range - 10 to 400mA/500mA
mAs Range - 0.1 to 400mA/500mAs

Digital Flat-panel Detector

Size – 14X17inch
Scintillator - Csl/GOS
Type - Wireless

Click Here To Download Catalogue

DrGem Ceiling Analogue X-ray Machine is a diagnostic radiography system X-ray Machine that provides reliable high quality radiographic images with a reduced dose. The reliable high-frequency x-ray generators that are known worldwide for their excellent performance, lifetime and stability. Patient tables and wall stands are also offered. Features of DrGem Ceiling Analogue X-ray Machine

TS-CSA-A (Vertical movement, 1.6m stroke, rail length 3x4meter) including HV cable 15m
WBS-TA: Vertical movement

V Stroke:1,450mm in Uprigh Bucky Position,
1,526mm in Horizontal Bucky position.

PBT-4 is a 4 way Floating Tabletop with. A large tabletop with extended travel enables all radiography studies with minimal patient movement. Fully fat tabletop without a frame on the edge makes cleanliness and odors free

Technical Specifications of DrGem Ceiling Analogue X-ray Machine

Power Rating - 32KW
Generator - GXR-32S
Rotor - Dual Speed Starter(DSS)
Input Power - 400/480VAC, Three phase
Line Frequency - 50/60Hz
X-ray tube - DXT-12M, (0.6/1.2mm, 300kHU)
Tube Voltage - 40 to 150kV, 1kV Step
Tube Current – 10 to 640mA
Output - 640mA@81kV, 500mA@104kV, 400mA@130kV, 320mA@150kV
Time Range - 1ms to 10s
mAs Range - 0.1 to 800mAs
Reproducibility - Coecient of Variation : kV < 0.005, Time < 0.005,mAs < 0.01
Accuracy - kV < ±(1%+1kV), mA < ±(3%+1mA), Time <±(1%+0.5ms), mAs < ±(3%+0.1mAs)
Linearity - Coecient of Linearity < 0.01 : CL = (X1-X2)/(X1+X2), where X is mR/mAs
Mechanical Parts:

-TS-CSA-A (Vertical movement, 1.6m, stroke rail length 3x4meter) including HV cable 15m - PBT-4: 4 way Floating Tabletop with Elevating Feature (66cm). - WBS-TA: a. Vertical movement

V Stroke:1,450mm in Upright Bucky
Position, 1,526mm in Horizontal Bucky position.

- HVC-15: 15M HV cable - Auto Collimator

Click Here To Download Catalogue

The ANATOM 64 CT scanner is the latest innovation for cardiac imaging based on Precision Platform system. The excellent design of Ahart technology which innovatively combined single spiral scan + gated imaging + mA modulation for easy heart imaging at extremely low radiation dose. We provide you ANATOM 64 Clarity/Precision of two models which are low/high configurations for preferences. It also offers you conventional clinical applications of low dose, better image quality and faster exams. Features:

Modularized OptiWave HD detector features low-cost & easy maintenance, high spatial resolution and long lifetime
Admir3D iterative technology delivers optimal dose efficiency and noise reduction without compromising image quality
High configurations of main components ensure the best results and maximum patient throughput
Uniquely and creatively uses 140kV and 80kV dual energy scan mode for brain imaging on 16-slice CT to offers you extraordinary image quality both in low and high density resolutions
AdoseTM mA modulation ensures you low dose imaging without compromising image quality particularly useful in pediatric applications
Equipped with dedicated Abast and Amast for bone and metal artifacts
The brilliant Ahart technology enables you to experience so easy and low-dose cardiac imaging applications

Technical Specifications:

Model	ANATOM 64 Precision	ANATOM 64 Fit
Rack type	Low pressure slip ring	Low pressure slip ring
Scan aperture	70cm	70cm
Rack Physical inclination	± 30 °	N.A
Rack digital inclination	± 50 °	± 50 °
cooling method	Air-cooled	Air-cooled
Focus to the center distance	56 cm	53 cm

Maximum power (non-equivalent)	80kW	42kW
Votage (kV)	80kV / 100kV / 120kV / 140kV	70kV / 80kV / 100kV / 120kV / 140kV

Heat capacity	8MHU	5.0MHU
Heat dissipation rate	931 kHU / min	748kHU / min
cooling method	Oil cool	Oil cool
Large focus size	1.1mm × 1.2mm	1.2mm × 1.4mm
Small focus size	0.6mm × 1.2mm	0.7mm × 0.8mm
Tube current range	10-670mA	10-350mA

Detector type	Optiwave detectors	Optiwave detectors
Number of Z-axis	32	32
The width of the Z-axis	20mm	20mm
The number of elements per row	912	848
Total number of detectors	29184	27136
Acquisition mode	64x0.625, 32x0.625, 16x0.625	64x0.625, 32x0.625, 16x0.625

Scanning range	1800mm	1800mm
Horizontal positioning accuracy	± 0.25mm	± 0.25mm
weight capacity	205kg	205kg
Minimum height	43cm	43cm
Anti - collision protection device	Yes	Yes
Foot control switch	Yes	Yes
IV rack	Yes	Yes

CPU	3.5GHz	3.5GHz
RAM	16 GB × 4	16 GB × 4
Hard drive capacity	1T × 2	1T × 2
Display size	24 inch LCD monitor	24 inch LCD monitor
Display resolution	1920 × 1200	1920 × 1200
Computer operating system	Windows 7	Windows 7
Image reconstruction speed	65 frames/ second	65 frames/ second
Number of image store	1000000	1000000
Data external storage mode	CD / DVD / USB	CD / DVD / USB

Minimum Scan Time of 360 degree	0.39sec	0.75sec
Sub-millimeter acquisition layers	64	64
Double sub-millimeter acquisition layers	64	64
Thinnest acquisition thickness	0.625mm	0.625mm
The thinnest reconstruction thickness	0.3125mm	0.625mm
Conventional reconstruction thickness (mm)	0.3125 mm, 0.625 mm, 1.25 mm, 2.5 mm, 5.0 mm, 7.5 mm, 10 mm	0.625 mm, 1.25 mm, 2.5 mm, 5.0 mm, 7.5 mm, 10 mm
The reconstruction matrix	512 x 512, 1024 x 1024	512 x 512, 1024 x 1024
Display matrix	1024 × 1024	1024 × 1024
Max FOV	52cm	50cm
The maximum display field of view	70cm	50cm
Maximum scan length	1800mm	1800mm
Maximum continuous helix scan time	120s	120s
Pitch range	0.5-1.5	0.5, 1.0, 1.5

High contrast resolution	21 Lp / cm @ 0% MTF	21 Lp / cm @ 0% MTF
Low contrast resolution	2mm @ 0.3%	2mm @ 0.3%
Image noise	≤ 0.25	≤ 0.29

MPR	Yes	Yes
CPR	Yes	Yes
SSD	Yes	Yes
VR	Yes	Yes
MIP	Yes	Yes
MinIP	Yes	Yes
Virtual endoscopy	Yes	Yes
CT angiography	Yes	Yes
Tissue segmentation	Yes	Yes
One-key bone removal	Yes	Yes
Automatically patient table removal	Yes	Yes
Contrast Agent Automatic Tracking Technology- bolus tracking	Yes	Yes
Automatic linkage trigger technology	Yes	Yes
Cine mode display	Yes	Yes
Bone artifact suppression technique	AbastTM	AbastTM
Metal artifact suppression technique	AbastTM	AbastTM
Iterative reconstruction technique	Admir3D global iteration	Admir3D full-domain iteration
Low - dose children 's scanning technology	Yes	Yes
Low - dose lung scan	Yes	Yes
Gray matter enhancement technology	AccuHead	AccuHead
High resolution imaging of the lung	AccuLung	AccuLung
Inner ear high resolution imaging	AccuOtica	AccuOtica
Body high resolution imaging	AccuBody	AccuBody
Bone high resolution imaging	AccuBone	AccuBone
Head dual-energy imaging	Ahead	Ahead
CT perfusion imaging	Optional	Optional
Quantitative analysis of blood vessels	Optional	Optional
Heart coronary artery imaging	Aheart	N.A
ECG gated	Yes	N.A
Low dose cardiac scan	Yes	N.A

Green energy saving technology	AccuSaving	AccuSaving
Dual-energy scan technology	Optional	Optional
