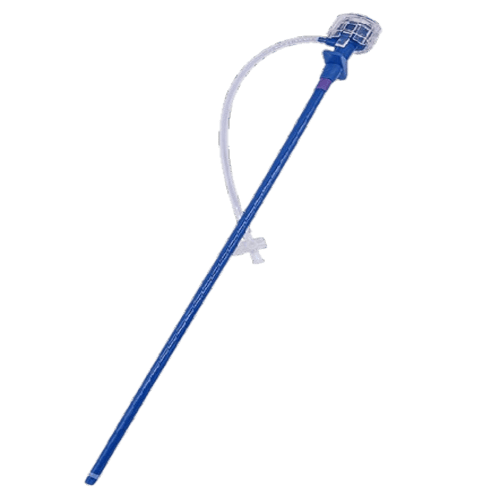

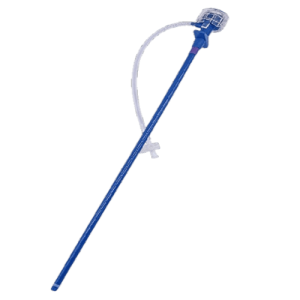

Braidin™ Pro Adjustable Valve Guiding Sheath

Brands: APT Medical

~~$0.00~~

Braidin™ Pro is an advanced guiding sheath featuring an adjustable hemostatic valve that allows precise control over sealing and catheter manipulation. Designed with a braid-reinforced shaft for exceptional kink resistance and torqueability.

Brands:: APT Medical

Description
Reviews (0)

Description

The Braidin™ Pro Adjustable Valve Guiding Sheath combines a flexible, kink-resistant braided shaft with an innovative adjustable valve hub, enabling clinicians to maintain a tight seal around various catheter sizes while minimizing blood loss. Ideal for electrophysiology and structural heart procedures, this sheath delivers excellent torque response, smooth device passage, and precise control. Its hydrophilic distal coating ensures seamless vessel navigation, while the customizable valve mechanism adapts easily to different interventional tools, improving workflow efficiency and procedural safety.

One and only large bore sheath with adjustable hemostasis valve, specifically designed for interventional procedures using large devices (TAA, AAA, TAVI, etc.), minimizing blood loss and vessel damage.

Features

Adjustable hemostatic valve accommodates multiple catheter diameters
Braid-reinforced shaft for stability, torque, and kink resistance
Hydrophilic distal segment for smooth insertion and reduced friction
Radiopaque markers for visibility under fluoroscopy
Atraumatic soft tip to minimize vessel trauma
Rotating suture ring and side port for secure positioning and flushing
Available in multiple French sizes and lengths
Sterile and single-use

Reviews

There are no reviews yet.

Be the first to review “Braidin™ Pro Adjustable Valve Guiding Sheath”

Quick Comparison

Braidin™ Pro Adjustable Valve Guiding Sheath remove i-gel Supraglottic Airway remove Render SD-H3000B+ Mobile ICU Ventilator remove Render SD-H3000A Mobile ICU Ventilator remove Ambu Bag with Reservior remove Bistos BT- 740 Patient Monitor remove

Name Braidin™ Pro Adjustable Valve Guiding Sheath remove i-gel Supraglottic Airway remove Render SD-H3000B+ Mobile ICU Ventilator remove Render SD-H3000A Mobile ICU Ventilator remove Ambu Bag with Reservior remove Bistos BT- 740 Patient Monitor remove


SKU SF1033560084-76 SF1033560011-23 SF1033560011-21 SF1033560084-41 SF1033560059-9

Rating

Price

~~$0.00~~

Stock

Availability

Add to cart

Description

In stock

Delivery & Availability: Typically 5-7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad

Microcomputer controlled,pneumatically driven and electronically controlled.
Pressure, volume controlled treatment ventilator.
Could be applied for pediatric and adult.
100% oxygen fast operation system, make sure to provide pure oxygen at any time.
Easy setting by navigator wheel knob & touch key
5.5" lcd display，very clearly at parameter setting area，monitoring area or alarm area.
Automatic temperature control humidifier system for operation and maintenance easier
Back-up battery
Built-in smart type air compressor

Delivery & Availability: Typically 21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad

Delivery & Availability: Typically 21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

In stock

Ambu Bag with Reservior: The ventilation bag is highly reactive with fast recoil and excellent stroke volume which help relieving fatigue to the rescuer. The thin-walled compression bag provides an excellent feel of lung compliance and helps avoid excessive ventilation that could damage the lungs.

Delivery & Availability: Typically 2 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad Bistos BT - 740 Patient Monitor: Bistos Patient Vital Signs Monitor, ECG, Resp., SpO2, NIBP, Temp., BT-740. The Bistos BT-740 is a multi-parameter patient monitor with an 8.4" TFT Color screen. The standard paramaters are ECG, respiratory, SpO2, NIBP and temperature. Additional options are EtCO2, IBP, Multi-gas, CO and Masimo SpO2. The BT-740 has a fanless design for quiet operation. Delivery & Availability: Typically 7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Content

https://youtu.be/WB5tJ9T418E The Braidin™ Pro Adjustable Valve Guiding Sheath combines a flexible, kink-resistant braided shaft with an innovative adjustable valve hub, enabling clinicians to maintain a tight seal around various catheter sizes while minimizing blood loss. Ideal for electrophysiology and structural heart procedures, this sheath delivers excellent torque response, smooth device passage, and precise control. Its hydrophilic distal coating ensures seamless vessel navigation, while the customizable valve mechanism adapts easily to different interventional tools, improving workflow efficiency and procedural safety. One and only large bore sheath with adjustable hemostasis valve, specifically designed for interventional procedures using large devices (TAA, AAA, TAVI, etc.), minimizing blood loss and vessel damage.

Features

Adjustable hemostatic valve accommodates multiple catheter diameters
Braid-reinforced shaft for stability, torque, and kink resistance
Hydrophilic distal segment for smooth insertion and reduced friction
Radiopaque markers for visibility under fluoroscopy
Atraumatic soft tip to minimize vessel trauma
Rotating suture ring and side port for secure positioning and flushing
Available in multiple French sizes and lengths
Sterile and single-use

i-gel Supraglottic Airway: The i-gel® is the innovative second generation supraglottic airway device from Intersurgical. The first major development since the laryngeal mask airway, i-gel has changed the face of airway management. Features: i-gel has a soft, gel-like, non-inflatable cuff, designed to provide an anatomical impression fit over the laryngeal inlet. The shape, softness and contours accurately mirror the perilaryngeal anatomy - an innovative concept meaning no cuff inflation is required. Working in harmony with the patient's anatomy, compression and displacement trauma are significantly reduced or eliminated.

Features:

Microcomputer controlled,pneumatically driven and electronically controlled.
Pressure, volume controlled treatment ventilator.
Could be applied for pediatric and adult.
100% oxygen fast operation system, make sure to provide pure oxygen at any time.
Easy setting by navigator wheel knob & touch key
5.5" lcd display，very clearly at parameter setting area，monitoring area or alarm area.
Automatic temperature control humidifier system for operation and maintenance easier
Back-up battery
Built-in smart type air compressor

Technical Specifications:

Model NO. - SD-H3000B+

Type - ICU Ventilator Machine

Used for - Adult

O2 Concentration - 21%-100%

Use for - ICU Operating Room

Tidal Volume - 0-2000ml

Min Tidal Volume - 50-1500ml

I:E - 5.0:1~1:5.0

Peep - 0-40cm H2O

Certification - CE, FDA, ISO13485

Trademark - RENDER

Origin - China

HS Code - 9018907000

Click Here To Download Catalogue

Features: Main performance and Technical Index:

Ventilation mode: VCV, PCV, PSV, SIMV(VCV)+PSV, SIMV(PCV)+PSV, MMV, CPAP, Backup apnea.

Air circuit Performance:

Maximum safety pressure of air circuit: no more than 6kpa.
Inspiratory oxygen concentration: 21-100%.

Ventilation Performance:

Respiratory rate (f): 4-99 times / min,
Inspiratory time (Ti): 0.2-6 s,
Breath holding time (Tp): 0-2s,
Triggering pressure (Pt): inspiratory triggering pressure is - 2kpa-0kpa,
Tidal volume (Vt): 0-2000ml;
Maximum minute ventilation volume: not less than 18 L / min.
PSV：0～5 kPa,
Peep Pressure: 0-3kpa,
Inspiratory flow rate: 0-80 L / min.
SIMV frequency: 6-60 times / min,
Inspiratory pressure: 0-6kpa,

Alarm Performance:

Pressure High Limit (Ph) alarm: 2 ~ 6kpa, audible and visual alarm.
Pressure Low Limit (Pl) alarm: 0～2KPa, audible and visual alarm.
Minute ventilation High Limit (Mvh) alarm: audible and visual alarm when ventilation exceeds the set value.
Minute ventilator Low limit (Mvl) alarm: audible and visual alarm when ventilation is lower than the set value.
Power off alarm: Power off alarm immediately, and the alarm duration shall not be less than 120s.
Mute: no more than 2 minutes.

Monitoring Performance:

12.1 inch color LCD
Tidal volume (VT): 0 ～ 2000ml
Measured total frequency (Ftot), Spont. frequency (Fspont)
Minute ventilation (Mv).
I: E ratio.
Airway pressure (PAW).
Peak pressure (Ppeak)
Peep pressure: 0.1 ~ 2KPa
Pressure-Time and Flow-Time waveform

Technical Specifications

Model NO. - SD-H3000A

Type - Ventilator

O2 Concentration - 21%-100%

Use for - ICU Operating Room

Tidal Volume - 0-2000ml

Min Tidal Volume - 50-1500ml

I:E - 5.0:1~1:5.0

Peep - 0-40cm H2O

Kind - Gynaecology

Certification - CE, FDA, ISO13485

Group - Adult

LCD Display - With LCD Display

Trademark - RENDER

Transport Package - Wooden Package

Origin - China

HS Code - 9018907000

Features:

Brand: OEM
Item No.: AM-DMR-M06-0/1/4
Color: Green
Size: Adult/Pediatric/Infant
Material: Disposable
Application: Emergency Resuscitation
MOQ: 300
Lead Time: 60 days
Shipping Terms: FOB
Packaging Details: Each set is packed into a white PP box
Carton Size: 57 x 34 x 46 CM / 12 SETS
Shipping Weight: 9.8 Kilos

Technical Specifications:

Type	Infant	Pediatric	Adult
Patient weight	≤10kg	10kg-40kg	＞40kg
Stroke volume	150ml	400ml	800ml
Resuscitator volume	280ml	600ml	1650ml
Dimensions L x D	135 x 75mm	146 x 100mm	212 x 131mm
Resuscitator weight	350g	410g	600g
Pressure limiting valve	40cmH2O	40cmH2O	60cmH2O
Inspiratory resistance	＜5cmH2O (at 50L/min)
Expiratory resistance	＜5cmH2O (at 50L/min)
Bag volume	1600ml	1600ml	2000ml
Patient connector	ISO5356-1：φ22/15mm Male/Female
Recommended operating temperature	-18℃～+50℃
Storage	Tested at -40℃ and 60℃

Bistos BT - 740 Patient Monitor: Bistos Patient Vital Signs Monitor, ECG, Resp., SpO2, NIBP, Temp., BT-740. The Bistos BT-740 is a multi-parameter patient monitor with an 8.4" TFT Color screen. The standard paramaters are ECG, respiratory, SpO2, NIBP and temperature. Additional options are EtCO2, IBP, Multi-gas, CO and Masimo SpO2. The BT-740 has a fanless design for quiet operation. Features:

8.4" TFT Color Screen - (Optional Touch Screen Upgrade)
Standard parameters are ECG, Resp., SpO2, NIBP, Temp.
Ultra-low power consumption
Quiet operation
High accuracy SpO2 reading
Data transfer or firmware upgrade via USB
2 Years Manufacturer's Warranty

Technical Specifications:

Model		BT-740
Display		8.4" Color TFT Screen
ECG	Lead type	3/5 Lead
	Gain Selection	x0.25, x0.5, x1, x2, x4, auto
	Sweep speed (mm/s)	12.5, 25, 50
	Bandwith:(Diagnostic Mode)	0.05-130Hz
	Monitoring Mode	0.5-40Hz
	Surgery Mode	1-25Hz
	Strong Mode	5-20Hz
	Heart Rate Range (bpm)	Adult:15-300
	Heart Rate Range (bpm)	Pediatric/neonate: 15-350
Respiration	Method	Trance-thoracic Impedance
	Measurement Range	0-120rpm
	Sweep Speed (mm/s)	6.25, 12.5, 25
SpO2	Measurement Range	0-100%
	Accuracy (70-100%)	Adult/Pediatric	+/-2%
	Accuracy (70-100%)	Neonate	+/-3%
	Accuracy (0-69%)	Unspecified
	Perfusion Index	0.05-20%
Pulse Rate	Range (bpm)	25-250bpm
NIBP**	Method	Automatic (Oscillometric)
	Operation Mode	Manual/Auto/STAT
	Parameter	Systolic, Diastolic, Mean
	Systolic Range (mmHg)	Adult	40-270
		Pediatric	40-200
		Neonate	40-130
	Diastolic Range (mmHg)	Adult	10-210
		Pediatric	10-160
		Neonate	10-90
	Mean Range (mmHg)	Adult	20-230
		Pediatric	20-175
		Neonate	20-100
Temperature	Range	0-50°C
Temperature	Parameter	T1, T2 and TD
IBP"	Channel	2 Channel, 4 Channel
IBP"	Range (mmHg)	-50-400
Printer*	Type	Thermal dot array
	Print Speed (mm/s)	12.5, 25, 50
	Paper Size (mm)	50
CO2*	Sidestream	Masimo ISA / Bistos
CO2*	Mainstream	Masimo IRMA / Bistos
Multi-gas O2*		Masimo ISA
SpO2 Masimo*		Masimo SpO2
CO*	Method	Thermodilution
CO*	Range	0.2-20 L/min
Battery	Type (Capacity)	Li-ion (440mAh)
	Run Time	6 hour
	Charging Time	4 hour
Interface		RJ45, USB, Nursing Call
Warranty		2 Years
