BT URICELL 2000 AI Modular Urinalysis Workflow

~~$0.00~~

Shipped From Abroad

BT URICELL 2000 is a high-throughput modular urinalysis analyzer combining urine chemistry and sediment analysis. Powered by AI deep-learning technology and digital imaging, it delivers fast, automated urine diagnostics for hospitals and laboratories handling large volumes of clinical samples.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Description
Reviews (0)

Description

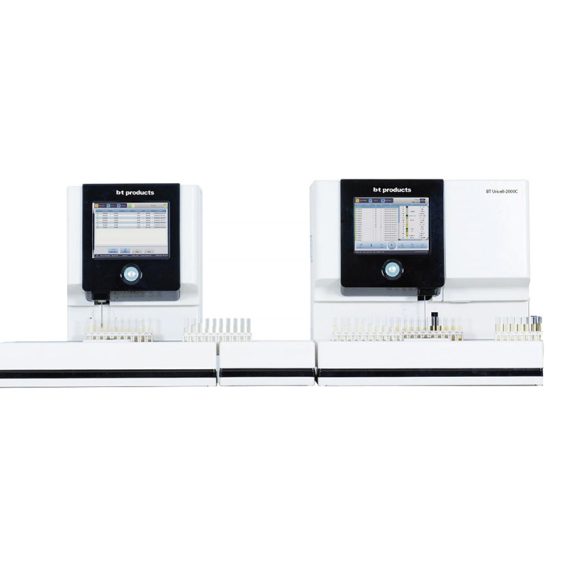

BT URICELL 2000 is a fully automated urinalysis workflow system designed for high-volume diagnostic laboratories. The analyzer integrates urine chemistry testing and sediment particle analysis using CIS color detection, AI deep-learning recognition, and advanced digital imaging technologies. Its modular configuration allows flexible system expansion depending on laboratory workload. With throughput reaching up to 800 tests per hour for chemistry and 400 tests per hour for sediment analysis, the system significantly improves laboratory efficiency, accuracy, and turnaround time for clinical urine testing.

Features

World’s Fastest Urinalysis Workflow
800 T/H for dry chemistry test
400 T/H for sediment analysis
AI technology (CNN, deep learning)
Modular design & Multiple configurations

Specifications

Principles

Chemistry:
CIS color detecting system, 5-wavelength colorimetry method, refraction method

Sediment:
Al recognition technology, flat sheath flow technology, digital imaging technology

Parameters

Chemistry:
Strip parameters: LEU, KET, NIT, URO, BIL, PRO, GLU, SG, BLD, pH, VitC (11FA, 14FA), MA (12FA, 14FA), CRE (12FA, 14FA), CA (14FA only)
System parameters: ACR (12FA, 14FA), COLOR, TURBIDITY

Sediment:
RBC, DRBC (G1 , Coin, Ghost, Big RBC cells, Small RBC cells), WBC, Phagocyte, WBCC, SQEP, NSE (TREP, REP), HYA, PAT (GRAN, WAXY, CELL, BLOOD, MIX), CAOX (CaOxm, CaOxd), URIC, STRUVITE, AMOR, OTCRY (CaPh, MUCR, CYCY, LECR, CHCR), BACT (Cocci, Scoccus, Bacilli), YST, Hyphae, OTFNG (FUSA), MUGS, SPRM, LIP, BUBLE, OTHER and more are coming soon …
MCV, ROW, abnormal RBC ratio
Conductivity and osmolality
Integrate urine dry chemistry results

Throughtput

Chemistry:
480 T/H each module

Sediment:
120 T/H each module

Download Brochure
