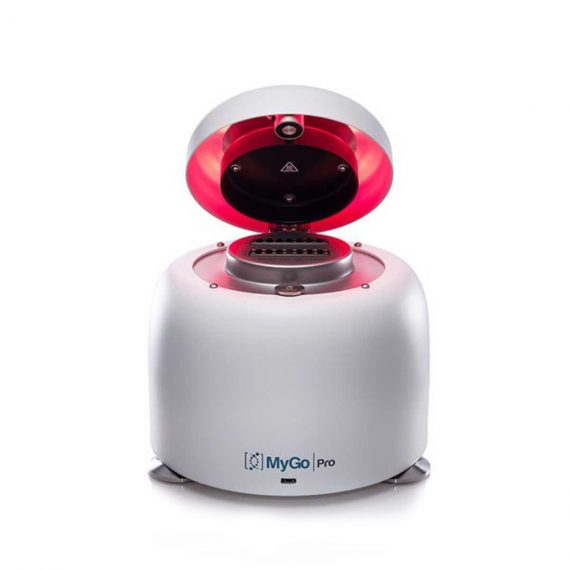

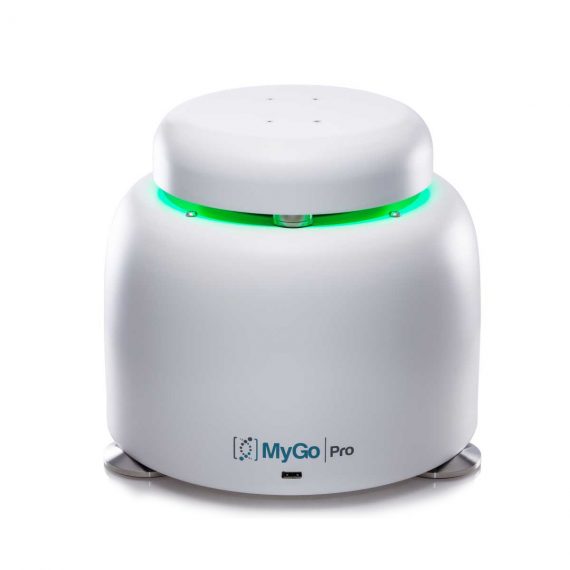

Ceragem MyGo Pro Real-time PCR Machine
$0.00
Shipped From Abroad
Excitation is provided by high intensity LEDs filtered to provide light at 500nm that is capable of exciting all fluorophores commonly used in qPCR. A prism is used to generate spectra from fluorescent emissions. These spectra are imaged using a CMOS camera.
Delivery & Availability:
Typically 14-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Description
Provides world-leading thermal uniformity
Excitation is provided by high intensity LEDs filtered to provide light at 500nm that is capable of exciting all fluorophores commonly used in qPCR. A prism is used to generate spectra from fluorescent emissions. These spectra are imaged using a CMOS camera.
The powerful and easy to use software provides the following features:
- Automated analysis modules for:
– absolute and relative quantification
– melting curve analysis
– endpoint genotyping
– high resolution melting (HRM)
- Quick start using templates for all major applications
- Analysis of full spectral data
- Generation of custom dye files for novel fluorophores
- Straightforward setup and editing of sample and target information
- Comprehensive data export functions
- Compatible with Windows, Mac & Linux Systems
- Instrument start from a USB flash drive, usingpreprogrammed settings
MyGo Pro Software is delivered and easily installed from a USB flash drive. The software has no license restrictions.
When installed in a network, the software can control several MyGo Pro Instruments connected via LAN.
Technical Specifications:
Dimensions (W x D x H): 24 x 27 x 23 cm
Weight: 7 kg
Operating noise: <40 dB(A)
Electrical Voltage: 240 V (+/- 10%)
Frequency: 50 – 60 Hz (+/- 10%)
Power: 170 W
Number of reactions: 32
Reaction Vessels: 0.1ml single tube and/or 8-tube strips
Reaction volume: 10 – 100 μl (20 μl recommended)
Temperature cycling system: Peltier-based heating & cooling from +37 to +99°C
Heating rate: 5°C/s & Cooling Rate: 4°C/s
Temperature uniformity: +/- 0.05°C (SD)
Temperature accuracy: +/- 0.25°C
Run Time: <50 min
Fluorescence Excitation: 500 nm nm (blue LED)
Fluorescence Detection: 120 optical channels from 510 to 750 nm (CMOS camera)
Supported Assays Formats: Intercalating dyes (e.g.,SYBR Green I), Hydrolysis Probes, Molecular Beacons, SimpleProbes, HybProbes
Factory-Calibrated Dyes (at shipment): SYBR Green I / FAM / ResoLight; VIC / HEX / Yellow555; LC RED 610 / Texas Red; Cy5
Multiplexing Capabilities: Up to 7 targets
Applications: Relative and Absolute Quantification Analysis, Melting Peak Analysis, Endpoint Genotyping Analysis, High Resolution Melting (HRM)
Sensitivity: 1.1 fold discrimination, 9-log dynamic range, Single copy detection
Connection options: LAN, Direct connection to computer (RJ45), PC-free (USB stick/flash drive controlled)
Click Here To Download Catalogue
