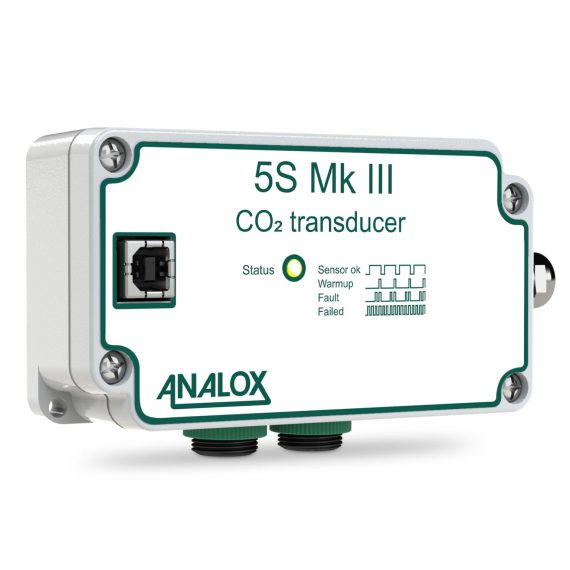

CO2 GAS SENSOR

Brands: Analox

~~$0.00~~

Shipped From Abroad

Key Features

Low power consumption
Variety of ranges
Analogue output
Long life expectancy
Digital outputs
Temperature-compensated

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Sku:

SF1033560130141-8

Brands:: Analox

Description
Reviews (0)

Description

Technical Specification

C02 Transducer

Warm up time	30 seconds
Response time	T90 in <30 seconds
Detection technique	Infrared absorption
Storage temperature	−20 to +70°C
Humidity	0 to 99% non condensing
Flow range	0.1 to 2 litres/minute
Operating temperature	−5 to +55°C
Pressure range	800 to 1500 mbarA
Power supply	9 to 36 V DC (regulated 5V option also available)
EMC emissions	To EN50270 2006, Type 1
EMC susceptibility	To EN50270 2006, Type 2. Max deviation under 10V/m testing is 150 ppm
Output	Either 0-2V DC into load of >1000 Ohms or 4-20mA into load of <=400 Ohms (specifiy at time of order)
Warm up fault conditions	Either >2V DC (0-2V DC option) or >20mA (4-20mA option)
Enclosure	Die cast aluminium
Dimensions	115 x 70 x 40 (WxHxD), including flow adaptor

Click here to download User Manual

Click here to download Data Sheet
