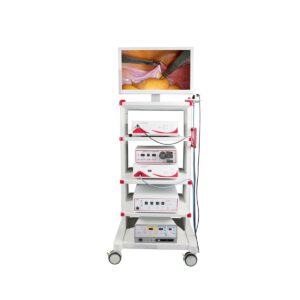

Complete Endoscopy Stack

Description

The medical endoscopy system laparoscope endoscope complete set is applied to Gynecological surgery, Hysterectomy, Uterine myoma enucleation, Ectopic pregnancy surgery, Hepatobiliary surgery, Spleen and pancreas surgery, Gastriontestinal surgical procedures, Urinary system surgery, Laparoscopic inguinal herniorhaphy, Tubal surgery, Infertility exploration, Pelvic Lymph Node Dissection.

Features:

LTES08 Medical Monitor

Specification:

• 21″ HD LCD screen,
• Dimension ratio: 16:9
• Input signal: DVI, VGA, S-VIDEO, CVBS
• Power supply: AC100~240V 50/60HZ
• Power:40VA

Horizontal Resolution:1280×1024

LTES03 Medical Endoscope Full HD Camera

Specification:

• Original imported CMOS chips;
• Effective Pixels:1920*1080;
• Progressive scanning;
• Full HD camera 1080P;
• Anti-jamming processing;
• Horizontal Resolution:1080P(1000lines)
• Video Output: HDMI*4, SDI*1, BNC*1, VGA*1
• Manual/ auto white balance;
• SNR (Signal to Noise Ratio): ≥50dB
• Digital zoom: 0-60X;
• Brightness: ODS adjusting

Optical coupler – 28mm Waterproof

Camera head Freeze button;

Light guide cable 2.5 meter, standard diameter

LTW800L Medical LED light source

Specification:

• OSRAM bulb
• Power: 490,000 Lux (50watt)
• Color temperature: ≥6500k
• Light image temperature: ≤80℃

Digital display with cooling fan

Light guide cable – 2.5 meter, standard diameter

LTD300B-2 High Frequency Electrosurgical Unit

Specification:

• multi-functional, electrocoagulation and electricity cut
• Three output ports: one for monopolar cut, one for monopolar fulguration and one for bipolar coagution.

Six working mode: regular cut. blended cut I, bledded cut II, single spot coagulation, spurt coagulation and bipolar coagulation”

Independent power off electrical cut, electrical coagulation and bipolar coagulation Suitable for endoscopic surgery.

Maximal out-put power:  less than 400W;

LTES06 Irrigation Pump

Rated power: 50Va;

Range of pospressure:10~50kPa;

Range of flow: -50 – 10kPa

Washing and suction the effluent or fragment in the enterocoelia surgery

LTES05 CO₂ Insufflator

Specification:

• Rated power: 40VA;
• Range of flow:10-30L;
• Range of pressure: 5-30mmHg;

Noise: ≤50dB”

Full HD Video Recorder

Recording format: MP4;

Recording interface: USB disk and Removable hard disk;

Extermal mobile HDD: MAX 2T

Input signal: BNC、HDMI

Output signal: HDMI

Trolley

Specification:

670*610*1310mm;

Material: metal;

Suitable robust and corrosion resistant trolley with five-storey shelves with suitable distance between the shelves.

The trolley is provided with castors and two of the castors are lockable.”
