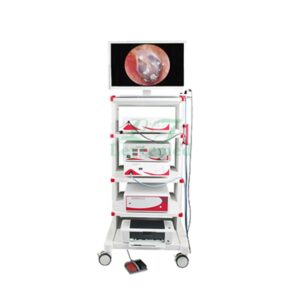

Complete ENT Stack

• 21" HD LCD screen,
• Dimension ratio: 16:9
• Input signal: DVI, VGA, S-VIDEO, CVBS
• Power supply: AC100~240V 50/60HZ
• Power:40VA

• Original imported CMOS chips;
• Effective Pixels:1920*1080;
• Progressive scanning;
• Full HD camera 1080P;
• Anti-jamming processing;
• Horizontal Resolution:1080P(1000lines)
• Video Output: HDMI*4, SDI*1, BNC*1, VGA*1
• Manual/ auto white balance;
• SNR (Signal to Noise Ratio): ≥50dB
• Digital zoom: 0-60X;
• Brightness: ODS adjusting

• Power: 490,000 Lux (50watt)
• Color temperature: ≥6500k
• Light image temperature: ≤80℃

• Weight - 105 kg
• Dimensions - 92 cm Wide x 68 cm Deep x 139 cm High (93 cm to the table surface)
• Packaging Dimensions - 105 cm Wide x 75 cm Deep x 160 cm High
• Operating voltage supply - 110 to 240 V~, 47 to 63 Hz (12 to 6 A)
• Power input - 120 W typically (max. 1.2 kW with auxiliary outlets used)
• Battery autonomy - 90 min typically
• Auxiliary power outlets - 4, with automatic protection
• O₂, N₂O and Air supply - 2.7 to 6.9 bar (39.1 to 100 psi)
• Screen - TFT 18.5" (47 cm) projected capacitive touchscreen
• Protection class - Class I, gas analyser type BF defibrillation proof
• Classification - Class II b
• Storage - One front drawer with self-brake system and two back cabinets with door
• Lighting - LED bar below the screen controlled from the touchscreen
• Auxiliary integrated systems - Auxiliary 02 flow meter (0-15 L/min), Auxiliary 02 suppy valve (NF standard) and Suction device
• Communication ports - 1 x RS-232, 2 x USB, 1 x LAN Ethernet

• Fresh gas flow - 0 and 0.1 to 18 L/min 02/N20/Air
• Accuracy - 0.1 to 0.5 L/min = ±0.05 L/min; 0.5 to 18 L/min = ±10 %
• 02 concentration - 21 to 100% vol. with Air, 25 to 100% with N20 (minimum 200 ml/min 02)
• 02 Safety fresh gas (backup) - 0-0.2-0.4-0.7-1-1.5- 2- 3- 4- 6- 8-10-12-15 L/min 02
• 02 flush (+02) - 40 L/min standard (adjustable 25 - 75 L/min upon requirement)

• Autoclavable - 134 °C
• Weight of breathing system - 9.8 kg
• C02 absorber volume - 1.5 L
• Leakage - < 150 mL/min (at 30 hPa)
• Pressure limiting valve APL - 0 to 70 hPa
• Pressure relief valve - 125 hPa
• Vacuum safety valve - 0.3 hPa
• resistance at 60L/min - 5.80 hPa
• resistance at 60L/min - 2.90 hPa
• resistance at 30L/min - 3.55 hPa
• resistance at 30L/min - 0.89 hPa
• Internal Compliance at 30 hPa - 15 mL

• Volume Controlled Ventilation (VCV)
• VC Synchronized Intermittent Mandatory Ventilation (VC-SIMV)
• VC-SIMV with Pressure Support (VC-SIMV-PS) *

• Pressure Controlled Ventilation (PCV)
• PC Synchronized Intermittent Mandatory (PC-SIMV)
• PC-SIMV with Pressure Support (PC-SIMV-PS) *

• Adaptive Pressure with Volume Guaranteed (APVG) *
• APVG Synchronized Intermittent Mandatory (APVG-SIMV) *
• APVG -SIMV with Pressure Support (APVG-SIMV-PS) *

• (other trade names: PS, ASB, SPS, IPS)

• Manual ventilation through the CABS system (Auto/Manual software controlled)
• Spontaneous ventilation either through the bellows (auto mode) or through the bag
• (manual mode) Manual ventilation through the external fresh gas outlet for non-rebreathing systems (Bain, Mapleson, ...)

• Tidal volume - 5 to 1500 mL
• Inspiratory pressure - 0 to 68 hPa
• Ventilation frequency ­- 3 to 120/min
• Inspiratory time - 0.05 to 16.6s
• l:E ratio - 5:1 to 1:8
• Inspiratory pause - 0 to 60%
• Inspiratory flow - max. 150 L/min
• PEEP - 0 to 30 hPa
• Flow trigger - 0.2 to 15 L/min
• Pressure support - 5 to 50 hPa
• Ramp time - 0.1 to 2 s
• Maximum pressure - 0 to 68 hPa

• 5" (47 cm) projected capacitive touchscreen, supported on a 360° rotating and 2 axis tilting arm.
• Measurements displayed: Peak pressure; Plateau pressure; Mean pressure; Expiratory minute ventilation; Expiratory tidal volume; Inspiratory tidal volume; Expiratory volumeter; Breathing rate; Compliance and Resistance (in VC modes); Patient info (age, weight, MAC, Class ASA); Connected sensors; Battery status; Power supply status; Gases supply pressures for 02, N20 and Air; Inspiratory and expiratory concentration of 02, N20, C02 and Anaesthetic gas*
• Parametres charted as curves (up to 3 simultaneously): Airway pressure; Expiratory flow; Inspiratory flow; Volume; Fresh gases (Rotstyle); Concentration of 02, N20, C02 and Anaesthetic gas*; Trends: Minute volume, MAC and gases (02, N20, C02 and Anaesthetic gas).
• Display for the performance of the hospital Anaesthetic Gas Scavenging System (AGSS).
• Configurable interface: bright/dark, multi-language.
• Loops (up to 2 simultaneously): Volume-Pressure, Flow-Volume, Pressure-Flow, C02-Volume.
• Fresh gas virtual rotameters for 02, N20, Air. * C02, N20 and Anaesthetic gas monitoring with the accessory multigas analyzer main-stream or side-stream; 02 real-time monitoring via paramagnetic

Click Here To Download Catalogue

• Brushed Steel Finish
• 3L capacities
• Gripped pedal
• Easy clean plastic bucket
• Lip for hiding excess bag

• Disposable syringe for aspiration and irrigation
• Ideal for suctioning a newborn's airway
• Sterile
• Bulb Aspirator Syringe. - Supplied in sealed pack - Sterile.
• Latex Free Bulb aspirator Syringe - Essential part of any Whelping kit.
• Quickly and hygienically removes fluids from mouth and throat of puppies & Kittens.
• Nasal aspirator to clear nose in babies.
• Can be used to wash ulcers.

• Test Method: Dry Strip color-developing method
• Test Principle: Dual wavelength reflectance photometry
• Light Source: Cold Lamp with high brightness and long lifetime
• Test System: Color-indentify system with high sensitivity and repeatability
• Wavelength: 520nm, 640nm, 660nm
• Throughput: 120 Strips/Hour
• Test Mode: Single and continuous test mode are selectable
• Test Slot: Using sliding Slot, Easy to clean and replace, lower the carryover
• Waste Collection: Waste urine and waste strips can be collected automatically
• Test Strip: Use GENIUS original strips only
• Display: LCD with high brightness and resolution
• Language: Customizable language software
• Memory: Save 2000 samples results, and auto recover the results when power off during working
• Interface: RS-232 serial port, can be connected to external printer and computer Printer: Inner thermal printer, can be connected to external printer
• Report format: Half quantitative and qualitative, report the color and turbidity is available
• Result unit: SI unit and routine unit are selectable
• Status Check: Auto-check the status during power on and off, auto-indentify the alarm
• Working Environment: Temperature10℃～30℃; Humidity: 20%RH～80%RH
• Power: 100-240V, Auto adapt according to the input voltage
• Consumption: ≤80VA
• Quality System: Certified by TUV and CMD

• State-of-the-art low-noise amplifier with 18-bit A/D converters and artifact-reduction software provides clean waveforms
• Built-in rejection ratios of 110 dB or greater (differential mode) and 112 dB or greater (isolation mode) limit variations in signals
• Electrode input impedance of 200 MΩ ±20% helps ensure clean signals
• On-screen examination guide directs electrode and stimulation placement for smooth and efficient examinations
• HL7^® gateway integration helps ensure quick flow of information and streamlines workflow
• Intuitive control panel and stimulators aid in acquiring and progressing through studies
• Customizable protocols shorten examination time
• One-click report generation produces print-ready reports with customized logos, test results, exam waveforms and highlighted abnormal values
• Proprietary all-in-one NCS program performs MCS, SCS and F-wave for quick examinations
• Customized auto-copy settings allow waveforms to be stored and automatically transferred to long-term storage
