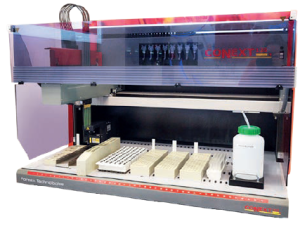

CoNEXT125

Key Features

• Semi-automatic RIA automation – integrates pipetting and washing for efficient sample prep.

• High throughput capacity – load up to 160 sample tubes simultaneously.

• Four simultaneous dispensing needles – reduces preparation time per batch.

• Flexible visual programming interface – easy setup for different assays and protocols.

• Open system design – adaptable to various reagent racks and applications (e.g., ELISA plates).

• Incubation externally – avoids instrument blocking and speeds workflow.

• Simple maintenance – few moving parts and easy cleaning.

Specifications

• Made of high quality PP material with good transparency.
• Applied for Gilson/Finland/Eppendorf Pipettors.
• Carefully inspect of raw material and manufactured under strict process check, all tips are with excellent accuracy and precison.
• Special siliconizing on the inner surface ensure no liquid adhesion and accurate sample transfer.
• Standard tips and filter tips can be autoclaved, high temperature sterilization acceptable.

• Lowest operation and tip ejection forces
• Fully autoclavable
• Ultra light weight with space-age materials
• Secondary adjustment option for various liquid classes
• Spring loaded tip con
• For transferring molecular samples and PCR mix solutions.
• One set is for DNA work and the other for RNA work. Each with the following specs
• Light weight, traditional tip shaft, and will fit all generic brands of tips
• Equal to or better than accuracy and precision compared to ISO 8655, so results can be trusted.
• Easy and quick volume adjustment with or without gloves. Foolproof volume lock prevents accidental volume changes.
• Low maintenance and autoclavable 121° for at least 20 minutes
• Quick release

• Made of high quality PP material with good transparency.
• Applied for Gilson/Finland/Eppendorf Pipettors.
• Carefully inspect of raw material and manufactured under strict process check, all tips are with excellent accuracy and precison.
• Special siliconizing on the inner surface ensure no liquid adhesion and accurate sample transfer.
• Standard tips and filter tips can be autoclaved, high temperature sterilization acceptable.

• Ease of use in application and maintenance
• Designed with sample and reagent ID-barcode reading, in-tip dilution reducing consumable costs
• Intuitive and highly flexible open software with complete data reduction and LIS interfaces
• Integrated PC and touchscreen eliminates the need for an external workstation
• Smart time-management allows processing up to 3 microplates simultaneously

• Photometric range: 0 to 3.0 OD
• Spectral range: 400 nm to 700 nm (up to 8 filters)
• Read time: < 15 sec single, < 30 sec dual
• Precision: 1% CV at 1.0 OD
• Accuracy: ±0.005 OD or 2.5 % (whichever is greater)
• Linearity: 0 to 2.000 OD ±1 %

• Min / max. volumes: 10 µl to 300 µl with 300 µl tip, 301 µl to 1000 µl with 1100 µl tip
• Precision (single dispense): < 3 % CV at 20 µl, < 3 % CV at 100 µl
• Precision (multi dispense): < 10 % CV at 16 x 20 µl, < 3 % CV at 8 x 100 µl
• Features: Pipetting pressure monitoring, capacitive liquid level detection, tip detection, mixing, multiple dilution steps, archiving

• Sample and reagent capacity: Up to 192 samples (Flexible: e.g. 144 samples + 8 reagents + 16 controls)

• Temperature range: Up to 45 °C
• Temperature uniformity: ±1.5 °C (with in-process temperature uniformity monitoring)
• Shaking: 20 Hz

• Precision: 10% CV at 300 µl
• Residual volume: <2.5 µl in U-bottom (mean), <4 µl in flat bottom (mean)
• Wash buffer capacity: 3 wash buffers
• Modes: Sweep mode, soak, top and bottom wash, variable pump speed

• Width x Depth x Height: 125 cm x 65 cm (without waste bag) x 75 cm with closed cover (49” x 26” x 30”)
