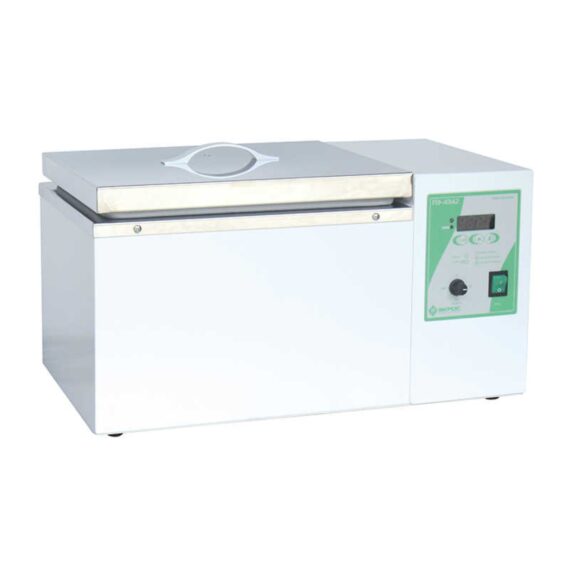

Digital oil bath PE-4342 (11 L)

Laboratory Digital Oil Bath PE-4342 is intended to handle a wide range of laboratory procedures for industrial, biochemical and scientific research. The instrument is designed for accurate temperature control between ambient +10°С up to 250°С.

Technical specifications: Supply voltage, V - 220±10% Maximum power consumption, W - 1500 Operating temperature range, ambient, °С - + 10 to 250 Temperature accuracy, °С - 0.1 Temperature uniformity, °С - ±1.5 Temperature non-uniformity, °С - ±3.0 Bath volume, L - 11 Inside bath dimension (WхDхH), cm - 30х22х17 Dimension (WхDхH), cm - 55х31х33 Weight, not more than, kg – 18

Operating conditions: Ambient air temperature, °С - 5 to 35 Relative air humidity, % - up to 80 Allowable time of continuous work, hours - unlimited

Scope of delivery: - PE-4342 series Oil Digital Bath - 1 pc - Stainless steel 304 (AISI 304) Lid – 1 pc - Heater cover - 1 pc - Power cable – 1 pc - Data Sheet and Operating Manual - 1 pc

Click Here To Download Catalogue

• Auto zero function: Manual blanking not required
• Dual wavelength measurement system:
• 2 wave lengths 455nm and 575nm
• Plays major role to remove the interference caused due to Hemolysis & turbidity of sample
• LED Light source:
• LED does not require replacement as it lasts longer
• As compared to Lamp, LED are more suitable as there is no intensity fluctuations
• No warm up time required.
• Flexible unit selection:
• Two units either mg/dl or umol/L are selectable, ease of reporting
• Compact slot for Capillary:
• Accuracy of results are directly related to proper alignment of Capillary
• B-111 has the easiest mode to ensure precise values
• Data transfer:
• External device can be connected to instrument through RS232 por
• USB port

• Light source - LED
• Wavelength - 455nm and 575nm
• Net weight - 1kg
• Measuring range - 0-30 mg/dl , 510 umol/L
• Display - 16×2 LCD module with backlight
• Auto calibration - Yes
• Sample type - Serum or plasma
• Sample volume - 40-80μL
• Test time - <5sec
• Units - mg/dl or umol/L
• Dimensions - 150 (W) × 115 (H) × 190 (D) mm
• Interface - RS232
• Reading cuvette - Heparinized micro capillary holder
• Storage temperature - 15-40°c
• Power supply - DC 9V(DC adapter)
• Power consumption - <2W

• Made of high quality PP material with good transparency.
• Applied for Gilson/Finland/Eppendorf Pipettors.
• Carefully inspect of raw material and manufactured under strict process check, all tips are with excellent accuracy and precison.
• Special siliconizing on the inner surface ensure no liquid adhesion and accurate sample transfer.
• Standard tips and filter tips can be autoclaved, high temperature sterilization acceptable.

• Ease of use in application and maintenance
• Designed with sample and reagent ID-barcode reading, in-tip dilution reducing consumable costs
• Intuitive and highly flexible open software with complete data reduction and LIS interfaces
• Integrated PC and touchscreen eliminates the need for an external workstation
• Smart time-management allows processing up to 3 microplates simultaneously

• Photometric range: 0 to 3.0 OD
• Spectral range: 400 nm to 700 nm (up to 8 filters)
• Read time: < 15 sec single, < 30 sec dual
• Precision: 1% CV at 1.0 OD
• Accuracy: ±0.005 OD or 2.5 % (whichever is greater)
• Linearity: 0 to 2.000 OD ±1 %

• Min / max. volumes: 10 µl to 300 µl with 300 µl tip, 301 µl to 1000 µl with 1100 µl tip
• Precision (single dispense): < 3 % CV at 20 µl, < 3 % CV at 100 µl
• Precision (multi dispense): < 10 % CV at 16 x 20 µl, < 3 % CV at 8 x 100 µl
• Features: Pipetting pressure monitoring, capacitive liquid level detection, tip detection, mixing, multiple dilution steps, archiving

• Sample and reagent capacity: Up to 192 samples (Flexible: e.g. 144 samples + 8 reagents + 16 controls)

• Temperature range: Up to 45 °C
• Temperature uniformity: ±1.5 °C (with in-process temperature uniformity monitoring)
• Shaking: 20 Hz

• Precision: 10% CV at 300 µl
• Residual volume: <2.5 µl in U-bottom (mean), <4 µl in flat bottom (mean)
• Wash buffer capacity: 3 wash buffers
• Modes: Sweep mode, soak, top and bottom wash, variable pump speed

• Width x Depth x Height: 125 cm x 65 cm (without waste bag) x 75 cm with closed cover (49” x 26” x 30”)

Click Here To Download Catalogue

• Trinocular optical head for monitoring and digital imaging
• Impressive 7.5x zoom magnification
• 115 mm working distance
• Maximum ergonomics
• Rugged, durable design suits a variety of applications and environments
