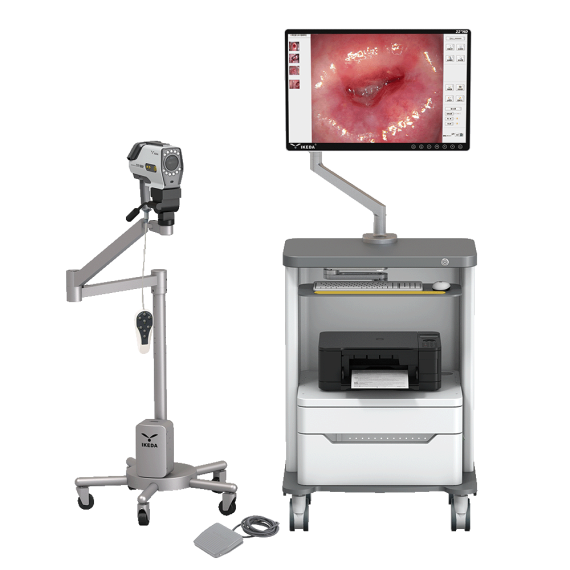

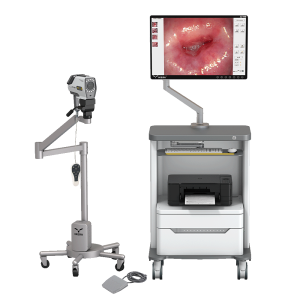

Digital Video Colposcope YKD-3001

The YKD-3001 Digital Video Colposcope System is a reliable diagnostic solution for gynecological examinations and cervical cancer screening. It features a high-resolution digital camera combined with a stable LED light source to deliver clear, detailed images with accurate color reproduction. The system includes colposcopy management software for image capture, analysis, storage, and reporting. With flexible camera positioning and user-friendly controls, it enhances diagnostic accuracy and workflow efficiency in hospitals, clinics, and specialized women’s health centers.

Key Features

• High-resolution digital imaging system

• LED cold light source for stable illumination

• Clear visualization with accurate color reproduction

• Colposcopy management software for diagnosis and reporting

• Image capture, freeze, and playback functions

• Flexible stand with adjustable positioning

• User-friendly interface for easy operation

• Supports data storage and case management

• Compatible with hospital information systems

Product Detail

• Outstanding image quality.
• Perfect HD 1280X720p color definition.
• Optical zoom.
• LED high power illumination.
• Great maneuverability.
• OSD (on screen display) with indication of real magnification.
• Zoom and focus operated by 4 commands joystick.
• Still function.
• WB (white balance) push bottom control.
• Perfect color discrimination due to CMOS HD technology.
• Floor stand system with 4 antistatic wheels with break.
• Ratched up down pole with double arm for easier and steady positioning.
• Magnification progressive. Optical zoom up to 37x and digital zoom up to 70x.
• Focus automatic and manual.
• Distance 240-300mm.
• Filter optical green.
• Led life 50.000 hs.
• Optional: monitor stand pole / Endodigi HD recording device.

• Outputs - 2x HDMI
• Magnification - Progressive magnification. Optical zoom up to 50x and digital zoom up to 128x.
• Focus - Automatic and manual
• Resolution - 1280 x 720 P
• Depth of Field - 250 - 300
• Field of View - 8 - 140 mm
• Distance - 200 - 320 mm
• Filter - Optical green
• Light Source - LED High Intensity, 6500 Kelvin
• LED Life - 50.000 hrs
• Illuminated Control - Electronic adjustment. Constant light color.
• Power Supply - 100 - 120 VAC, 50/60 Hz

Click Here To Download Catalogue

• A safe and effective method of surgical abortions for up to 12 weeks of pregnancy
• Quiet procedure meets clients' needs for privacy
• Enables raster recovery limes compared to operating room procedures
• Can be performed without the need for a specialist set up or operating theatre
• 98% effective with low complication rates, recommended by the WHO
• Safe alternative to sharp curettage
• Reduces procedural costs by performing procedures in an outpatient setting
• No need for general anesthesia
• Single-valve Syringe sizes: 24.5cm length, 3cm diameter, 60ml volume, 375 mm Hg vacuum
• Easy to operate
• Cannula is named by its diameter (e.g. 4mm cannula's diameter is 4nun).
• Current cannula sizes are 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 11 mm and 12mm.
• Length: 23.0cm length

• Ventilation mode: VCV, PCV, PSV, SIMV(VCV)+PSV, SIMV(PCV)+PSV, MMV, CPAP, Backup apnea.

• Maximum safety pressure of air circuit: no more than 6kpa.
• Inspiratory oxygen concentration: 21-100%.

Ventilation Performance:

• Respiratory rate (f): 4-99 times / min,
• Inspiratory time (Ti): 0.2-6 s,
• Breath holding time (Tp): 0-2s,
• Triggering pressure (Pt): inspiratory triggering pressure is - 2kpa-0kpa,
• Tidal volume (Vt): 0-2000ml;
• Maximum minute ventilation volume: not less than 18 L / min.
• PSV：0～5 kPa,
• Peep Pressure: 0-3kpa,
• Inspiratory flow rate: 0-80 L / min.
• SIMV frequency: 6-60 times / min,
• Inspiratory pressure: 0-6kpa,

Alarm Performance:

• Pressure High Limit (Ph) alarm: 2 ~ 6kpa, audible and visual alarm.
• Pressure Low Limit (Pl) alarm: 0～2KPa, audible and visual alarm.
• Minute ventilation High Limit (Mvh) alarm: audible and visual alarm when ventilation exceeds the set value.
• Minute ventilator Low limit (Mvl) alarm: audible and visual alarm when ventilation is lower than the set value.
• Power off alarm: Power off alarm immediately, and the alarm duration shall not be less than 120s.
• Mute: no more than 2 minutes.

Monitoring Performance:

• 12.1 inch color LCD
• Tidal volume (VT): 0 ～ 2000ml
• Measured total frequency (Ftot), Spont. frequency (Fspont)
• Minute ventilation (Mv).
• I: E ratio.
• Airway pressure (PAW).
• Peak pressure (Ppeak)
• Peep pressure: 0.1 ~ 2KPa
• Pressure-Time and Flow-Time waveform

• Pneumatically driven electric controlled、micro-computer controlled unit.
• Operation control panel adopts distinct LED display, easy operation.
• High quality humidifier.
• Contains high quality tubes、accessories、spare parts

• Up to 150 patients date saving
• Fetal heart sound play and record in PC
• Multiple language support
• Quick guide display
• Various installation method

• Ultrasound Frequency: 0.985MHz
• Intensity: 10mW/cm2 or less
• FHR Range: 30~240bpm FHR
• Accuracy: ±2% of Range
• Auto-detection of Dual Fetal Movement
• External Type
• Frequency Response: DC~0.5HZ
• Reference(Zero) Control
• Measurement Range: 0~99 units

• Thermal Array Type
• Print Speed: 1,2,3, cm/min, high speed
• Auto print: Off,10,20,30,40,50,60 min
• Paper Feeding Function

• 3 Channels (FHR I, FHR II, UC)
• 7" Wide TFT-Color LCD:800(W) X 480(H) BT-350LCD
• Large 7-segment volume lever LED : BT-350 LED

• Mark Function
• FHR II Offset Function
• Auto Print function
• Fetal movement print function
• Multi-language quick guide function: BT-350 LCD

• Ultrasound Doppler Probe 2ea
• Event Marker Jack 1ea
• Power Adaptor Cord 1ea
• Probe Belt 3ea
