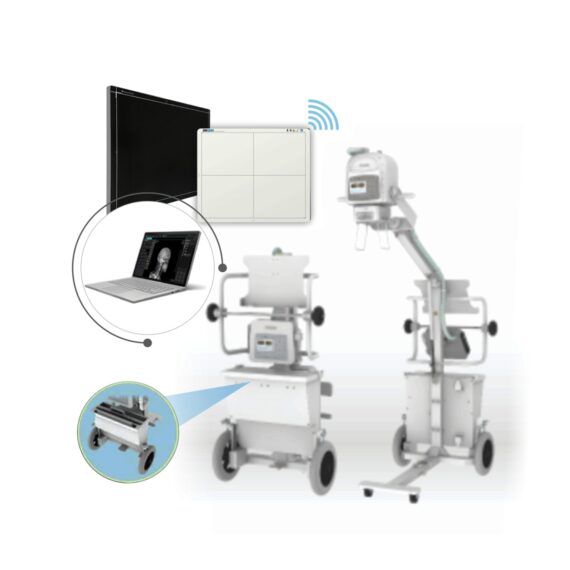

DRGEM JADE Analogue Mobile X-ray Machine with DR System

Brands: DrGem Corporation

~~$0.00~~

In Stock

DRGEM JADE Analogue Mobile X-ray Machine with Flat Panel Detector (MAN04336W), 17×14 Inch, Portable, Wireless, Csl Workstation (laptop) including Software – Is one of the lightest portable X-ray systems on the market, allowing it to be used in any imaginable way including bedside, operating rooms, intensive care units and in veterinary fields. With a simple, easy-to-use operator console, three-way control, two-step foldable stand and auto lock system, JADE is a user-friendly portable X-ray system.

Delivery & Availability:
Typically 14-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Sku:

SF1033560070

Tags:

Brands:: DrGem Corporation

Description
Reviews (0)

Description

DRGEM JADE Mobile X-ray Machine with Flat Panel Detector (MAN04336W), 17×14 Inch, Portable, Wireless, Csl Workstation (laptop) including Software – Is one of the lightest portable X-ray systems on the market, allowing it to be used in any imaginable way including bedside, operating rooms, intensive care units and in veterinary fields. With a simple, easy-to-use operator console, three-way control, two-step foldable stand and auto lock system, JADE is a user-friendly portable X-ray system.

Features of DRGEM JADE Analogue Mobile X-ray Machine:

Vehicle loadable
Wheel lock
Automatic tube arm lock at any angle
Storage space for cassettes or detectors
User Programmable APR, save up to 9 APR settings
Three way X-ray exposure
USB interface & Bluetooth
Remote control (Option)
5kg including X-ray unit, collimator and stand
Maximum hight of 228.6cm
Exposure Hand Switch
Foldable, two-step stand
In-Built Battery

Technical Specifications of DRGEM JADE Analogue Mobile X-ray Machine:

Power Rating – 4kW,
100kHz, high frequency X-ray Generator
kVp Range – Maximum 140kVp
mAs Range – 0.1-250mAs
mA Range – 10 to 100mA
330~2000mm FD

Collimator with 30 seconds LED lamp timer

Click Here To Download Catalogue
