e-xam® diagnostic penlight

Brands: Riester

~~$0.00~~

Shipped From Abroad

e-xam® diagnostic penlight is exceptionally bright, with all possible combinations to illuminate body openings such as the throat, nose and ears, for pupil examination and general use. The e-xam® is equipped with a xenon lamp or LED lamp with AA size handles for use with alkaline batteries.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Brands:: Riester

Description
Reviews (0)

Description

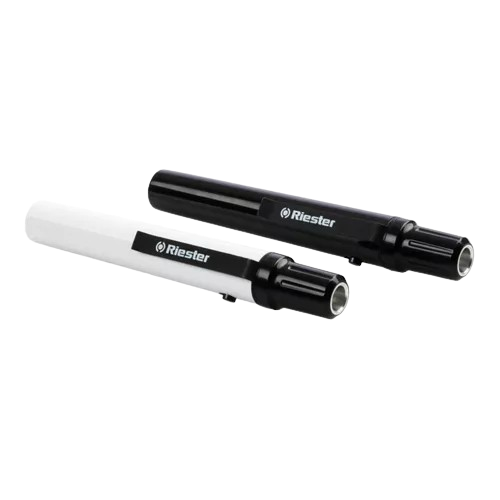

The e-xam® diagnostic penlight is a high-performance tool used by trained physicians and specialists for medical diagnosis, especially of the throat and pupil. Its design includes an inbuilt tongue depressor holder, making it highly functional for examining the oral cavity. The penlight is available with either high-performance LED or Xenon (XL) lamps.

e-xam® diagnostic penlight – details

Lamp head, LED
On/Off button
Battery Compartment
Tongue blade holder

Features and benefits

Photobiologically validated for the lighting of pupils according to EN 62471:2008
Pre-focused and even field of light
Bright and natural white light from high-performance LED
LED burns at least 20,000 hours
Low maintenance costs thanks to long LED and battery service lives

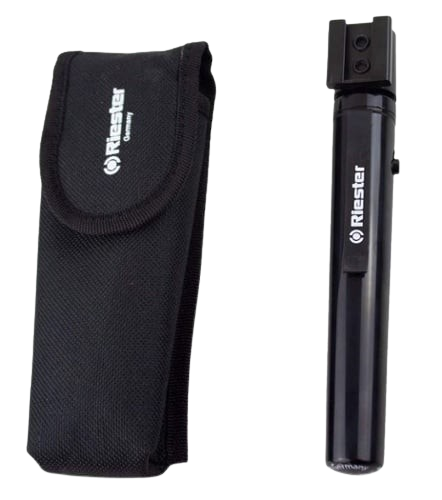

ABS casing with metal clip, disinfectable, easy to use with on/off switch, including blade holder, batteries, and nylon case

Product details

e-xam®

Dimension
Blade holder	Recording for wooden mouth spatula
The lamp for e-xam®	LED 2.5 V, 5000 – 5500 Kelvin, 180,000 Lux max. Xenon 2.5 V, 3500 – 4000 Kevin, 60,000 Lux max.
Light Field	LED 2.5 V, Approx. 11 cm Ø / distance 15 cm Xenon 2.5 V, Approx. 14 cm Ø / distance 15 cm
Batteries	2 Alkaline AA 1.5 V batteries
Ambient temperature	0 °C to 40 °C
Relative Humidity	30% to 70% non-condensing
Storage/ Transport Ambient temperature	-10 °C to 55 °C
Storage/ Transport relative Humidity	10% to 95% non-condensing

Download Riester e-xam Catalogue EN

Reviews

There are no reviews yet.

Be the first to review “e-xam® diagnostic penlight”

Quick Comparison

e-xam® diagnostic penlight remove Hersill V7 Plus B Emergency High Vacuum Portable Suction Machine remove MIR Spirobank II Advance remove MIR Spirobank II Advanced Bluetooth Smart remove Flexible Endoscope remove MIR Spirobank II Basic remove

Name e-xam® diagnostic penlight remove Hersill V7 Plus B Emergency High Vacuum Portable Suction Machine remove MIR Spirobank II Advance remove MIR Spirobank II Advanced Bluetooth Smart remove Flexible Endoscope remove MIR Spirobank II Basic remove


SKU SF1033560450-6 SF10335601291 SF10335601292 SF103356013089-2 SF10335601293

Rating

Price

~~$0.00~~

Stock

Availability

Add to cart

Description

Shipped From Abroad e-xam® diagnostic penlight is exceptionally bright, with all possible combinations to illuminate body openings such as the throat, nose and ears, for pupil examination and general use. The e-xam® is equipped with a xenon lamp or LED lamp with AA size handles for use with alkaline batteries.

Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad The V7 range of high vacuum portable suction units are ideal for use in healthcare facilities (surgery, gynaecology, ENT), homes, ambulances, transportation and use in emergency situations. Delivery & Availability: Typically 21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

In Stock

The new Spirobank II Advanced from MIR is a user-friendly, intuitively operable mobile spirometer that has enough storage space to record up to 10,000 tests and enables immediate diagnosis thanks to the traffic light display. Delivery & Availability: Typically 7-14 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

In Stock

The Spirobank II Smart Spirometer with user-friendly technology and Backlit, high-resolution display. On screen results and curves preview for immediate data analysis. The new standard for portable spirometry for iPad and PC windows users. Delivery & Availability: Typically 7-14 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped From Abroad

Features

Crystal clear optics
Precise motion for perfect control
The flexible tip can be moved 130°
Waterproof design
Supplied in a carrying case with leak tester and Storz/Wolf adaptors

Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

In Stock

The Spirobank II Spirometer basic is an affordable way for you to offer screening spirometry for a great price to your practice. You can use this spirometer remotely, or you can use it as an online spirometer with your PC. Delivery & Availability: Typically 7-14 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Content

e-xam® diagnostic penlight – details

Lamp head, LED
On/Off button
Battery Compartment
Tongue blade holder

Features and benefits

Photobiologically validated for the lighting of pupils according to EN 62471:2008
Pre-focused and even field of light
Bright and natural white light from high-performance LED
LED burns at least 20,000 hours
Low maintenance costs thanks to long LED and battery service lives
ABS casing with metal clip, disinfectable, easy to use with on/off switch, including blade holder, batteries, and nylon case

Product details

e-xam®

Dimension
Blade holder	Recording for wooden mouth spatula
The lamp for e-xam®	LED 2.5 V, 5000 - 5500 Kelvin, 180,000 Lux max. Xenon 2.5 V, 3500 - 4000 Kevin, 60,000 Lux max.
Light Field	LED 2.5 V, Approx. 11 cm Ø / distance 15 cm Xenon 2.5 V, Approx. 14 cm Ø / distance 15 cm
Batteries	2 Alkaline AA 1.5 V batteries
Ambient temperature	0 °C to 40 °C
Relative Humidity	30% to 70% non-condensing
Storage/ Transport Ambient temperature	-10 °C to 55 °C
Storage/ Transport relative Humidity	10% to 95% non-condensing

Download Riester e-xam Catalogue EN

The V7 range of high vacuum portable suction units are ideal for use in healthcare facilities (surgery, gynaecology, ENT), homes, ambulances, transportation and use in emergency situations. Features:

ABS ergonomical case and ancorage system tested to 10 g.
Long life medical grade piston type suction pump. Oil-free and maintenance-free.
Vacuum gauge of 0-100 kPa (0-760 mmHg).
Precise and stable vacuum control knob.
Indicator lights: ON, flashing, vacuum level, vacuum indicator and battery status.
Maximum noise level: 49 + 1,5 dB (depending on model).
Battery for long duration autonomy (consult models in which it is included). LED battery level lights.
Collection jar with overflow safety valve in polycarbonate or polysulfone of 1 L (useful capacity 0.75 L) PC1/PSU1 or 1.75 L (useful capacity 1.30 L) -PC2/PSU2.
Also available with holders compatible with the main disposable canister
Hydrophobic bacteria filter, made of PTFE. With an efficiency of 99% in the retention of particles and bacteria of 99.99%. With PVC suction tube.
ON/OFF swith with moisture protection.
Equipment dimensions: 385 x 155 x 255 mm.

Technical Specifications:

Power supply	Flow rate	Maximum vacuum
V7 ac	220 V_aC 250 W	20 L/min	80 kPa 600 mmHg
V7 dc	12 V_DC 18 W	14 L/min	75 kPa 562 mmHg
V7 plus ac	220 V_AC 120 W	30 L/min	84 kPa 630 mmHg
V7 plus dc	12 V_DC 85 W	30 L/min	84 kPa 630 mmHg
V7 plus b	12 V_DC 85 W Battery	30 L/min	84 kPa 630 mmHg
V7 plus b emergency	12 V_DC 85 W Battery	30 L/min	84 kPa 630 mmHg
V7 mx	110/240 V_ac 12 V_DC 160 W (AC) / 84 W (DC) Battery	30 L/min	84 kPa 630 mmHg

Click Here To Download Catalogue

The new Spirobank II Advanced from MIR is a user-friendly, intuitively operable mobile spirometer that has enough storage space to record up to 10,000 tests and enables immediate diagnosis thanks to the traffic light display. The real-time spirometry curve allows the results to be evaluated directly on the device.

MIR Spirobank II Advance Specifications

Bluetooth 2.1.
Portable spirometer with high resolution display.
Quick and intuitive to use thanks to function keys with symbols.
User-friendly technology.
Backlighting enables use in emergency medicine.
With traffic light display.
Spirometry analysis also possible directly on the display.
Storage space for up to 10,000 spirometry exams.
With integrated, powerful battery (approx. 40 operating hours).
USB connection for data transfer.
Estimated lung age (ELA).
With motivational images for children.
Optionally available with reusable or disposable turbines.
Includes WinspiroPRO software.
LCD display with backlight, resolution: 160 x 18.
3.7 V lithium battery, rechargeable.
Temperature sensor: semiconducting (0 – 45 ° C).
Flow sensor: bi-directional digital turbine.
Capacity: 10 liters.
Dimensions: 16.0 x 5.5 x 2.5 cm.

Click Here To Download Catalogue

The spirobank II Smart Spirometer with user-friendly technology and Backlit, high-resolution display. On screen results and curves preview for immediate data analysis. The new standard for portable spirometry for iPad and PC windows users. Features PRE and POST Bronchodilator comparison. Spirometry test interpretation, Temperature sensor for BTPS conversion. Memory up to 10,000 spirometry tests. The Spirobank II Smart spirometer can be connected to the PC via USB using WinspiroPRO PC Software

Click Here To Download Catalogue

The flexible Naso-Pharyngo-Laryngoscope is manufactured in Germany to the highest of standards. It is highly suitable for both adult and paediatric use. The high resolution, crystal clear optics ensure sharp image quality. The flexible tip can be moved 150° using the scope’s mechanism. Technical Specifications

Total length

530 mm

Working length

300 mm

Flexible part diameter

3.4 mm or 2.8 mm

Angle deflection

up 150°, down 150°

Angle of vision

70°

Depth of focus

5-50 mm

The Spirobank II Spirometer basic is an affordable way for you to offer screening spirometry for a great price to your practice. You can use this spirometer remotely, or you can use it as an online spirometer with your PC. It works quickly and intuitively with an icon-based navigation menu and features a high-resolution backlit LCD. This is an excellent spirometer for use in primary care, pediatrics, pulmonologists, and Hospitals.

Spirobank II Basic Features:

Fast and intuitive to operate with an icon-based navigation menu
Backlit, high-resolution display
On screen results and curves preview for immediate data analysis
Ideal for family doctors, primary care, occupational medicine, screening.
Estimated Lung Age (ELA) test to assess the benefits from smoking cessation
Traffic lights for immediate test interpretation
Rechargeable, long-life battery (~ 40 hours continous operation)
Real-time tests via USB (Bluetooth optional)
Memory up to 10,000 tests
The tests are analyzed directly on the display without having to connect to a computer.
Internal temperature and pressure sensor for automatic correction
Never requires calibration when using disposable turbines
