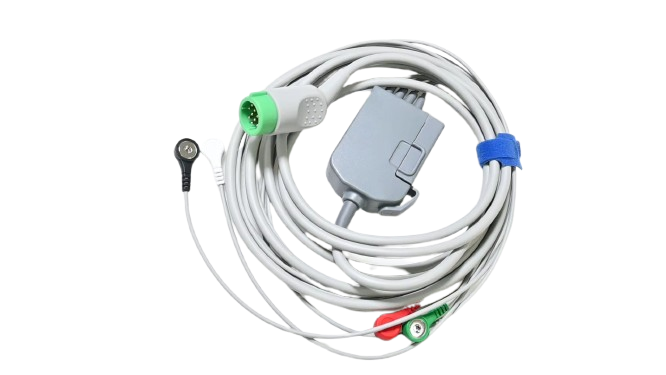

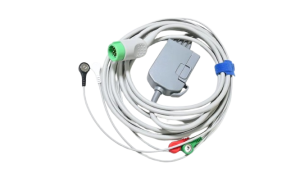

ECG Cable Compatible for Medtronic Physio-control

Brands: Redy-Med

~~$0.00~~

Shipped From Abroad

This ECG cable is fully compatible with Medtronic Physio-Control monitors, ensuring precise and reliable cardiac signal transmission. Designed for durability and flexibility, it supports 3, 5, or 10-lead configurations with snap connectors. Ideal for emergency and clinical use, it delivers consistent performance and patient safety in demanding environments.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Brands:: Redy-Med

Description
Reviews (0)

Description

Key Features:

Compatible with Medtronic Physio-Control LIFEPAK series
Available in 3-lead, 5-lead, or 10-lead versions
Snap-style electrode connectors
High-quality TPU cable jacket for flexibility
Clear AHA or IEC color coding
Shielded cable for accurate signal capture
Plug-and-play with Physio-Control monitors
CE and ISO 13485 certified

Technical Specifications

Specification	Details
Compatibility	Medtronic Physio-Control LIFEPAK series (e.g., LIFEPAK 12, 15, 20, etc.)
Lead Configurations	3-lead, 5-lead, or 10-lead
Electrode Connector	Snap (standard); grabber/clip optional
Cable Type	Direct-connect or trunk + leadwire set
Color Coding	AHA or IEC standard
Connector to Monitor	Quick-connect round or rectangular plug (varies by model)
Cable Length	Trunk: 2.5–3.0 meters; Leads: 0.9–1.2 meters
Cable Jacket Material	Thermoplastic Polyurethane (TPU)
Conductor Material	Copper alloy with shielding
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Humidity Range	15% to 95% non-condensing
Certifications	CE, ISO 13485, RoHS compliant
Sterilization	Not sterilizable; clean with disinfectant wipe
Durability	>1000 insertions/uses under normal conditions
Packaging	Individually packed; sterile optional
