Electric Pneumatic Tourniquet
$0.00
Shipped from Abroad

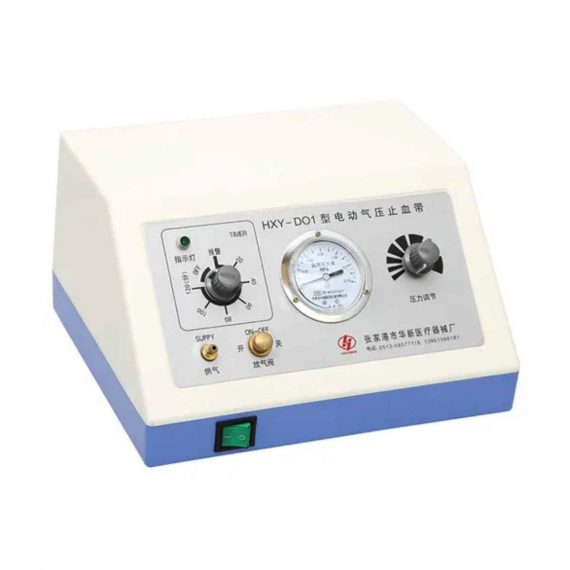

HXY-D01 Electrical manometer shows pneumatic tourniquet using dial display or microcomputer control digital display, the pressure and the time at work is clear, in case of sudden power failure, it keeps the pressure in 2 hours, with pressure leakage automatic compensation function can be set to a constant pressure working value.
Delivery & Availability:
Typically 5-7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Description
HXY-D01 Electrical manometer shows pneumatic tourniquet using dial display or microcomputer control digital display, the pressure and the time at work is clear, in case of sudden power failure, it keeps the pressure in 2 hours, with pressure leakage automatic compensation function can be set to a constant pressure working value. The working pressure greater than the set pressure of 3kpa(22mmHg), automatic pressure relief to the pressure range, pressure setting in 100kpa(750mmHg) adjusted operation to increase or decrease the pressure value at any time. Slow phase deflation was adopted after the operation, it can prevent cardiovascular and cerebrovascular patients with sudden ischemia. Automatic memory of the last operation parameters for the next operation, or as a basic parameter, saves time. When the working pressure exceeds the range, it has audibled and light alarm prompt and operative time remaining 10 minute,5 minute,1-minute alarm. Standard tourniquet cuff with cotton fabric does not hurt the skin, high strength TPU liner is durable. At the same time, high temperature and high-pressure silicone liner of tourniquet cuff can be optional. The pressure sensor is used to control accuracy.
| Configuration | Features | Specification | Packing |
| 1.tourniquet：1 set 2.tourniquet cuff：1 set（small, middle, big） 3.power cable：1 piece 4.fuse：FT1A glassfuse×2, ø5×20, ZH237 5.seal ring：2 pieces 6.operating manual：1 7.certificate of qualification：1 |
Easy operation and setting Eco-friendly Customized brand available Accurate Dial display pressure Pressure range 0-100kpa Low noise imported components |
Machine shell: ABS Initial inflation time: ≤50 seconds Noise: ≤60dB Power waste: ≤25W Voltage:220V/50HZ Pressure range:0-0.1Mpa Time range:0-120min Pressure control accuracy: ±3kpa Relative temperature of working environmernt:4~40℃ Working environment relative humidity: ≤80% Size:30*24*17cm |
Covered with PE film and packed in carton delivered with wooden case. Size: 43*24*32CM Net/Gross weight:4/5kg |
Quick Comparison
| Electric Pneumatic Tourniquet remove | Sonoscape E2 Ultrasound Machine remove | Sonoscape P15 Ultrasound Machine With Four Probes remove | Sonoscape S22 Ultrasound Machine remove | Sonoscape E1 Ultrasound Machine With Two Probes remove | Sonoscape S11 Ultrasound Machine remove | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name | Electric Pneumatic Tourniquet remove | Sonoscape E2 Ultrasound Machine remove | Sonoscape P15 Ultrasound Machine With Four Probes remove | Sonoscape S22 Ultrasound Machine remove | Sonoscape E1 Ultrasound Machine With Two Probes remove | Sonoscape S11 Ultrasound Machine remove | ||||||||
| Image |  |  |  |  |  |  | ||||||||
| SKU | SF1033560084-286 | SF1033560012-17 | SF1033560012-8 | SF1033560012-3 | SF1033560012-20 | SF1033560012-1 | ||||||||
| Rating | ||||||||||||||
| Price |
|
|
|
|
|
| ||||||||
| Stock | ||||||||||||||
| Availability | ||||||||||||||
| Add to cart | ||||||||||||||
| Description | Shipped from Abroad HXY-D01 Electrical manometer shows pneumatic tourniquet using dial display or microcomputer control digital display, the pressure and the time at work is clear, in case of sudden power failure, it keeps the pressure in 2 hours, with pressure leakage automatic compensation function can be set to a constant pressure working value. Delivery & Availability: Typically 5-7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information. | Shipped from Abroad Sonoscape E2 portable ultrasound machine is a color Doppler ultrasound system that reaches beyond your expectations due to its compact and fashionable appearance. It fulfills GI, OB/GYN, Cardiac and POC applications to fit your routine scanning needs while its color mode will help you for more accurate and efficient diagnosis of lesions. E2 provides a wide range of applications to assist users with routine scanning. E2 provides automatic calculations to enhance your diagnostic confidence and save you time for patient communication. Delivery & Availability: Typically 14 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information. | In Stock A feature-rich system inheriting the Wi-Sono high-end platform, the P15 uses an array of advanced tools to help enhance the image quality. It's a cost-effective, simplified console with an intuitive user interface and multiple intelligent functions. Delivery & Availability: Typically 2 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information. | Shipped from Abroad As SonoScape steps forward to add value and efficiency to ultrasound, the latest S22 was designed in a user-friendly platform to address current and future demanding needs. It represents an excellent mix in performance and price. Delivery & Availability: Typically 5-7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information. | Shipped from Abroad SonoScape has developed a new probe and function for the E1 Exp. With these additions the E1 Exp will bring users a more efficient examination experience with satisfying image quality and a smooth workflow. Delivery & Availability: Typically 5-7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information. | In Stock A Value Choice beyond Your Expectation. SonoScape’s trolley color Doppler system S11 redefines price and performance with practical design. The S11 will go beyond your expectations but not your budget. Delivery & Availability: Typically 2 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information. | ||||||||
| Content | HXY-D01 Electrical manometer shows pneumatic tourniquet using dial display or microcomputer control digital display, the pressure and the time at work is clear, in case of sudden power failure, it keeps the pressure in 2 hours, with pressure leakage automatic compensation function can be set to a constant pressure working value. The working pressure greater than the set pressure of 3kpa(22mmHg), automatic pressure relief to the pressure range, pressure setting in 100kpa(750mmHg) adjusted operation to increase or decrease the pressure value at any time. Slow phase deflation was adopted after the operation, it can prevent cardiovascular and cerebrovascular patients with sudden ischemia. Automatic memory of the last operation parameters for the next operation, or as a basic parameter, saves time. When the working pressure exceeds the range, it has audibled and light alarm prompt and operative time remaining 10 minute,5 minute,1-minute alarm. Standard tourniquet cuff with cotton fabric does not hurt the skin, high strength TPU liner is durable. At the same time, high temperature and high-pressure silicone liner of tourniquet cuff can be optional. The pressure sensor is used to control accuracy.
| SONOSCAPE E2 DETAILS
Auto Image Optimization
A portable ultrasound machine with the press of a button, the image is automatically adjusted and optimized, saving you time with parameter adjustments. Additionally, with Auto Focus on, the focus area follows the depth of the ROI box as it is moved in the scanning field, providing users with excellent image quality in the desired area of interest.
Automated Calculation
Auto IMT is used when determining the level of vascular sclerosis present in the patient by automatically tracing the thickness of the carotid vessels.
Auto trace provides users sensitive and accurate wave tracing, avoiding the error of manual trace and giving out calculation result in no time
In-Build Battery pack
This portable ultrasound machine was equipped with an in-build battery pack which enable the user to perform image scanning when AC power is not available.
Click Here To Download Catalogue | DETAILS
Super Wide-bandwidth Platform
Inheriting Wi-sono's ultra-wide system platform and with the advanced probe technology, high-resolution and deep penetration images are provided for precision medicine.
Spatial Compound Imaging
Spatial Compound Imaging utilizes several lines of sight for optimal contrast resolution, speckle reduction and border detection, with which P15 is ideal for superficial and abdominal imaging with better clarity and improved continuity of structures.
μ-Scan+
The new generation μ-Scan imaging technology gives you better image quality by reducing noise, improving signal strength and improving visualization.
Dynamic Color
Dynamic color improves upon already existing color Doppler technologies for a clearer capture of color flow and detailed visualization of even tiny veins with lower velocities.
Real-time Panoramic
With real-time panoramic, you can acquire an extended field of view for large organs or long vessels for easy measurement and diagnostic efficiency. Accomplished in real-time for the convenience of the sonographers, any mistake can also be easily back tracked and corrected without interrupting the scan.
3D/4D
Outstanding volume performance with speed and convenience makes P15 outshine others on volume imaging.
Tissue Doppler Imaging
Tissue Doppler Imaging allows clinical doctors to quantitatively evaluate local myocardial movements and functions, facilitating them with the ability to analyze and compare the motions of the different parts of the patient's heart.
Auto IMT
Quick measurement of intra-media vessel thickness ensures good reproducibility and high diagnostic efficiency.
Click Here To Download Catalogue | DETAILS
As SonoScape steps forward to add value and efficiency to ultrasound, the latest S22 was designed in a user-friendly platform to address current and future demanding needs. It represents an excellent mix in performance and price.
S22, is a shared service ultrasound system with a slim and elegant package that has combined mobility with utility to fit in specific clinical situations including emergency department, ICU, operating room and so on. Furthermore, its ergonomic design, easy operating and flexible data management will give you a memorable experience.
SPECIFICATION
• Large high-resolution widescreen LED
• Sensitive touch screen
• Four transducer sockets plus one socket for pencil probe
• A comprehensive selection of probes: linear, Convex, Micro-convex, Volumetric, Endocavity, Bi-plane, Phased Array, TEE, Intraoperative, Pencil
• Premium application technology: 4D, μ-scan speckle reduction, compound imaging, Pulse Inversion Harmonic Imaging, Color M-Mode, Steer M-Mode, PDI, TDI, Real-time Panoramic Imaging, Trapezoid Imaging, Auto-IMT…
• Full patient database and image management solutions: DICOM 3.0, AVI/JPG, USB 2.0, HDD, DVD, PDF report
• Multi-Language Input Keyboard
• Built-in battery
Click Here To Download Catalogue | DETAILS
Efficient Diagnosis
μ-Scan, Speckle Reduction & Edge Enhancement
Spatial Compound Imaging
PIH - Pure Inversion Harmonic
Wide Scan - Enlarged Image Area
Tissue-Specific Imaging
SR Flow
Ergonomic Designs
Up to 2 Transducer Ports
Light Weight and Compact
15.6 inch Anti-flickering HD LED Screen
Tilting Monitor Angle Adjustment
Backlit Keyboard and Intelligent Panel
Long-lasting Battery for 90 mins
Ease of Use
Quick Boot Up
Auto-Brightness Adjustment
Auto Image Optimization
Auto IMT
Auto Trace
Equipped Accessories
Wi-Fi and Bluetooth Available
DICOM
500GB Hard Disk
Height Adjustable Trolley
Durable, Carry-on Site Suitcase
Click Here To Download Catalogue | DETAILS
SonoScape’s trolley colour Doppler system S11 redefines price and performance with practical design. The S11 will go beyond your expectations but not your budget. As an easy-to-use ultrasound system, the S11 is integrated with a new software platform, especially optimized for a smooth workflow and convenient operation. The system speeds up the exam process and makes file management easier.
SPECIFICATION
- 15-inch high definition LCD monitor with articulating arm
- Compact and agile trolley design
- 3 active transducer sockets available for a wide range of applications
- Duplex, Color Doppler, DPI, PW Doppler, tissue harmonic imaging, μ-scan speckle reduction imaging, compound imaging, trapezoidal imaging
- Customized settings based on your own working style
- Full patient database and image management solutions
Click Here To Download Catalogue | ||||||||
| Weight | N/A | N/A | N/A | N/A | N/A | N/A | ||||||||
| Dimensions | N/A | N/A | N/A | N/A | N/A | N/A | ||||||||
| Additional information |
