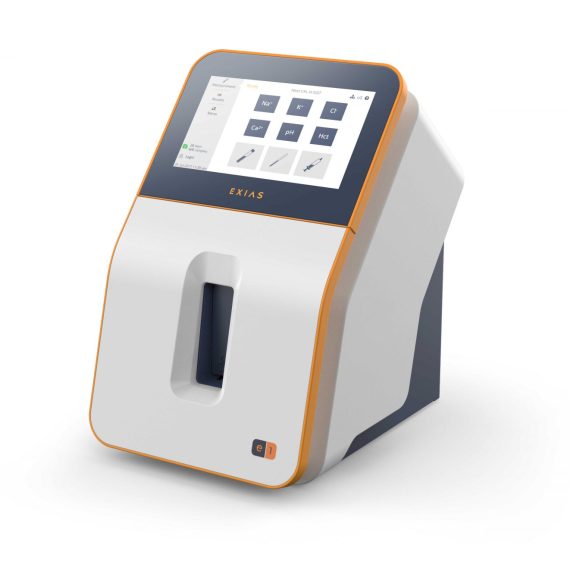

Electrolyte Analyzer e|1

The EXIAS e|1 Analyzer is an electrolyte system intended for in-vitro measurements of Na⁺, K⁺, Cl^-, Ca²⁺ as well as pH and Hct, in whole blood, serum, plasma and urine (undiluted).

OPERATIONAL CHARACTERISTICS

• Made of high quality PP material with good transparency.
• Applied for Gilson/Finland/Eppendorf Pipettors.
• Carefully inspect of raw material and manufactured under strict process check, all tips are with excellent accuracy and precison.
• Special siliconizing on the inner surface ensure no liquid adhesion and accurate sample transfer.
• Standard tips and filter tips can be autoclaved, high temperature sterilization acceptable.

Click Here To Download Catalogue

• Rotor capacity: 12 x 1.5/2.0 mL vessels, 2 x PCR strip
• Max. speed: 14,100 x g (14,500 rpm)
• Extremely compact footprint — measures 9”W x 4.”H x 9ó”D!
• Aluminum rotor accommodates twelve 1.5- or 2.0-mL tubes (maximum diameter of 11 mm)
• Rotor can be autoclaved at 121°C for 20 minutes
• Minimal sample heat transfer — maximum of 12°C after 20 minutes at max speed
• Eliminate costly repairs with the low maintenance drive
• Soft-touch lid closure for ergonomic lid locking — and releases automatically at the end of a run

Click Here To Download Catalogue

• Speed: 11,800rpm with 24- place rotor
• RCF: 14,000g with 24-place rotor
• Acceleration: 0-11,800rpm in 60 seconds, with 24-place rotor
• Brake: Automatic
• Noise: 62dB running with 24-place rotor
• Motor: High precision AC/DC series wound motor, brush gear, computer wound coil winding, balance armature and high speed bearings.
• Timer: 0-15 minute timer, graduated in 1 minute increments. Automatic switch at zero
• Weight: 5.1Kg net (without rotor)
• Dimensions: 23.5cm height x 27cm diameter, footprint 16cm diameter
• Construction: Aluminium casing with a steel lid
• Finish: Body cream white baked enamel, with matt black baked enamel lid

Click Here To Download Catalogue

• Ease of use in application and maintenance
• Designed with sample and reagent ID-barcode reading, in-tip dilution reducing consumable costs
• Intuitive and highly flexible open software with complete data reduction and LIS interfaces
• Integrated PC and touchscreen eliminates the need for an external workstation
• Smart time-management allows processing up to 3 microplates simultaneously

• Photometric range: 0 to 3.0 OD
• Spectral range: 400 nm to 700 nm (up to 8 filters)
• Read time: < 15 sec single, < 30 sec dual
• Precision: 1% CV at 1.0 OD
• Accuracy: ±0.005 OD or 2.5 % (whichever is greater)
• Linearity: 0 to 2.000 OD ±1 %

• Min / max. volumes: 10 µl to 300 µl with 300 µl tip, 301 µl to 1000 µl with 1100 µl tip
• Precision (single dispense): < 3 % CV at 20 µl, < 3 % CV at 100 µl
• Precision (multi dispense): < 10 % CV at 16 x 20 µl, < 3 % CV at 8 x 100 µl
• Features: Pipetting pressure monitoring, capacitive liquid level detection, tip detection, mixing, multiple dilution steps, archiving

• Sample and reagent capacity: Up to 192 samples (Flexible: e.g. 144 samples + 8 reagents + 16 controls)

• Temperature range: Up to 45 °C
• Temperature uniformity: ±1.5 °C (with in-process temperature uniformity monitoring)
• Shaking: 20 Hz

• Precision: 10% CV at 300 µl
• Residual volume: <2.5 µl in U-bottom (mean), <4 µl in flat bottom (mean)
• Wash buffer capacity: 3 wash buffers
• Modes: Sweep mode, soak, top and bottom wash, variable pump speed

• Width x Depth x Height: 125 cm x 65 cm (without waste bag) x 75 cm with closed cover (49” x 26” x 30”)

Click Here To Download Catalogue
