Full HD Endoscopy Camera

Key Features

• 1/2.8″ Sony CMOS Full HD image sensor

• Full HD resolution (1920 × 1080) imaging

• Integrated LED cold light source and camera system

• Built-in USB storage for photos and video recording

• IPX8 waterproof camera head for medical sterilization

• Touch-button interface for easy operation and cleaning

• Progressive scanning for smoother video output

• White balance, zoom, freeze, and image capture functions

• Compatible with multiple rigid and flexible endoscopes

• Supports high-definition video output connections

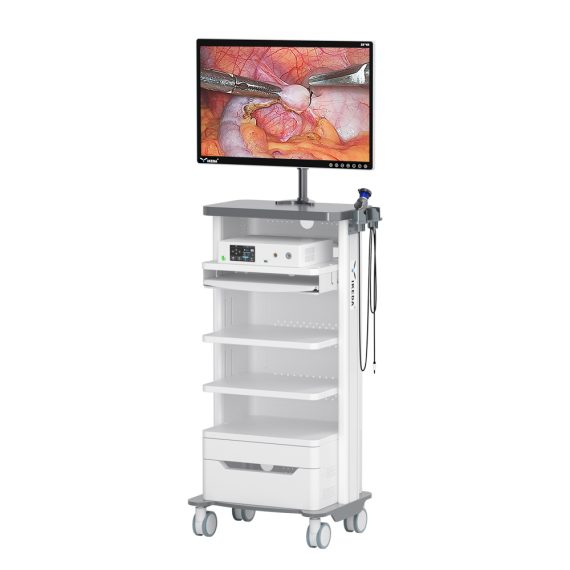

Full HD Endoscope System

• Camera Control Unit-YKD-9001E-T
• Camera Head -IPX8 waterproof grade
• 4K Monitor
• Medical trolley -YKD-2101

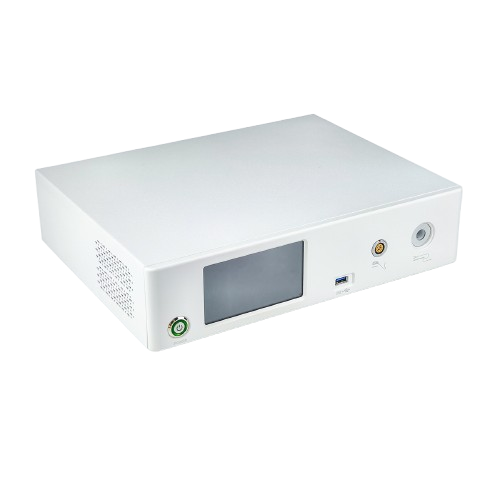

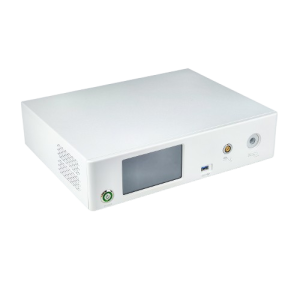

YKD-9001E-T Full HD Endoscope Camera

• FULL HD Image Sensor
• FHD camera head and LED cold light source integrated
• Built-in USB FULL HD image storage,  Integrated photo/video recording system
• Touch button, easy to clean

FHD Camera

• FHD IPX-8 waterproof grade
• User-Definable: Photo Capture/Video Recording/Zoom in/Zoom Out/White Balance

4K Monitor

• 3840x2160 ultra-high-definition image output, showing richer textures and more accurate tissue identification
• 3840x2160 pixel image output, showing richer texture, more accurate tissue identification
• Wider color gamut truly restores the color of organs and tissues, and locates blood vessels, lymph nodes, and nerves faster
• CE/ROHS/FCC certified

Sony CMOS

•  Better Dynamic Range: with almost +17dB difference due to pixel well depth.
• Higher Quantum Efficiency (QE) and Lower Dark Noise contribute to better image fidelity.
• Higher Frame Rate: CMOS sensors offer faster shutter speeds, reducing image blur.
• Affordability: Despite their high performance, CMOS sensors don’t break the bank. This allows IKEDA to deliver stellar image clarity without inflating costs.

Specifications

• Epidural needle 16G,
• Epidural catheter,
• Epidural filter 0.2 um,
• Catheter connector,
• LOR syringe

• Compact, Portable, design for emergence transport;
• Convenient to set Ventilation mode and parameters;
• Airway press wave and multi-parameter monitoring, view patient’s status clearly;
• Power supply: AC, DC from ambulance, Battery;
• Multi-function hang-stand, convenient for ambulance and transfer beds.

Click Here To Download Catalogue

• Ventilation mode: VCV, PCV, PSV, SIMV(VCV)+PSV, SIMV(PCV)+PSV, MMV, CPAP, Backup apnea.

• Maximum safety pressure of air circuit: no more than 6kpa.
• Inspiratory oxygen concentration: 21-100%.

Ventilation Performance:

• Respiratory rate (f): 4-99 times / min,
• Inspiratory time (Ti): 0.2-6 s,
• Breath holding time (Tp): 0-2s,
• Triggering pressure (Pt): inspiratory triggering pressure is - 2kpa-0kpa,
• Tidal volume (Vt): 0-2000ml;
• Maximum minute ventilation volume: not less than 18 L / min.
• PSV：0～5 kPa,
• Peep Pressure: 0-3kpa,
• Inspiratory flow rate: 0-80 L / min.
• SIMV frequency: 6-60 times / min,
• Inspiratory pressure: 0-6kpa,

Alarm Performance:

• Pressure High Limit (Ph) alarm: 2 ~ 6kpa, audible and visual alarm.
• Pressure Low Limit (Pl) alarm: 0～2KPa, audible and visual alarm.
• Minute ventilation High Limit (Mvh) alarm: audible and visual alarm when ventilation exceeds the set value.
• Minute ventilator Low limit (Mvl) alarm: audible and visual alarm when ventilation is lower than the set value.
• Power off alarm: Power off alarm immediately, and the alarm duration shall not be less than 120s.
• Mute: no more than 2 minutes.

Monitoring Performance:

• 12.1 inch color LCD
• Tidal volume (VT): 0 ～ 2000ml
• Measured total frequency (Ftot), Spont. frequency (Fspont)
• Minute ventilation (Mv).
• I: E ratio.
• Airway pressure (PAW).
• Peak pressure (Ppeak)
• Peep pressure: 0.1 ~ 2KPa
• Pressure-Time and Flow-Time waveform
