FULL HD Medical Endoscopic Camera System
$0.00
Shipped From China
The YKD-9001E Full HD Endoscope Camera System provides clear surgical imaging with a Sony CMOS sensor and integrated LED cold light source. Designed for minimally invasive procedures, it supports USB recording, waterproof camera operation, and high-definition video output for accurate clinical visualization.
Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Description
The YKD-9001E Full HD Endoscope Camera System is designed to deliver reliable, high-quality imaging for a wide range of endoscopic procedures. Equipped with a 1/2.8-inch Sony CMOS sensor, the system produces sharp Full HD images with excellent color reproduction. It integrates an 80W LED cold light source and camera in a compact design to save space and simplify operation. The system supports USB photo and video recording, multiple video outputs, and an IPX8 waterproof camera head, making it suitable for hospitals, surgical centers, and specialized clinics.
Key Features
-
1/2.8-inch Sony CMOS Full HD image sensor
-
Full HD resolution (1920 × 1080) imaging
-
Built-in 80W LED cold light source
-
Integrated photo capture and video recording
-
USB storage for images and videos
-
IPX8 waterproof camera head for sterilization safety
-
Multiple video outputs (HDMI, DVI, CVBS)
-
White balance, freeze, zoom-in, and zoom-out functions
-
Progressive scanning for smoother imaging
-
Compatible with rigid and flexible endoscopes

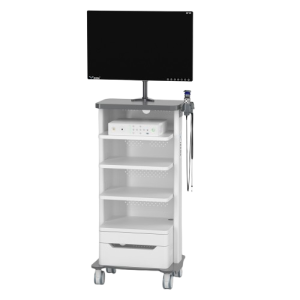

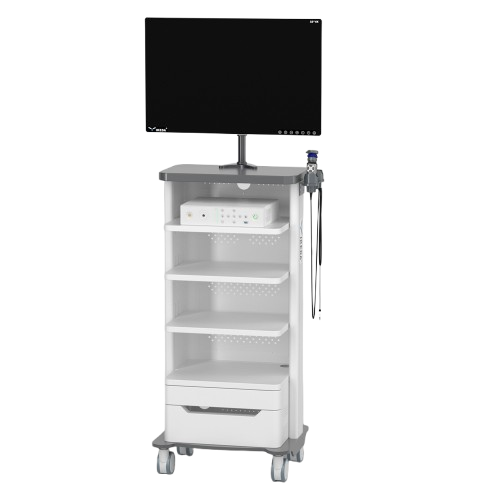

Medical Endoscopic Camera System
- Camera Control Unit-YKD-9001E
- Camera Head -IPX8 waterproof grade
- 4K Monitor
- Medical trolley -YKD-2101

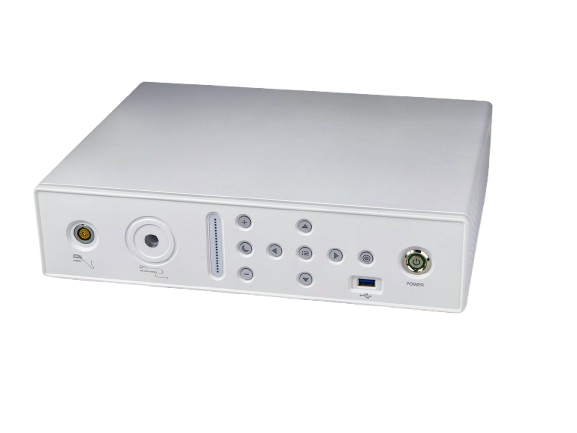

YKD-9001E Medical Endoscopic Camera
- FULL HD Image Sensor
- FHD camera head and LED cold light source integrated
- Built-in USB FULL HD image storage, Integrated photo/video recording system

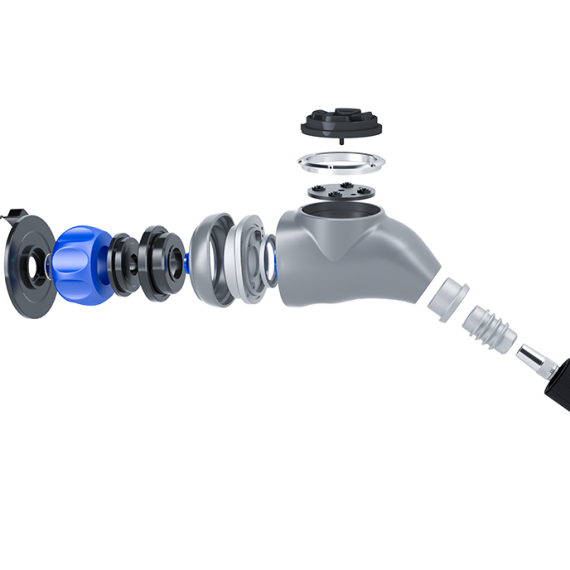

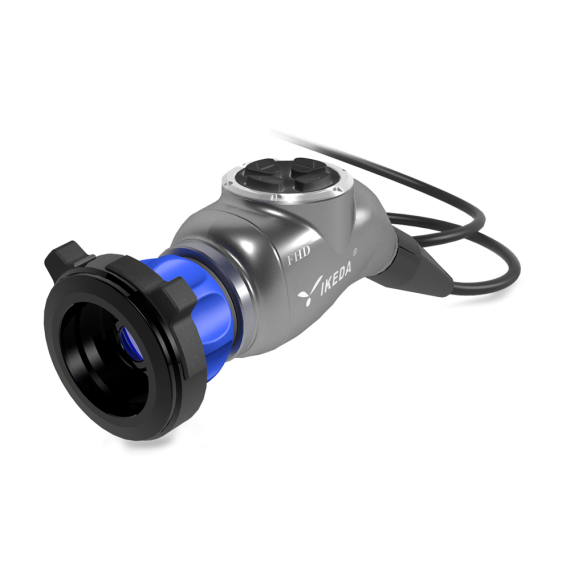

FHD Camera
- FHD IPX-8 waterproof grade
- User-Definable: Photo Capture/Video Recording/Zoom in/Zoom Out/White Balance
4K Monitor
- 3840×2160 ultra-high-definition image output, showing richer textures and more accurate tissue identification
- 3840×2160 pixel image output, showing richer texture, more accurate tissue identification
- Wider color gamut truly restores the color of organs and tissues, and locates blood vessels, lymph nodes, and nerves faster
- CE/ROHS/FCC certified
Sony CMOS
- Better Dynamic Range: with almost +17dB difference due to pixel well depth.
- Higher Quantum Efficiency (QE) and Lower Dark Noise contribute to better image fidelity.
- Higher Frame Rate: CMOS sensors have better shutter speeds, resulting in less image blur.
- Affordability: Despite their high performance, CMOS sensors don’t break the bank. This allows IKEDA to deliver stellar image clarity without inflating costs.
Specifications
| Camera head | · Full HD imaging (1920 x 1080) |
| · 1/2.8″ SONY CMOS | |
| · IPX8 waterproof | |
| · Full HD optical coupler C-mount standard | |
| Voltage range (current consumption) | ·100-240 V(50 VA) |
| Frequency | · 50-60 Hz |
| Device protection | · 2x T3,15 A |
| Video system | · Image resolution: FHD 1920 x 1080 |
| · Horizontal resolution: ≥1200 TVL | |
| · SNR: 60DB,Tolerance 20% | |
| · Scanning system: Progressive Scanning | |
| · White balance automatically | |
| Light source | · Built-in 80W LED cold light source |
| Recording (Options) | · Image format: JPG 1920 x 1080 |
| · Video format: Full HD 1920 x 1080; | |
| Mpeg-4 (H.264 Codec); Image rate 60fps | |
| · Connection: USB | |
| Connections | Video out terminal: |
| · 1x DVI | |
| · 1x HDMI | |
| · 1x CVBS | |
| Protection class (acc.to IEC 60601-1) | ·I |
| Safety Class | BF |
| Standard | IEC 60601-1-2 |
| Features | · White balance |
| · Freeze function | |
| · Zoom in/Zoom out | |
| · Touch Buttons | |
| · USB storage | |
| · Photo capture/Video recording | |
| Language | · Chinese/English/Japanese/Korean/Spanish/German/Russian |
