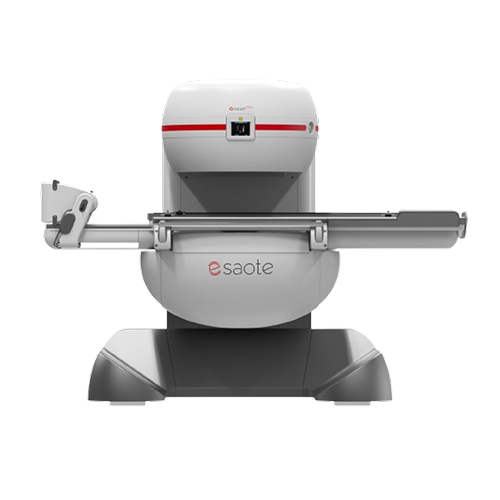

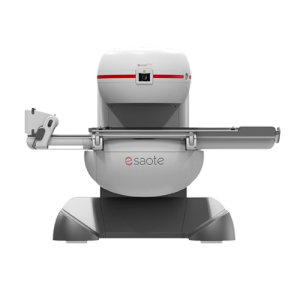

G-scan Open

Brands: Esaote

~~$0.00~~

Shipped From Abroad

The new open upright MRI system for spine and joints

Enhance the diagnostic precision with a distinctive and tailored approach with G-scan Open, leading to meaningful impacts on individuals’ well-being. The adaptable and open design revolutionizes the scanning process for patients since numerous symptoms and conditions, related especially to the spine and joints, manifest more clearly when the patient is in a weight-bearing position. G-scan Open is a revolutionary MRI approach for elevating assurance in surgical planning and spinal diagnosis.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Brands:: Esaote

Description
Reviews (0)

Description

The key to confidence

23m²ONE-ROOM MRI SYSTEM

Minimum space of installation, plug-and-play system.

12 x DEDICATED MULTI-PURPOSE COILS

Designed for the spine and joints.

2x DEDICATED SEQUENCES

Possibility to combine weight-bearing exam with dynamic imaging.

<3 kW SUSTAINABLE MRI

Low power consumption.

LAW OF GRAVITY

Adds weight to your diagnosis

Traditional MRI scans may not reveal pathologies associated with specific symptoms, but G-scan Open provides a fresh perspective, enabling accurate diagnosis of musculoskeletal (MSK) pathologies occurring under weight-bearing conditions. Utilizing G-scan Open offers a comprehensive insight into the examined spine and joints. Gravity-induced biomechanical alterations in human anatomy mean that MRI imaging in a natural standing position unveils additional details typically unseen.

Imaging & Visualization

The unique feature of the G-scan Open is its ability to scan patients in a variety of positions, which can reveal pathologies that are not apparent in a traditional supine (lying down) position.

Weight-Bearing (Upright) Imaging: The system’s adaptable, open design allows patients to be scanned in a natural standing (weight-bearing) position. This is crucial because symptoms and conditions related to the spine and joints often manifest more clearly when gravity-induced biomechanical alterations are present. * Dynamic Imaging: The system allows for the combination of weight-bearing exams with dynamic imaging, providing a more comprehensive insight into the examined anatomy.
Open Design: The open magnet design ensures a non-claustrophobic experience for patients and is significantly quieter, making it a valuable option for pediatric patients.
Efficiency and Sustainability: This is a one-room MRI system with a minimal installation space (approximately 23 m²) and is a sustainable choice due to its low power consumption (<3 kW).

Clinical Applications

The G-scan Open is specifically built to increase diagnostic accuracy and confidence for conditions affected by gravity.

Musculoskeletal (MSK): It is an optimal system for all MSK applications, including the investigation of joint ligaments (especially in the hip and ankle) and various spine and knee pathologies.
Spine and Joints: It is the primary tool for diagnosing symptoms and conditions in the spine and joints that are induced or exacerbated by gravity, such as certain spinal instability or disc issues.
Surgical Planning: The unique perspective from weight-bearing images elevates assurance in surgical planning and spinal diagnosis.

Coils (Probe Types)

The system is supported by 12 dedicated multi-purpose coils designed specifically for the spine and joints.

Anatomical Area	Specific Coil Types
Spine	Cervical spine coil (Linear & Large DPA), Lumbar spine coils (4-channels, medium & large sizes), Extra-Large Lumbar Spine coil (2-channels, optional)
Joints/Extremities	Knee coil DPA, Shoulder coil DPA, Shoulder coil linear, Shoulder coil (3-channels, optional), Ankle-Foot coil DPA, Hand-Wrist coil DPA
Head/Other	4-Channel Head Coil (optional), Flex coil linear (optional), TMJ bilateral coil (2-channels, optional)

Download G-scan Open Brochure

Reviews

There are no reviews yet.

Be the first to review “ G-scan Open”

Quick Comparison

G-scan Open remove ASPEL AsCARD Grey ECG Machine remove Jade Mobile X-ray machine (Analogue) remove ASPEL Stress ECG with Ergometer and Software remove DrGem GXR-SD 400mA Floor Mounted Digital X-ray remove Sonoscape E2 Ultrasound Machine remove

Name G-scan Open remove ASPEL AsCARD Grey ECG Machine remove Jade Mobile X-ray machine (Analogue) remove ASPEL Stress ECG with Ergometer and Software remove DrGem GXR-SD 400mA Floor Mounted Digital X-ray remove Sonoscape E2 Ultrasound Machine remove


SKU SF1033560075-5 SF1033560074-2 SF1033560075-1 SF1033560074-5 SF1033560012-17

Rating

Price

~~$0.00~~

Stock

Availability

Add to cart

Description

Shipped From Abroad The new open upright MRI system for spine and joints

Enhance the diagnostic precision with a distinctive and tailored approach with G-scan Open, leading to meaningful impacts on individuals' well-being. The adaptable and open design revolutionizes the scanning process for patients since numerous symptoms and conditions, related especially to the spine and joints, manifest more clearly when the patient is in a weight-bearing position. G-scan Open is a revolutionary MRI approach for elevating assurance in surgical planning and spinal diagnosis.

Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad Electrocardiograph AsCARD Grey v.07.225 - is a 1, 3, 6, 12 channel ECG unit which enables to make electrocardiogram in full 12 leads. It is intended to conduct ECG examinations of adults and paediatric patients in all types of health care centres. ECG examination may be recorded in manual or automatic mode, with the possibility of analysis and interpretation. The device can be powered from 100 V ÷ 240 V mains supply or by an internal battery. Delivery & Availability: Typically 10 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

In Stock JADE is one of the lightest portable X-ray systems on the market, allowing it to be used in any imaginable way including bedside, operating rooms, intensive care units and in veterinary fields. With a simple, easy-to-use operator console, three-way control, two-step foldable stand and auto lock system, JADE is a user-friendly portable X-ray system. Delivery & Availability: Typically 21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad Ergometer CRG 200 is dedicated for Exercise Stress Tests System CardioTEST. The Ergometer has been designed according to modern technologies. It is controlled from PC equipped in CardioTEST software. Load level is controlled by a microprocessor, therefore it does not depend on speed, which in turn can be adjusted according to patient’s individual needs. Ergometer is equipped with ECG mode recording 12 standard leads. Delivery & Availability: Typically 21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

In Stock The GXR-SD Digital X-ray is a diagnostic digital radiography system that provides reliable high quality digital radiographic images with a reduced dose. The GXR-SD DR systems offer comprehensive digital solutions to all radiography needs, featuring ACQUIDR digital imaging system with stationary or portable digital flat-panel detectors as well as reliable high-frequency x-ray generators that are known worldwide for their excellent performance, lifetime and stability. Patient tables and wall stands are also offered. Delivery & Availability: Typically 21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad Sonoscape E2 portable ultrasound machine is a color Doppler ultrasound system that reaches beyond your expectations due to its compact and fashionable appearance. It fulfills GI, OB/GYN, Cardiac and POC applications to fit your routine scanning needs while its color mode will help you for more accurate and efficient diagnosis of lesions. E2 provides a wide range of applications to assist users with routine scanning. E2 provides automatic calculations to enhance your diagnostic confidence and save you time for patient communication. Delivery & Availability: Typically 14 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Content

The key to confidence

23m²ONE-ROOM MRI SYSTEM

Minimum space of installation, plug-and-play system.

12 x DEDICATED MULTI-PURPOSE COILS

Designed for the spine and joints.

2x DEDICATED SEQUENCES

Possibility to combine weight-bearing exam with dynamic imaging.

<3 kW SUSTAINABLE MRI

Low power consumption.

LAW OF GRAVITY

Adds weight to your diagnosis

Imaging & Visualization

The unique feature of the G-scan Open is its ability to scan patients in a variety of positions, which can reveal pathologies that are not apparent in a traditional supine (lying down) position.

Weight-Bearing (Upright) Imaging: The system's adaptable, open design allows patients to be scanned in a natural standing (weight-bearing) position. This is crucial because symptoms and conditions related to the spine and joints often manifest more clearly when gravity-induced biomechanical alterations are present. * Dynamic Imaging: The system allows for the combination of weight-bearing exams with dynamic imaging, providing a more comprehensive insight into the examined anatomy.
Open Design: The open magnet design ensures a non-claustrophobic experience for patients and is significantly quieter, making it a valuable option for pediatric patients.
Efficiency and Sustainability: This is a one-room MRI system with a minimal installation space (approximately 23 m²) and is a sustainable choice due to its low power consumption (<3 kW).

Clinical Applications

The G-scan Open is specifically built to increase diagnostic accuracy and confidence for conditions affected by gravity.

Musculoskeletal (MSK): It is an optimal system for all MSK applications, including the investigation of joint ligaments (especially in the hip and ankle) and various spine and knee pathologies.
Spine and Joints: It is the primary tool for diagnosing symptoms and conditions in the spine and joints that are induced or exacerbated by gravity, such as certain spinal instability or disc issues.
Surgical Planning: The unique perspective from weight-bearing images elevates assurance in surgical planning and spinal diagnosis.

Coils (Probe Types)

The system is supported by 12 dedicated multi-purpose coils designed specifically for the spine and joints.

Anatomical Area	Specific Coil Types
Spine	Cervical spine coil (Linear & Large DPA), Lumbar spine coils (4-channels, medium & large sizes), Extra-Large Lumbar Spine coil (2-channels, optional)
Joints/Extremities	Knee coil DPA, Shoulder coil DPA, Shoulder coil linear, Shoulder coil (3-channels, optional), Ankle-Foot coil DPA, Hand-Wrist coil DPA
Head/Other	4-Channel Head Coil (optional), Flex coil linear (optional), TMJ bilateral coil (2-channels, optional)

Download G-scan Open Brochure

Electrocardiograph AsCARD Grey v.07.225 - is a 1, 3, 6, 12 channel ECG unit which enables to make electrocardiogram in full 12 leads. It is intended to conduct ECG examinations of adults and paediatric patients in all types of health care centres. ECG examination may be recorded in manual or automatic mode, with the possibility of analysis and interpretation. The device can be powered from 100 V ÷ 240 V mains supply or by an internal battery. Technical Specification:1. Visualisation of 1, 3, 6 or 12 ECG waveforms, analysis results and interpretations, examinations stored in memory. 2. Recording of 12 standard leads. 3. Print out in 1, 3, 6 or 12 ECG waveforms mode. Printing of a selected group:

1 channel - (I, II, III, aVR, aVL, aVF, V1, V2, V3, V4, V5, V6),
3 channels in standard format - (I-II-III, aVR-aVL-aVF, V1-V2-V3, V4-V5-V6),
3 channels in Cabrera format - (aVL-I-aVR, II-aVF-III, V1-V2-V3, V4-V5-V6),
6 channels in standard format - (I-II-III-aVR-aVL-aVF, V1-V2-V3-V4-V5-V6),
6 channels in Cabrera format - (aVL-I-aVR-II-aVF-III, V1-V2-V3-V4-V5-V6),
12 channels in standard format - (I-II-III-aVR-aVL-aVF-V1-V2-V3-V4-V5-V6),
12 channels in Cabrera format - (aVL-I-aVR-II-aVF-III-V1-V2-V3-V4-V5-V6).

4. Available types of examinations: manual, AUTO, SPIRO, automatic to clipboard, AUTOMANUAL, LONG (v.07.xx5). 5. Automatic record ECG signal from all 12 leads simultaneously, with save to temporary memory function, then depending on the settings: print out examination's result, analysis, interpretation or save to database. 6. Adjustable length of automatic examination recording — interval of 6–30 seconds. 7. Reverse recording in automatic examination to clipboard and in manual examination (v.07.xx5). 8. Rhythm print out in AUTO examination and automatic examination to clipboard. 9. Definable stages of examination according to set up parameters in AUTOMANUAL examination. 10. Storing an examination in memory, 1–15 minutes in LONG mode (v.07.xx5). 11. ECG printed directly from the electrocardiograph using PCL5/6 printer. 12. Printout from database. Possibility to printout additional information about examination or patient. 13. Alpha-numerical soft-key keyboard with functional buttons. 14. Possibility to set parameters: speed, sensitive, intensity of printing. 15. Menu displayed on the screen for easy operation using touch panel. 16. Database of patients and examinations. Internal memory up to 1000 patients, 1000 examinations. 17. Viewing of the memory-stored examinations on display, with the possibility of changing the number of leads, augmentation and speed. 18. Automatic analysis and interpretation in compliance with EN 60601-2-51 (CSE database) - Analysis and interpretation dependable on age & sex of a patient. 19. Up to 130 automatic examinations in battery mode. 20. Continuous heart rate (HR) measurement and display. 21. Adapted to direct operation on an open heart. 22. Device allows to enable and disable the following filters:

power line interference filter; filters available: 50 Hz, 60 Hz,
muscle interference filter; filters available: 25 Hz, 35 Hz, 45 Hz,
contour line filters; filters available: 0.15 Hz, 0.45 Hz, 0.75 Hz, 1.5 Hz,
the low-pass filter (v.07.224, v.07.324, v.07.225, v.07.325): 75 Hz, 100 Hz, 125 Hz, 150 Hz,
the auto-adaptive filter (v.07.224, v.07.324, v.07.225, v.07.325).

23. Detection of electrode detachment, independent for each channel (INOP control). 24. Detection of cardiac stimulator. 25. Sound signalling of detected stimulations of heart stimulator. 26. Protection against defibrillation pulse. 27. ECG recordings optionally saved on PenDrive, send on email or to other AsCARD via EKG-MAIL. 28. Wireless communication with the LAN or the Internet (v.07.3xx). 29. Wired communication with the LAN or the Internet. 30. Cooperation with CardioTEKA and CardioTEL. 31. Possibility of accepting orders for examination and sending back the results in HL7 standard via Internet (v.07.3xx). 32. Possibility of conducting preliminary spirometry examinations by using SPIRO-31 attachment. 33. EMR – keep performed examinations in specified period of time on external data storage (USB memory). Accessories 1. Limb electrodes, 4 pieces (EKK type). 2. Chest electrodes, 6 pieces (EPP type). 3. KEKG 30R ECG cable. 4. Main cable. 5. R-A4 paper, 112 mm wide (1 reel). 6. ECG gel. 7. Operation manual.

Click Here To Download Catalogue

JADE Mobile X-ray machine is one of the lightest portable X-ray systems on the market, allowing it to be used in any imaginable way including bedside, operating rooms, intensive care units and veterinary fields. With a simple, easy-to-use operator console, three-way control, two-step foldable stand and auto-lock system, the JADE Mobile X-ray machine is a user-friendly portable X-ray system. Convenient & Intuitive Operation: JADE is one of the lightest portable X-ray systems on the market, allowing it to be used in any imaginable way including bedside, operating rooms, intensive care units and in veterinary fields. With a simple, easy-to-use operator console, three-way control, two-step foldable stand and auto-lock system, JADE is a user-friendly portable X-ray system. Compact & Powerful Design: JADE Mobile X-ray machine is an innovative, highly versatile portable X-ray system suitable for a variety of clinical uses. Utilizing the unique technology used in DRGEM’s universally recognized X-ray generators, JADE is a compact but powerful unit with a 4kW output and thoughtfully designed components to increase efficiency and maximize workflow. The core part of X-ray source adopts high-quality tube assembly, X-ray collimator and high frequency X-ray generator with excellent performance, lifetime and stability. Features:

Vehicle loadable
Wheel lock
Automatic tube arm lock at any angle
Storage space for cassettes or detectors
User Programmable APR, save up to 9 APR settings
Three way X-ray exposure
USB interface & Bluetooth
Remote control (Option)
5kg including X-ray unit, collimator and stand
Maximum hight of 228.6cm
Exposure Hand Switch
Foldable, two-step stand

Technical Specification:

Power Rating - 4kW,
100kHz, high frequency X-ray Generator
kVp Range - Maximum 140kVp
mAs Range - 0.1-250mAs
mA Range – 10 to 100mA
330~2000mm FD
Collimator with 30 seconds LED lamp timer

Click Here To Download Catalogue

Ergometer CRG 200 is dedicated for Exercise Stress Tests System CardioTEST. The Ergometer has been designed according to modern technologies. It is controlled from PC equipped in CardioTEST software. Load level is controlled by a microprocessor, therefore it does not depend on speed, which in turn can be adjusted according to patient’s individual needs. Ergometer is equipped with ECG mode recording 12 standard leads. Technical Specifications:

Cooperation with the CardioTEST cardiovascular exercise system and AsTER cardiac rehabilitation system,
Control using a computer through the RS-232 port,
Braking: a processor-controlled brake with torque measurement,
Load range: 25 - 1000 W,
Speed range: 20 - 150 rpm,
Load independent of the number of turns,
Built-in ECG module,
12 standard leads in diagnostic mode,
2 leads in training mode,
Sensitivity 2,5 / 5/10/20 mm / mV,
Shift 25/50/100 mm / s,
Digital filters 25 Hz, 35 Hz, 50 Hz, anti-frit filter,
Digital filter of the isoelectric line,
Measuring range HR 15-240 bpm,
Maximum patient weight 200 kg,
Power supply: 230 V, 50 Hz, 60VA,
Dimensions: (LxWxH) 1190x600x1370 mm.

CardioTEST Software:

excellent quality of ECG waveforms thanks to the use of digital filters eliminating the swimming of the isoelectric line and disruption of muscle origin,
uninterrupted recording and presentation of 12-lead ECG signal,
presentation of averaged P-QRS-T units with 12 leads along with the results of ST level and slope measurements,
automatic HR measurement, ST level and ST segment slope,
automatic control of cycloergometer and treadmill load,
archiving and printing of the research report,
automatic determination of measuring points with the possibility of manual correction,
automatic arrhythmia analysis,
presentation of parameters regarding: test phase, current load, stage time and total effort time,
monitored parameters: rhythm rate, MET, double product, blood pressure, level, ST segment slope and load,
real-time ECG printout,
preview of trends of all measured parameters during the test,
alarm system for monitored parameters and arrhythmia,
an option to automatically measure blood pressure,
archiving and printing a report enabling a reliable assessment of the study (such an report contains ECG, average P-QRS-T assemblies and a table with measurement results),
standard test protocols and the ability to define your own protocols also in RAMP mode,
preview the report on the screen before printing the report,
function of reanalysis of the performed test,
presentation of 3D trends illustrating ST segment changes.

Click Here To Download Catalogue

DrGem GXR-SD 400mA Floor Mounted Digital X-ray system matches with a radiographic room which perfectly fits your workow and can be easily upgraded to DR system with the help of DR interface and PC interface in GXR generator as well as Bucky suitable to Flat Panel Detector. GXR X-ray system is equipped with a high frequency X-ray generator which consistently produces high quality radiograph in favor of high quality X-ray output with a very small kV ripple and accurate mA and mAs. GXR X-ray system is designed to provide convenience to operator and comfort to patient Features of DrGem GXR-SD 400mA Floor Mounted Digital X-ray:

PBT-6 is a 4 way Motorized Tabletop with Elevating feature (66cm). A large tabletop with extended travel enables all radiography studies with minimal patient movement. Fully fat tabletop without a frame on the edge makes cleanliness and odors free
Automatic Stitching - GXR-SD system provides outstanding automatic stitching function with Source tilting method
Digital Flat Panel Detector (FPD) – Wireless 17X14 (Csl, 4336W) with Auto Exposure Detection (AED) function, there is no DR trigger cable between detector and generator.
Full Featured Imaging Software & Excellent Digital Image Processing:

Provides convenient user interface and easy operation
Anatomical view-based digital image processing automatically optimizes and enhances the quality of the captured image for the pictured anatomy.
Radiographic stand & automatic collimator control function
DICOM 3.0 networking interface includes Worklist, Print, Store, Query for integration with any PACS or RIS

Included – Software, HP Laptop Computer

CPU≥3.2GHz
Memory capacity：≥4GB
Hard drive capacity ：≥500 GB
Resolution: 1280 x 1024
Display size： 21 inch color LCD screen
64 bit Windows 10 operation system
Core: i5

Technical Specifications of DrGem GXR-SD 400mA Floor Mounted Digital X-ray:

Power Rating - 32KW
Generator - GXR-32S
Rotor - Dual Speed Starter(DSS)
Input Power - 400/480VAC, Three phase
Line Frequency - 50/60Hz
X-ray tube - DXT-12M, (0.6/1.2mm, 300kHU)
Tube Voltage - 40 to 150kV, 1kV Step
Tube Current – 10 to 640mA
Output - 640mA@81kV, 500mA@104kV, 400mA@130kV, 320mA@150kV
Time Range - 1ms to 10s
mAs Range - 0.1 to 800mAs
Reproducibility - Coecient of Variation : kV < 0.005, Time < 0.005,mAs < 0.01
Accuracy - kV < ±(1%+1kV), mA < ±(3%+1mA), Time <±(1%+0.5ms), mAs < ±(3%+0.1mAs)
Linearity - Coecient of Linearity < 0.01 : CL = (X1-X2)/(X1+X2), where X is mR/mAs

Click Here To Download Catalogue

SONOSCAPE E2 DETAILS Auto Image Optimization A portable ultrasound machine with the press of a button, the image is automatically adjusted and optimized, saving you time with parameter adjustments. Additionally, with Auto Focus on, the focus area follows the depth of the ROI box as it is moved in the scanning field, providing users with excellent image quality in the desired area of interest. Automated Calculation Auto IMT is used when determining the level of vascular sclerosis present in the patient by automatically tracing the thickness of the carotid vessels. Auto trace provides users sensitive and accurate wave tracing, avoiding the error of manual trace and giving out calculation result in no time In-Build Battery pack This portable ultrasound machine was equipped with an in-build battery pack which enable the user to perform image scanning when AC power is not available.

Click Here To Download Catalogue
