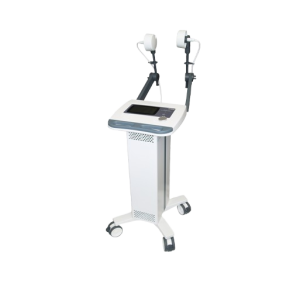

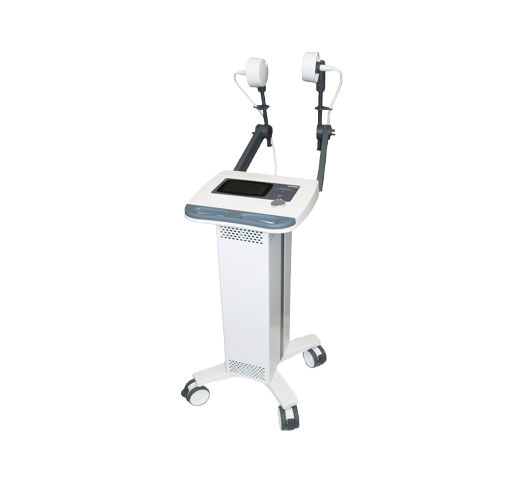

Gymna Thermo 500+

Brands: Gymna

~~$0.00~~

Shipped From Abroad

The Thermo 500+ is a professional pulsed and continuous short-wave diathermy unit designed for deep-tissue heating and athermal cellular stimulation, ideal for musculoskeletal, soft-tissue, and circulatory rehabilitation.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Brands:: Gymna

Description
Reviews (0)

Description

The Thermo 500+ is a short-wave diathermy device that generates electromagnetic energy for medical applications.

The waves penetrate deep into the body and can have thermal and athermal effects. The thermal effect consists of a heating up that considerably improves the circulation. The athermal effect generates cellular effects. Both contribute to strong physiological effects that make the method suitable for application in a wide range of conditions.

Indications:

Chronic musculoskeletal disorders
Acute soft tissue injuries
Circulatory complaints

Features

Dual-channel operation (two independent output arms) enables simultaneous treatment of two areas.
Continuous mode: deep-tissue heating effect.
Pulsed mode: pulse widths 20–400 µs, frequencies 5 – 800 Hz for athermal effects.
Automatic patient-tuning of output for safety and efficacy.
Colour touchscreen interface designed for ease of use, even with gloves; includes built-in clinical protocol guidance.
Pre-programmed indications and custom memory slots for user-defined protocols.
Trolley-mounted design for mobility within a clinic setting.
Broad mains compatibility (100-240 V AC) suitable for global use.

Specifications

Category	Specification
Dimensions (H × L × W)	94 × 47 × 47 cm
Weight	38 kg
Mains Supply	100–240 VAC, 1 kVA max, 50/60 Hz
Operating Frequency	27.12 MHz
Output Power	400 W max (Continuous Mode)<br>1000 W max (Peak Power in Pulsed Mode)
Output Modes	Continuous, Pulsed (1 in 3, 2 in 3, 3 in 3)
Applied Part Type	Type BF (EN 60601-1)
Pulse Width	20–400 µs
Pulse Frequency	5–800 pulses per second
Tuning	Automatic
Timer	0–30 minutes with output termination and end-of-treatment alarm
Device Classification	Class I

Download Brochure
