Gynecology Treatment Workstation

Brands: Optomic

~~$0.00~~

Shipped From Abroad

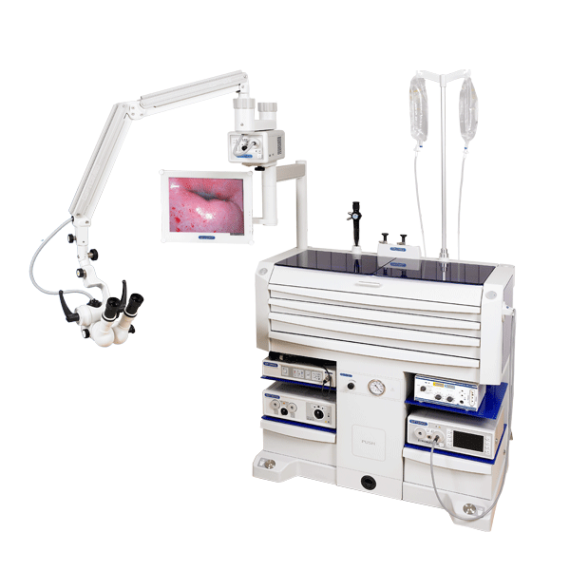

The OPTIMUS Gynecology treatment workstation only occupies 0.5 m² of floor space and altogether provides more than 3 m² of usable space, including work surfaces, drawers and shelves.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Sku:

SF1033560130134-2

Brands:: Optomic

Description
Reviews (0)

Description

Characteristics of the gynecology workstation OPTIMUS GYN

SUCTION SYSTEM	67 liters/minute, automatic start up
PRESSURE GAUGE AND REGULATOR	Gradual regulation
AUTOMATIC WASTE BIN	9 liters
AUTOMATIC WASTE BIN	1 of 79 cm x 34 cm, height 4.5 cm
6 DRAWERS	1 of 79 cm x 34 cm, height 4.5 cm 2 of 79 cm x 40 cm, height 5.5 cm 1 of 79 cm x 40 cm, height 8 cm 2 of 28 cm x 39 cm, height 12.5 cm
9 WORK SURFACES	1 slide-out tray of 79 cm x 40 cm 2 fold-up work tables of 29 cm x 33 cm 2 hinged glass tops of 37 cm x 40 cm 4 glass shelves of 34 cm x 40 cm
ENDOSCOPE HOLDERS	4 rigid and 2 flexible
GLASS COLOURS	6 colours available
MOBILE	4 wheels
WEIGHT WITHOUT ACCESSORIES	195 kg
MAXIMUM CONSUMPTION OF PERIPHERALS	1200 W
MAXIMUM TOTAL CONSUMPTION	1500 W
OPTIONAL ACCESSORIES	ENT microscope support

Accesories

Lateral or straight monitor support
Head lamp holder
Endoscopy camera head and fiber optic cable holder
Mirror heater
Endoscope heater
Internal LED lighting
Germicidal UV light system
Isolation transformer: 1500 W 230 V 50/60 Hz

Click here to download Catalogue

Reviews

There are no reviews yet.

Be the first to review “Gynecology Treatment Workstation”

Quick Comparison

Gynecology Treatment Workstation remove Render SD-H3000B+ Mobile ICU Ventilator remove Render SD-H3000A Mobile ICU Ventilator remove Bistos BT-350 Fetal Monitor remove Render SD-H3000B Mobile ICU Ventilator remove Sonoscape S8 Exp Portable Ultrasound remove

Name Gynecology Treatment Workstation remove Render SD-H3000B+ Mobile ICU Ventilator remove Render SD-H3000A Mobile ICU Ventilator remove Bistos BT-350 Fetal Monitor remove Render SD-H3000B Mobile ICU Ventilator remove Sonoscape S8 Exp Portable Ultrasound remove


SKU SF1033560130134-2 SF1033560011-23 SF1033560011-21 SF1033560059-15 SF1033560011-22 SF1033560012-15

Rating

Price

~~$0.00~~

Stock

Availability

Add to cart

Description

Shipped From Abroad

The OPTIMUS Gynecology treatment workstation only occupies 0.5 m² of floor space and altogether provides more than 3 m² of usable space, including work surfaces, drawers and shelves.

Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad

Microcomputer controlled,pneumatically driven and electronically controlled.
Pressure, volume controlled treatment ventilator.
Could be applied for pediatric and adult.
100% oxygen fast operation system, make sure to provide pure oxygen at any time.
Easy setting by navigator wheel knob & touch key
5.5" lcd display，very clearly at parameter setting area，monitoring area or alarm area.
Automatic temperature control humidifier system for operation and maintenance easier
Back-up battery
Built-in smart type air compressor

Delivery & Availability: Typically 21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad

Delivery & Availability: Typically 21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

In Stock

The BT-350 is a microprocessor-based fetal monitor, providing continuous monitoring, display and recording of fetal heart rate(FHR) and uterine contraction(UC) for antepartum testing and monitoring.

Delivery & Availability: Typically 2 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad

Pneumatically driven electric controlled、micro-computer controlled unit.
Operation control panel adopts distinct LED display, easy operation.
High quality humidifier.
Contains high quality tubes、accessories、spare parts

Delivery & Availability: Typically 21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad With ultra-modern innovative design and the clinically-proven technologies, S8 Exp is portable ultrasound scanner well equipped as a low-physical-effort and enhanced-image-quality ultrasound scanner, which not only provides optimized solutions for versatile applications, but does help to improve the user-experience for both routine and non-traditional challenges. Delivery & Availability: Typically 5-7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Content

Characteristics of the gynecology workstation OPTIMUS GYN

SUCTION SYSTEM	67 liters/minute, automatic start up
PRESSURE GAUGE AND REGULATOR	Gradual regulation
AUTOMATIC WASTE BIN	9 liters
AUTOMATIC WASTE BIN	1 of 79 cm x 34 cm, height 4.5 cm
6 DRAWERS	1 of 79 cm x 34 cm, height 4.5 cm 2 of 79 cm x 40 cm, height 5.5 cm 1 of 79 cm x 40 cm, height 8 cm 2 of 28 cm x 39 cm, height 12.5 cm
9 WORK SURFACES	1 slide-out tray of 79 cm x 40 cm 2 fold-up work tables of 29 cm x 33 cm 2 hinged glass tops of 37 cm x 40 cm 4 glass shelves of 34 cm x 40 cm
ENDOSCOPE HOLDERS	4 rigid and 2 flexible
GLASS COLOURS	6 colours available
MOBILE	4 wheels
WEIGHT WITHOUT ACCESSORIES	195 kg
MAXIMUM CONSUMPTION OF PERIPHERALS	1200 W
MAXIMUM TOTAL CONSUMPTION	1500 W
OPTIONAL ACCESSORIES	ENT microscope support

Accesories

Lateral or straight monitor support
Head lamp holder
Endoscopy camera head and fiber optic cable holder
Mirror heater
Endoscope heater
Internal LED lighting
Germicidal UV light system
Isolation transformer: 1500 W 230 V 50/60 Hz

Click here to download Catalogue

Features:

Microcomputer controlled,pneumatically driven and electronically controlled.
Pressure, volume controlled treatment ventilator.
Could be applied for pediatric and adult.
100% oxygen fast operation system, make sure to provide pure oxygen at any time.
Easy setting by navigator wheel knob & touch key
5.5" lcd display，very clearly at parameter setting area，monitoring area or alarm area.
Automatic temperature control humidifier system for operation and maintenance easier
Back-up battery
Built-in smart type air compressor

Technical Specifications:

Model NO. - SD-H3000B+

Type - ICU Ventilator Machine

Used for - Adult

O2 Concentration - 21%-100%

Use for - ICU Operating Room

Tidal Volume - 0-2000ml

Min Tidal Volume - 50-1500ml

I:E - 5.0:1~1:5.0

Peep - 0-40cm H2O

Certification - CE, FDA, ISO13485

Trademark - RENDER

Origin - China

HS Code - 9018907000

Click Here To Download Catalogue

Features: Main performance and Technical Index:

Ventilation mode: VCV, PCV, PSV, SIMV(VCV)+PSV, SIMV(PCV)+PSV, MMV, CPAP, Backup apnea.

Air circuit Performance:

Maximum safety pressure of air circuit: no more than 6kpa.
Inspiratory oxygen concentration: 21-100%.

Ventilation Performance:

Respiratory rate (f): 4-99 times / min,
Inspiratory time (Ti): 0.2-6 s,
Breath holding time (Tp): 0-2s,
Triggering pressure (Pt): inspiratory triggering pressure is - 2kpa-0kpa,
Tidal volume (Vt): 0-2000ml;
Maximum minute ventilation volume: not less than 18 L / min.
PSV：0～5 kPa,
Peep Pressure: 0-3kpa,
Inspiratory flow rate: 0-80 L / min.
SIMV frequency: 6-60 times / min,
Inspiratory pressure: 0-6kpa,

Alarm Performance:

Pressure High Limit (Ph) alarm: 2 ~ 6kpa, audible and visual alarm.
Pressure Low Limit (Pl) alarm: 0～2KPa, audible and visual alarm.
Minute ventilation High Limit (Mvh) alarm: audible and visual alarm when ventilation exceeds the set value.
Minute ventilator Low limit (Mvl) alarm: audible and visual alarm when ventilation is lower than the set value.
Power off alarm: Power off alarm immediately, and the alarm duration shall not be less than 120s.
Mute: no more than 2 minutes.

Monitoring Performance:

12.1 inch color LCD
Tidal volume (VT): 0 ～ 2000ml
Measured total frequency (Ftot), Spont. frequency (Fspont)
Minute ventilation (Mv).
I: E ratio.
Airway pressure (PAW).
Peak pressure (Ppeak)
Peep pressure: 0.1 ~ 2KPa
Pressure-Time and Flow-Time waveform

Technical Specifications

Model NO. - SD-H3000A

Type - Ventilator

O2 Concentration - 21%-100%

Use for - ICU Operating Room

Tidal Volume - 0-2000ml

Min Tidal Volume - 50-1500ml

I:E - 5.0:1~1:5.0

Peep - 0-40cm H2O

Kind - Gynaecology

Certification - CE, FDA, ISO13485

Group - Adult

LCD Display - With LCD Display

Trademark - RENDER

Transport Package - Wooden Package

Origin - China

HS Code - 9018907000

Product Details:

Minimum Order Quantity	1 Piece
Model	BT-350
Dimension	80mm (H) X 330mm (L) X 280mm (D)
Application	Hospital
Brand	Bistos
Screen rotating	180 Degree
LCD display	7" wide TFT color LCD display

Product Description:

Up to 150 patients date saving
Fetal heart sound play and record in PC
Multiple language support
Quick guide display
Various installation method

Dual Pulsed Doppler:

Ultrasound Frequency: 0.985MHz
Intensity: 10mW/cm2 or less
FHR Range: 30~240bpm FHR
Accuracy: ±2% of Range
Auto-detection of Dual Fetal Movement
External Type
Frequency Response: DC~0.5HZ
Reference(Zero) Control
Measurement Range: 0~99 units

Printer:

Thermal Array Type
Print Speed: 1,2,3, cm/min, high speed
Auto print: Off,10,20,30,40,50,60 min
Paper Feeding Function

Display:

3 Channels (FHR I, FHR II, UC)
7" Wide TFT-Color LCD:800(W) X 480(H) BT-350LCD
Large 7-segment volume lever LED : BT-350 LED

Function:

Mark Function
FHR II Offset Function
Auto Print function
Fetal movement print function
Multi-language quick guide function: BT-350 LCD

Trend: Data Saving for 450 hours(3hr/person): BT-350 LCD Accessory Standard:

Ultrasound Doppler Probe 2ea
Event Marker Jack 1ea
Power Adaptor Cord 1ea
Probe Belt 3ea

Click Here To Download Catalogue

Mobile ICU Ventilator Features:

Pneumatically driven electric controlled、micro-computer controlled unit.
Operation control panel adopts distinct LED display, easy operation.
High quality humidifier.
Contains high quality tubes、accessories、spare parts

Technical Specification:

Model NO. - SD-H3000B

Type -Ventilator

O2 Concentration - 21%-100%

Use for - ICU Operating Room

Tidal Volume - 0-2000ml

Min Tidal Volume - 50-1500ml

I:E - 5.0:1~1:5.0

Peep - 0-40cm H2O

Certification - CE, FDA, ISO13485

Group - Adult

LCD Display - With LCD Display

Trademark - RENDER

Origin - China

HS Code - 9018907000

Click Here To Download Catalogue

Sonoscape S8 Exp Portable Ultrasound scanner

DETAILS Agile and Versatile With ultra-modern innovative design and the clinically-proven technologies, S8 Exp Portable Ultrasound scanner is well equipped as a low-physical-effort and enhanced-image-quality ultrasound scanner, which not only provides optimized solutions for versatile applications but does help to improve the user experience for both routine and non-traditional challenges. Working with S8 Exp, it will trigger your unlimited reverie and endow you with endless charm. Carrying forward the classical design of SonoScape's portable ultrasound products, S8 Exp successfully combines the best ergonomics, attractive design and ease of use. This charismatic identity is also enhanced by a sophisticated color palette—with sedate grey as its interior paint color and pearl white as exterior cover, S8 Exp reveals a style of aristocrat and strong character among SonoScape's ultrasound systems. Workflow The S8 Exp is a portable ultrasound scanner that adapts to your workflow, whether you are in the consulting room, at the bedside, or at a remote location. With easy-to-use new platform designed for sonographers' needs and full connection interfaces for easy connectivity and data sharing, S8 Exp leads to improved user comfort and clinical outcome as well as patient throughput and working efficiency. Powerful Platform Embedded with SonoScape's core imaging technologies such as μ-scan, PHI and Spatial Compound, S8 Exp boasts exceptional 2D image, sensitive spectral, Color and Power Doppler, displaying well-defined anatomy and pathology and facilitating a highly optimized diagnostic user environment for conclusive diagnoses. Besides, S8 Exp offers a comprehensive selection of electronic probes to maximally extend its capabilities to meet a wide range of applications including the abdomen, pediatric, OB/GYN, cardiovascular, musculoskeletal, etc. The advanced probe technologies also effectively enhance the image quality and confidence in reaching clinical diagnoses even in difficult patients.
